Bosch Rexroth M4 Angle Bracket, Connecting Component, Strut Profile 20 mm, Groove Size 6 mm
- RS 제품 번호:
- 466-7354
- 제조사 부품 번호:
- 3842523511
- 제조업체:
- Bosch Rexroth
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩6,880.80
재고있음
- 1,472 개 단위 배송 준비 완료
- 추가로 다른 지역에서 736 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩6,880.80 |
| 5 + | ₩5,658.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 466-7354
- 제조사 부품 번호:
- 3842523511
- 제조업체:
- Bosch Rexroth
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Bosch Rexroth | |
| Connector Type | Angle Bracket | |
| Product Type | Connecting Component | |
| Compatible Groove Size | 6 mm | |
| Compatible Strut Profile | 20 mm | |
| Thread Size | M4 | |
| Material | Die Cast Aluminium | |
| Structural Element Type | Connector Bracket & Joint | |
| Length | 8mm | |
| Product System | MGE | |
| Standards/Approvals | DIN 7984, RoHS Status:Exempt | |
| 모두 선택 | ||
|---|---|---|
브랜드 Bosch Rexroth | ||
Connector Type Angle Bracket | ||
Product Type Connecting Component | ||
Compatible Groove Size 6 mm | ||
Compatible Strut Profile 20 mm | ||
Thread Size M4 | ||
Material Die Cast Aluminium | ||
Structural Element Type Connector Bracket & Joint | ||
Length 8mm | ||
Product System MGE | ||
Standards/Approvals DIN 7984, RoHS Status:Exempt | ||
제외
- COO (Country of Origin):
- DE

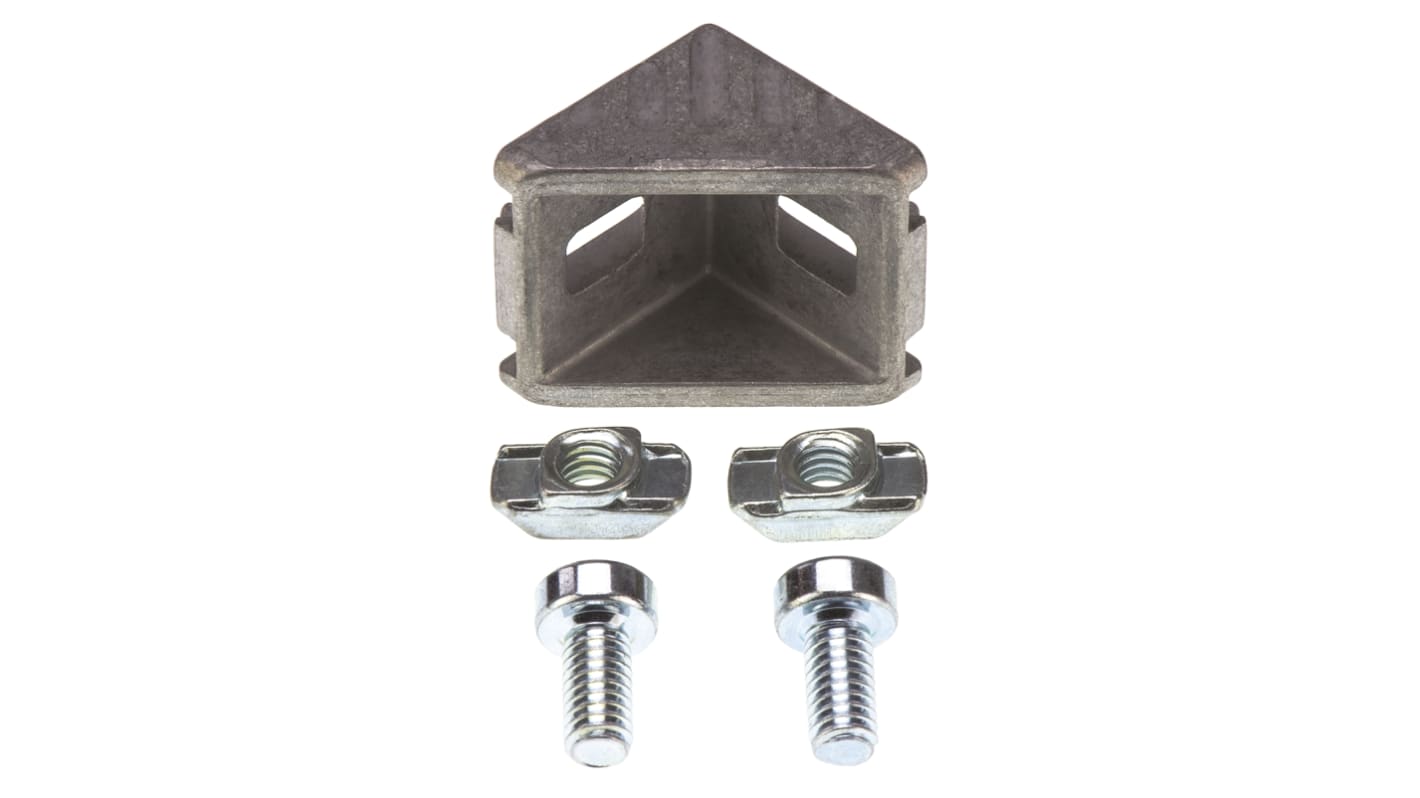

Bosch Rexroth Connecting Component, Angle Bracket Type, Die-Cast Aluminium - MGE Series - 3842523511
Do you need to join structural elements in a racking system? Use this connecting component from Bosch Rexroth. It's an angle bracket type with a 20mm profile, meaning you can attach two struts at 90° to each other. Assembly is easy, thanks to the unit's centering lugs, which ensure it's mounted correctly and won't twist out of position under pressure. You can also remove the lugs easily, depending on the needs of your design. As this bracket weighs just 13g, it won't add bulk to your setup.
Features & Benefits
• Robust die-cast aluminium is corrosion-resistant, to support a long service life in harsh settings
• Widely compatible with M4 threads for straightforward installation
• Unpainted for easy customisation
Applications
• Warehouses
• Factory storage
• Process and packaging industry
What do I need to assemble this connecting component?
Assembly is quick and easy, as the bracket comes complete with collar screws.
