Bosch Rexroth M6 Mounting Bracket, Connecting Component, Strut Profile 40 mm, 45 mm, 50 mm, 60 mm, Groove Size 10mm
- RS 제품 번호:
- 200-7303
- 제조사 부품 번호:
- 3842523532
- 제조업체:
- Bosch Rexroth
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩10,452.80
재고있음
- 158 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 12 | ₩10,452.80 |
| 13 - 24 | ₩10,039.20 |
| 25 + | ₩9,813.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 200-7303
- 제조사 부품 번호:
- 3842523532
- 제조업체:
- Bosch Rexroth
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Bosch Rexroth | |
| Connector Type | Mounting Bracket | |
| Fits Groove Size | 10mm | |
| Fits Strut Profile | 40 mm, 45 mm, 50 mm, 60 mm | |
| Thread Size | M6 | |
| Material | Aluminium, Die Cast Aluminium | |
| Structural Element Type | Connector Bracket & Joint | |
| Length | 30mm | |
| Product Family | Bosch Rexroth | |
| Product System | MGE | |
| 모두 선택 | ||
|---|---|---|
브랜드 Bosch Rexroth | ||
Connector Type Mounting Bracket | ||
Fits Groove Size 10mm | ||
Fits Strut Profile 40 mm, 45 mm, 50 mm, 60 mm | ||
Thread Size M6 | ||
Material Aluminium, Die Cast Aluminium | ||
Structural Element Type Connector Bracket & Joint | ||
Length 30mm | ||
Product Family Bosch Rexroth | ||
Product System MGE | ||
제외
- COO (Country of Origin):
- DE

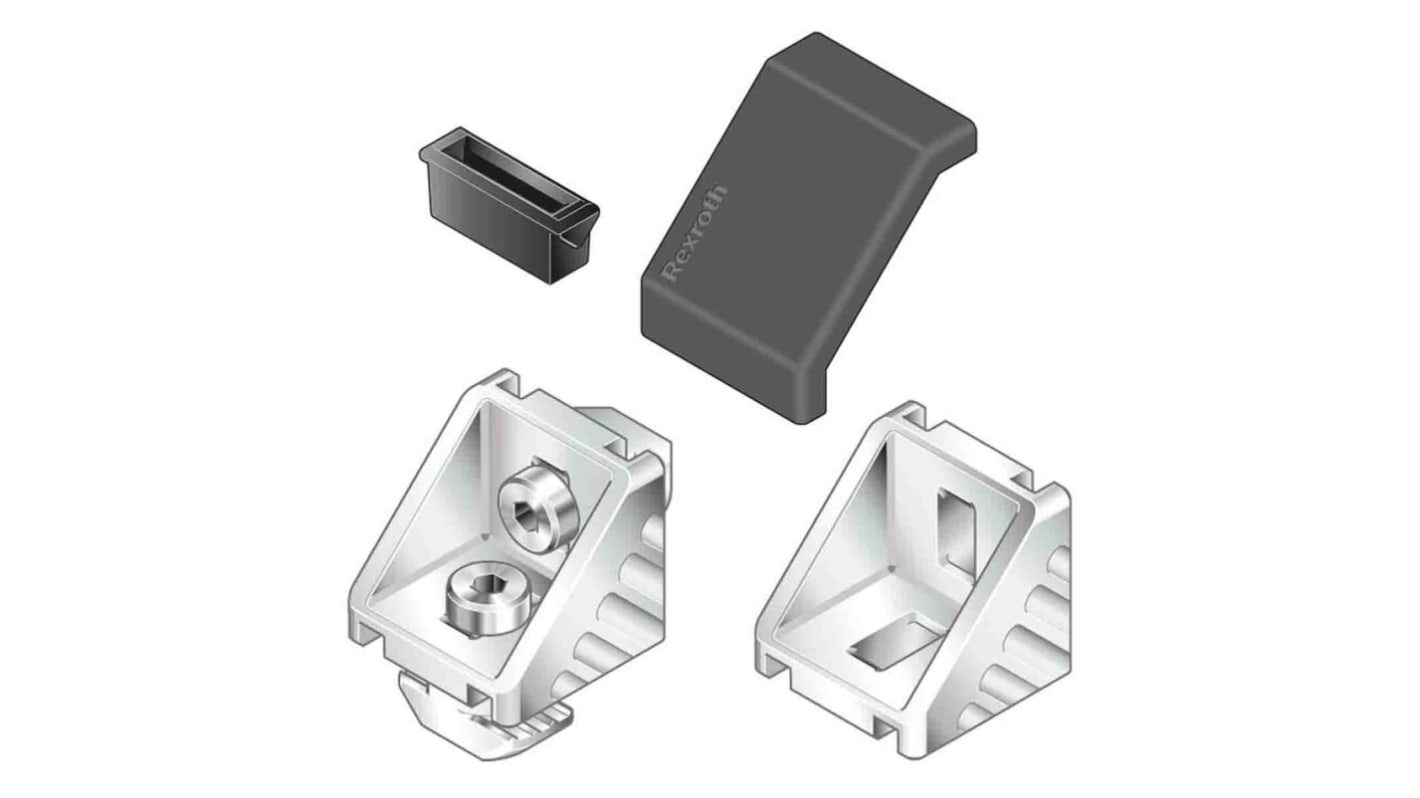

Bosch Rexroth Connecting Component, Mounting Bracket Type, 1,250N Force Rating - 3842523532
Create a right-angled join in your modular structure with this mounting bracket connecting component from Bosch Rexroth. A central mounting lug stops the unit from twisting and turning during assembly and keeps your frame pointing in the right direction. Compatibility with standard 10mm grooves makes this a versatile option. As the bracket handles forces up to 1,250N, it's a safe bet for carrying everyday loads.
• Die-cast aluminium body resists corrosion, so it's tough enough for use in damp environments
• ESD-safe, meaning there's no risk of static discharge damaging any nearby electronic devices
• ESD-safe, meaning there's no risk of static discharge damaging any nearby electronic devices
Applications
• Packing plants
• Fulfilment centres
• Heavy engineering
• Fulfilment centres
• Heavy engineering
The Bosch Rexroth bracket 30/30 with centering lugs for rapid, precise assembly and protection against turning. It has centering lugs that can be easily broken off for assembly on plates or at right angles to the slot.
Do I need to supply my own fasteners to mount this bracket?
Cover cap to protect from dirt
Available signals are grey (RAL 7004) and black ESD (RAL 9005)
Profile finishing is not required
Version designLINE with special silver paint
Available signals are grey (RAL 7004) and black ESD (RAL 9005)
Profile finishing is not required
Version designLINE with special silver paint
No, this unit comes with fasteners, so it's ready to mount out of the box.
