Kopex, 10 mm Nominal Diameter, Uncoated, Stainless Steel, Metal
- RS 제품 번호:
- 852-407
- 제조사 부품 번호:
- KSU0105
- 제조업체:
- Kopex
대량 구매 할인 기용 가능
Subtotal (1 reel of 5 metres)*
₩103,623.00
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
릴당 | 릴당 | 미터당* |
|---|---|---|
| 1 - 49 | ₩103,623.00 | ₩20,724.60 |
| 50 + | ₩98,787.00 | ₩19,757.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 852-407
- 제조사 부품 번호:
- KSU0105
- 제조업체:
- Kopex
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Kopex | |
| Nominal Diameter | 10mm | |
| Product Type | Conduit | |
| Coating Material | Uncoated | |
| Material | Stainless Steel | |
| Series | KSU | |
| Colour | Metal | |
| Length | 5m | |
| IP Rating | IP40 | |
| Resistance Features | UV Resistant, Flame Resistant, Fire Resistant | |
| Minimum Operating Temperature | -50°C | |
| Maximum Operating Temperature | 350°C | |
| Standards/Approvals | Low Voltage Directive, BSI Kitemark KM-90009, BS EN 61386 | |
| Hazardous Area Certification | NO | |
| Minimum Bend Radius | 30mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Kopex | ||
Nominal Diameter 10mm | ||
Product Type Conduit | ||
Coating Material Uncoated | ||
Material Stainless Steel | ||
Series KSU | ||
Colour Metal | ||
Length 5m | ||
IP Rating IP40 | ||
Resistance Features UV Resistant, Flame Resistant, Fire Resistant | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature 350°C | ||
Standards/Approvals Low Voltage Directive, BSI Kitemark KM-90009, BS EN 61386 | ||
Hazardous Area Certification NO | ||
Minimum Bend Radius 30mm | ||
- COO (Country of Origin):
- GB

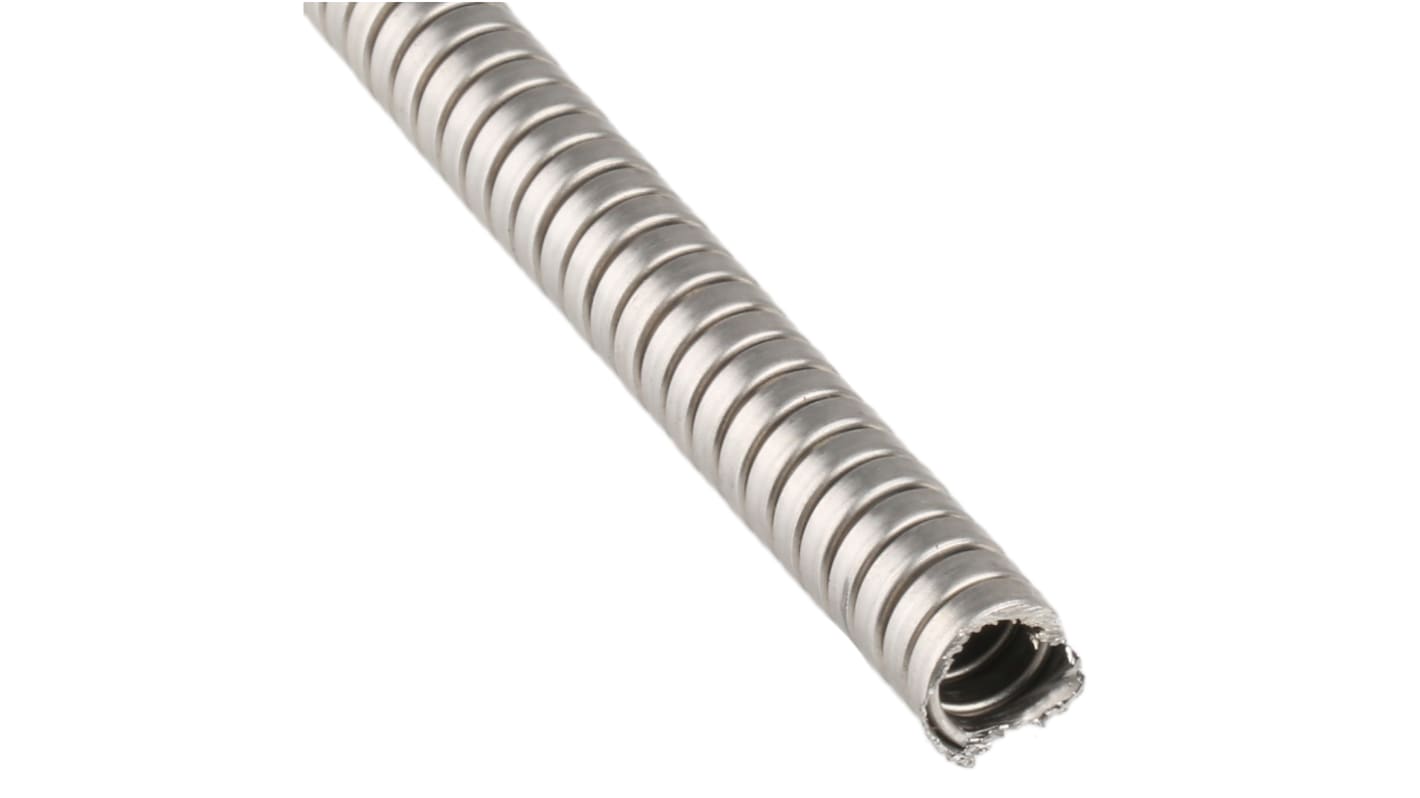

Kopex Stainless Steel Flexible Conduit, 5m Length, 9.6mm OD - KSU Series - KSU0105
Choose this flexible conduit from Kopex for cable protection in corrosive industrial settings. The unit's steel construction makes it durable and resistant to rust, so you can rely on it for long-term performance. Thanks to a static bending radius of 30mm, it's flexible enough to be installed around corners. It has a high-temperature tolerance range of -50°C to +350°C so can be used in harsh thermal extremes. Thanks to an IP40 (ingress protection) rating, you can be sure this conduit can withstand tools and objects greater than 1mm in size.
Features & Benefits
• Compact outer diameter of 9.6mm for space efficiency in small enclosures
• Chemical resistant for use in hazardous areas
• Tensile strength of 1250N for crush resistance in heavy-duty applications
• Conduit length of 5m provides an ample supply for mid-sized cable runs
• High UV resistance to withstand degradation from exposure to sunlight
Applications
• Marine industry
• Metal workshops
• Mining equipment
What's the weight of this conduit?
This conduit has a light weight of 9.5kg/100m, so it's easy to handle and won't put strain on your equipment.
