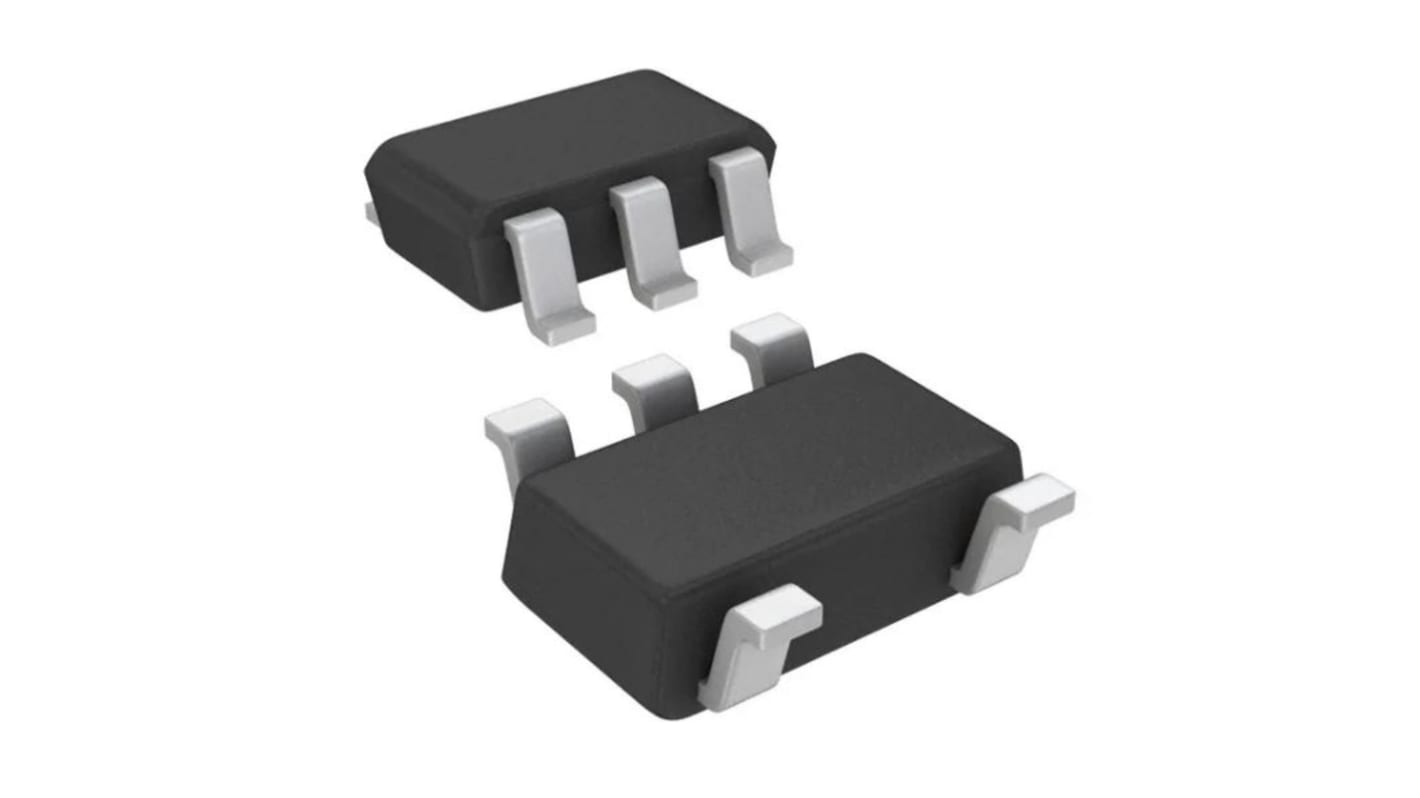

TS391RILT STMicroelectronics, Comparator, 300ns 2 → 36 V 5-Pin SOT23-5
- RS 제품 번호:
- 239-6361
- 제조사 부품 번호:
- TS391RILT
- 제조업체:
- STMicroelectronics
대량 구매 할인 기용 가능
Subtotal (1 pack of 10 units)*
₩6,486.00
재고있음
- 2,350 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 10 - 10 | ₩648.60 | ₩6,486.00 |
| 20 - 90 | ₩635.44 | ₩6,354.40 |
| 100 - 240 | ₩620.40 | ₩6,204.00 |
| 250 - 490 | ₩609.12 | ₩6,091.20 |
| 500 + | ₩597.84 | ₩5,978.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 239-6361
- 제조사 부품 번호:
- TS391RILT
- 제조업체:
- STMicroelectronics
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | STMicroelectronics | |
| Comparator Type | Low Power Single Voltage | |
| Mounting Type | Surface Mount | |
| Package Type | SOT23-5 | |
| Power Supply Type | Single | |
| Typical Response Time | 300ns | |
| Pin Count | 5 | |
| Typical Single Supply Voltage | 2 → 36 V | |
| 모두 선택 | ||
|---|---|---|
브랜드 STMicroelectronics | ||
Comparator Type Low Power Single Voltage | ||
Mounting Type Surface Mount | ||
Package Type SOT23-5 | ||
Power Supply Type Single | ||
Typical Response Time 300ns | ||
Pin Count 5 | ||
Typical Single Supply Voltage 2 → 36 V | ||
The STMicroelectronics Voltage comparator device is designed specifically to operate from a single supply over a wide range of voltages. This comparator comes with a unique characteristic where the input common-mode voltage range includes ground.
Wide single supply voltage range or dual supplies - 2 V to 36 V or ± 1 V to ± 18 V
Very low supply current of 0.2 mA independent of supply voltage 1 mW / comparator at 5 V
Low input bias current of 25 nA typical
Low input offset current of ± 5 nA typical
Input common-mode voltage range includes ground
Low output saturation voltage of 250 mV typical Io= 4 mA
TTL, DTL, ECL, CMOS compatible outputs
Very low supply current of 0.2 mA independent of supply voltage 1 mW / comparator at 5 V
Low input bias current of 25 nA typical
Low input offset current of ± 5 nA typical
Input common-mode voltage range includes ground
Low output saturation voltage of 250 mV typical Io= 4 mA
TTL, DTL, ECL, CMOS compatible outputs
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
