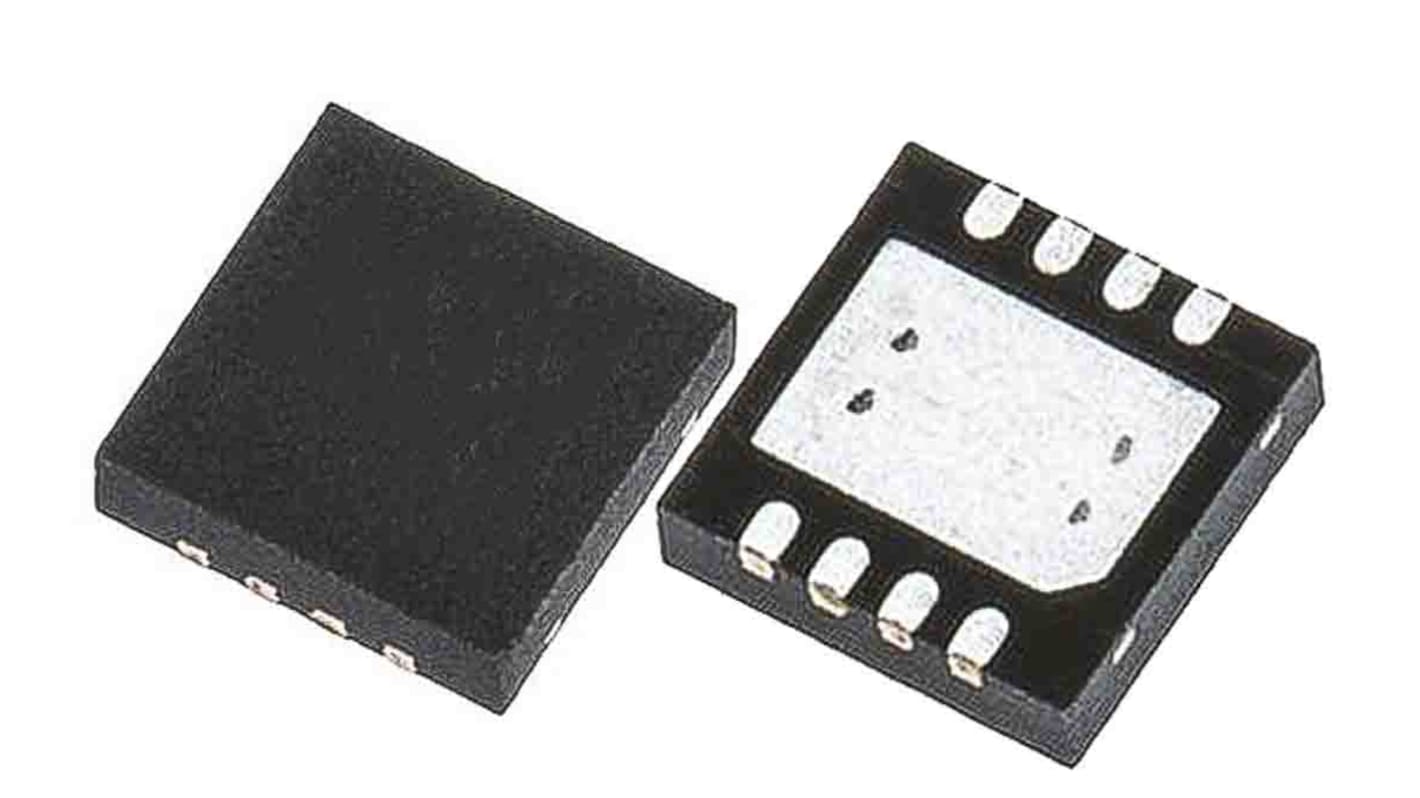

LM2903Q2T STMicroelectronics, Dual Comparator, CMOS/TTL O/P, O/P, 1.3μs 2 → 36 V 8-Pin DFN
- RS 제품 번호:
- 189-1952
- 제조사 부품 번호:
- LM2903Q2T
- 제조업체:
- STMicroelectronics
Subtotal (1 pack of 50 units)*
₩17,578.00
일시적 품절
- 2026년 3월 13일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 50 + | ₩351.56 | ₩17,540.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 189-1952
- 제조사 부품 번호:
- LM2903Q2T
- 제조업체:
- STMicroelectronics
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | STMicroelectronics | |
| Comparator Type | Low Power | |
| Mounting Type | Surface Mount | |
| Package Type | DFN | |
| Power Supply Type | Dual, Single | |
| Output Type | CMOS, DTL, ECL, MOS, TTL | |
| Number of Channels per Chip | 2 | |
| Typical Response Time | 1.3µs | |
| Pin Count | 8 | |
| Typical Single Supply Voltage | 2 → 36 V | |
| Dimensions | 2.05 x 2.05 x 0.7mm | |
| Length | 2.05mm | |
| Width | 2.05mm | |
| Height | 0.7mm | |
| Typical Dual Supply Voltage | ±1 to ±18V | |
| Typical Voltage Gain | 200 V/mV | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +125 °C | |
| 모두 선택 | ||
|---|---|---|
브랜드 STMicroelectronics | ||
Comparator Type Low Power | ||
Mounting Type Surface Mount | ||
Package Type DFN | ||
Power Supply Type Dual, Single | ||
Output Type CMOS, DTL, ECL, MOS, TTL | ||
Number of Channels per Chip 2 | ||
Typical Response Time 1.3µs | ||
Pin Count 8 | ||
Typical Single Supply Voltage 2 → 36 V | ||
Dimensions 2.05 x 2.05 x 0.7mm | ||
Length 2.05mm | ||
Width 2.05mm | ||
Height 0.7mm | ||
Typical Dual Supply Voltage ±1 to ±18V | ||
Typical Voltage Gain 200 V/mV | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +125 °C | ||
This device consists of two independent low-power voltage comparators designed specifically to operate from a single supply over a wide range of voltages. Operation from split power supplies is also possible. In addition, the device has a unique characteristic in that the input common-mode voltage range includes the negative rail even though operated from a single power supply voltage.
Wide single supply voltage range or dual supplies +2 V to +36 V or ±1 V to ±18 V
Very low supply current (0.4 mA) independent of supply voltage (1 mW/comparator at +5 V)
Low input bias current: 25 nA typ.
Low input offset current: ±5 nA typ.
Input common-mode voltage range includes negative rail
Low output saturation voltage: 250 mV typ. (IO= 4 mA)
Differential input voltage range equal to the supply voltage
TTL, DTL, ECL, MOS, CMOS compatible outputs
Related products
See LM2903W for similar device with higher ESD performances
See LM2903H for similar device with operating temperature up to 150 °C
Very low supply current (0.4 mA) independent of supply voltage (1 mW/comparator at +5 V)
Low input bias current: 25 nA typ.
Low input offset current: ±5 nA typ.
Input common-mode voltage range includes negative rail
Low output saturation voltage: 250 mV typ. (IO= 4 mA)
Differential input voltage range equal to the supply voltage
TTL, DTL, ECL, MOS, CMOS compatible outputs
Related products
See LM2903W for similar device with higher ESD performances
See LM2903H for similar device with operating temperature up to 150 °C
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
