LM2901BYQ5T STMicroelectronics 4-Channel Comparator Current/Voltage O/P, 1000 ns 36 V 2 V 16-Pin QFN-16
- RS 제품 번호:
- 276-908
- 제조사 부품 번호:
- LM2901BYQ5T
- 제조업체:
- STMicroelectronics

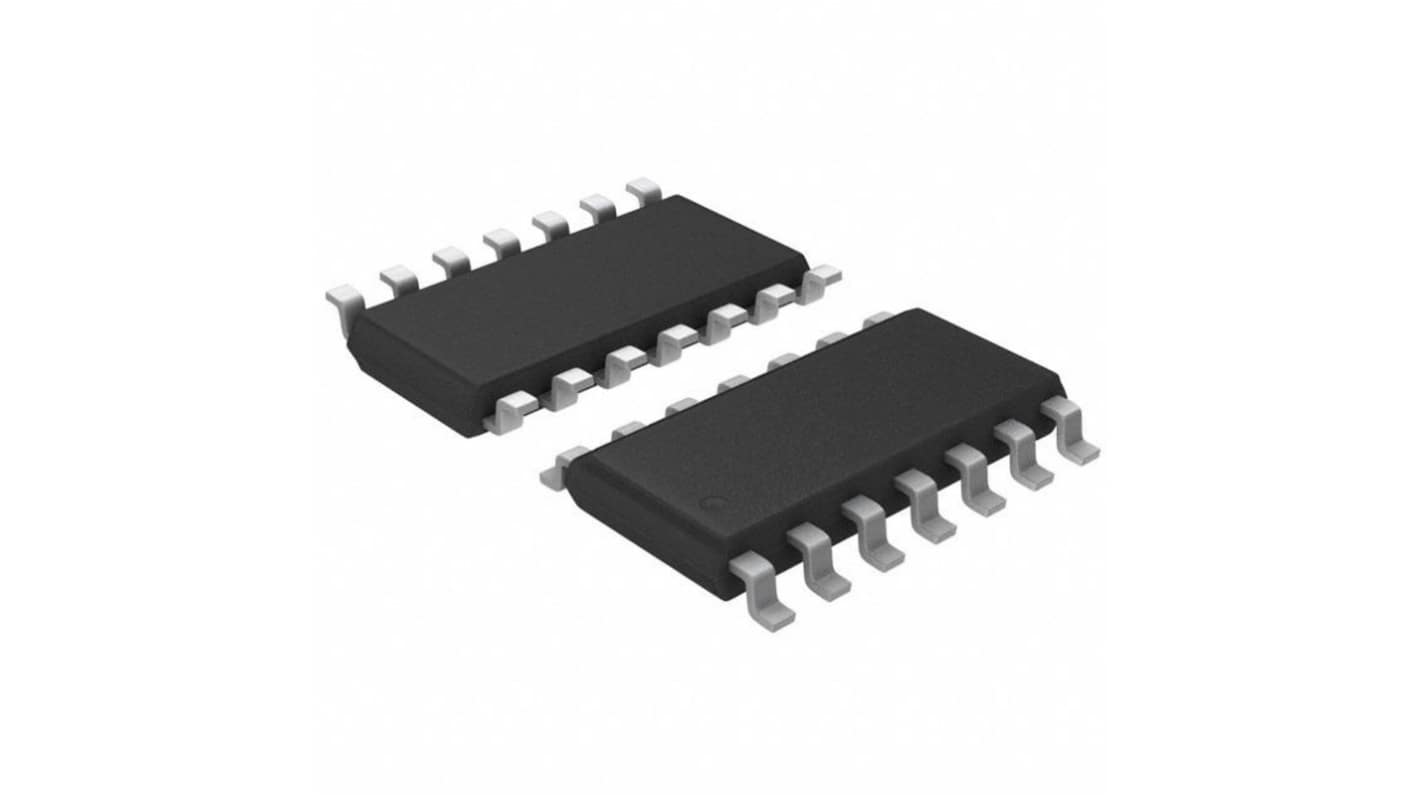

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 tape of 10 units)*
₩16,243.20
재고있음
- 270 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | Per Tape* |
|---|---|---|
| 10 - 90 | ₩1,624.32 | ₩16,243.20 |
| 100 - 240 | ₩1,543.48 | ₩15,434.80 |
| 250 - 490 | ₩1,428.80 | ₩14,288.00 |
| 500 - 990 | ₩1,316.00 | ₩13,160.00 |
| 1000 + | ₩1,267.12 | ₩12,671.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 276-908
- 제조사 부품 번호:
- LM2901BYQ5T
- 제조업체:
- STMicroelectronics
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | STMicroelectronics | |
| Product Type | Comparator | |
| Comparator Type | Quad Comparator | |
| Mount Type | Surface | |
| Package Type | QFN-16 | |
| Output Type | Current/Voltage | |
| Number of Channels | 4 | |
| Typical Response Time | 1000ns | |
| Pin Count | 16 | |
| Maximum Supply Voltage | 36V | |
| Minimum Supply Voltage | 2V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Series | LM2901 | |
| Standards/Approvals | ECOPACK, RoHS | |
| Automotive Standard | AEC-Q100 | |
| Supply Current | 1mA | |
| 모두 선택 | ||
|---|---|---|
브랜드 STMicroelectronics | ||
Product Type Comparator | ||
Comparator Type Quad Comparator | ||
Mount Type Surface | ||
Package Type QFN-16 | ||
Output Type Current/Voltage | ||
Number of Channels 4 | ||
Typical Response Time 1000ns | ||
Pin Count 16 | ||
Maximum Supply Voltage 36V | ||
Minimum Supply Voltage 2V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Series LM2901 | ||
Standards/Approvals ECOPACK, RoHS | ||
Automotive Standard AEC-Q100 | ||
Supply Current 1mA | ||
- COO (Country of Origin):
- TH
The STMicroelectronics Low power quad voltage comparator consists of four independent low power voltage comparators which designed specifically to operate from a single supply over a wide range of voltages. It is fully specified at 5 V and 36 V single supply voltage operation, however operation from dual power supplies is also possible. The B-grade version of the LM2901 comparators offers an increased maximum operating voltage of 40 V and improved electrical characteristics.
AEC-Q100 qualified
Wide single supply voltage range
Input voltage range can exceed the positive supply voltage
TTL DTL ECL MOS and CMOS compatible outputs
