제조사부품번호

STMicroelectronics 4-Channel Comparator CMOS, ECL, MOS, DTL, TTL O/P, 300 ns 36 V 2 V 14-Pin TSSOP-14

RS 제품 번호:: 152-235
제조사 부품 번호:: LM239PT
제조업체:: STMicroelectronics

STMicroelectronics 4-Channel Comparator CMOS, ECL, MOS, DTL, TTL O/P, 300 ns 36 V 2 V 14-Pin TSSOP-14

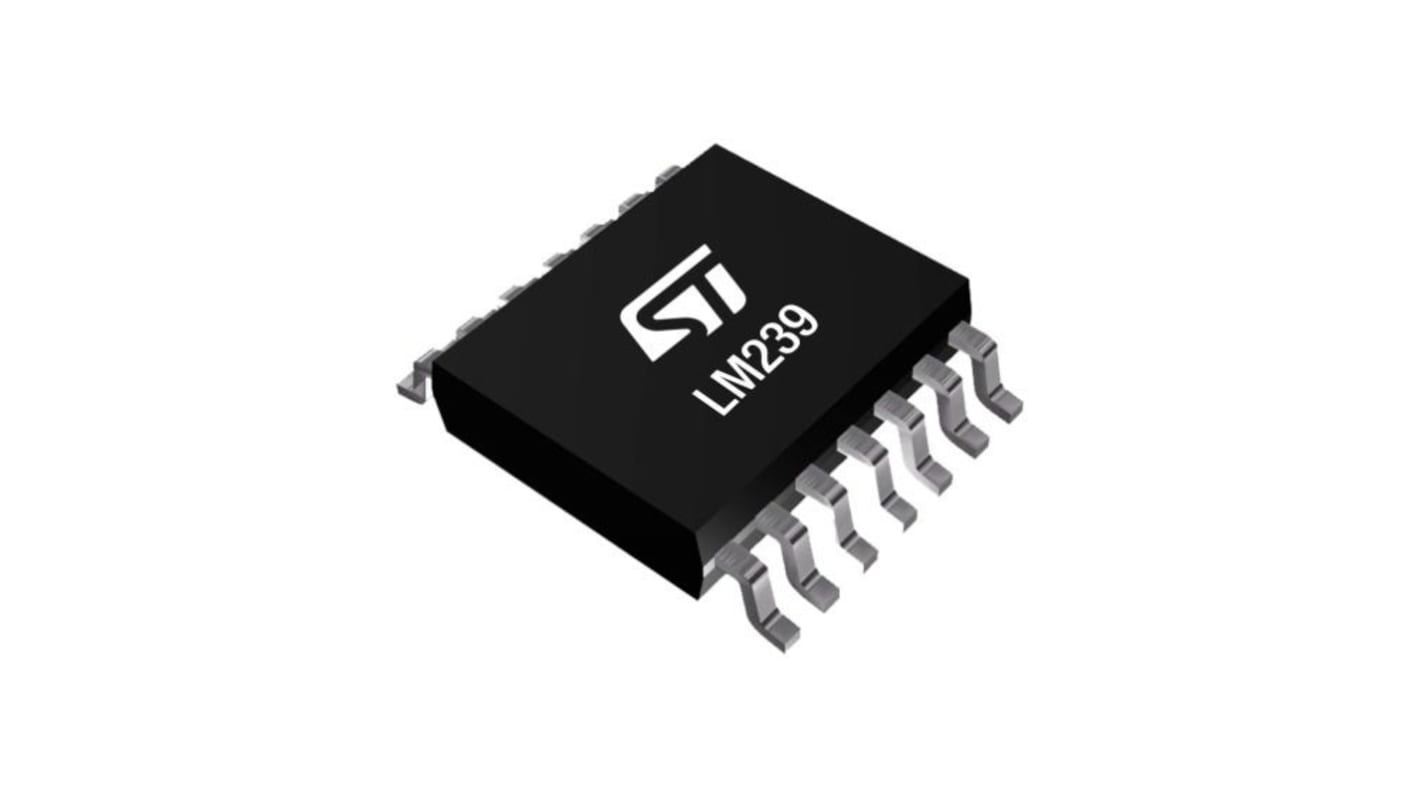

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

Subtotal (1 reel of 2500 units)*

₩371,300.00

재고있음

2,500 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	릴당*
2500 +	₩148.52	₩373,180.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 152-235
제조사 부품 번호:: LM239PT
제조업체:: STMicroelectronics

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	STMicroelectronics
	Comparator Type	Low Power
	Product Type	Comparator
	Mount Type	Surface
	Package Type	TSSOP-14
	Output Type	CMOS, ECL, MOS, DTL, TTL
	Number of Channels	4
	Typical Response Time	300ns
	Pin Count	14
	Minimum Supply Voltage	2V
	Maximum Supply Voltage	36V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	105°C
	Standards/Approvals	RoHS
	Width	1.05 mm
	Length	4.5mm
	Series	LM239
	Height	5mm
	Automotive Standard	No
	Supply Current	2.5mA

	모두 선택
	브랜드 STMicroelectronics
	Comparator Type Low Power
	Product Type Comparator
	Mount Type Surface
	Package Type TSSOP-14
	Output Type CMOS, ECL, MOS, DTL, TTL
	Number of Channels 4
	Typical Response Time 300ns
	Pin Count 14
	Minimum Supply Voltage 2V
	Maximum Supply Voltage 36V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 105°C
	Standards/Approvals RoHS
	Width 1.05 mm
	Length 4.5mm
	Series LM239
	Height 5mm
	Automotive Standard No
	Supply Current 2.5mA

Datasheet - LM239PT

COO (Country of Origin):: CN

The STMicroelectronics Low power quad voltage comparator consists of four independent precision voltage comparators. Each comparator has been designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible. These comparators also have a unique characteristic in that the input common mode voltage range includes ground even though operated from a single power supply voltage.

Input common mode voltage range includes ground

Low output saturation voltage

Differential input voltage range equal to the supply voltage

STMicroelectronics 4-Channel Comparator CMOS, ECL, MOS, DTL, TTL O/P, 300 ns 36 V 2 V 14-Pin TSSOP-14
