LM339QT STMicroelectronics 4-Channel Comparator ECL, DTL, TTL, MOS, CMOS O/P, 300 ns 36 V 2 V 16-Pin QFN-16

RS 제품 번호:: 151-359
제조사 부품 번호:: LM339QT
제조업체:: STMicroelectronics

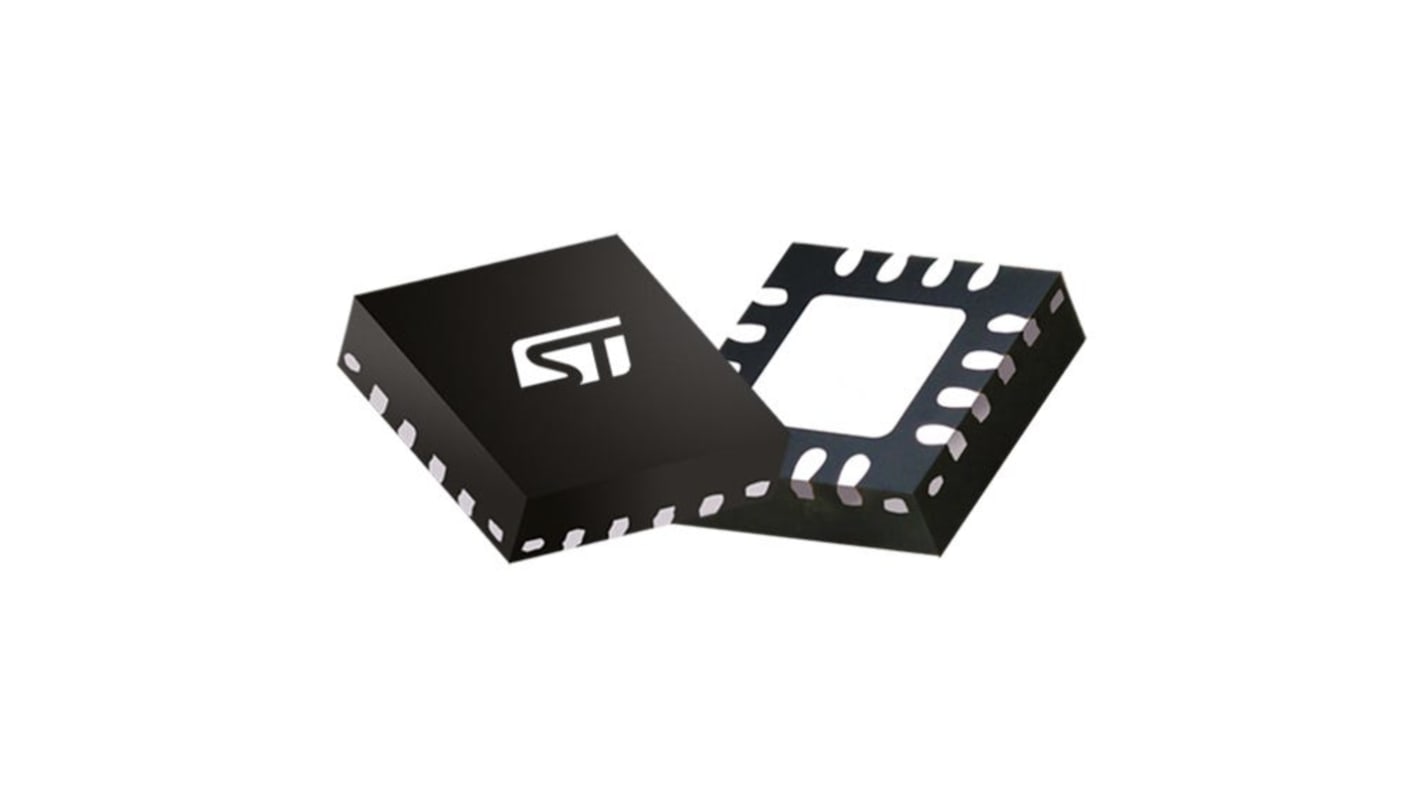

LM339QT STMicroelectronics 4-Channel Comparator ECL, DTL, TTL, MOS, CMOS O/P, 300 ns 36 V 2 V 16-Pin QFN-16

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

Subtotal (1 reel of 3000 units)*

₩727,560.00

재고있음

9,000 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	릴당*
3000 +	₩242.52	₩726,996.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 151-359
제조사 부품 번호:: LM339QT
제조업체:: STMicroelectronics

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	STMicroelectronics
	Comparator Type	Low Power
	Product Type	Comparator
	Mount Type	Surface
	Package Type	QFN-16
	Output Type	ECL, DTL, TTL, MOS, CMOS
	Number of Channels	4
	Typical Response Time	300ns
	Pin Count	16
	Maximum Supply Voltage	36V
	Minimum Supply Voltage	2V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	105°C
	Series	LM339
	Length	3.1mm
	Height	3.1mm
	Width	1 mm
	Standards/Approvals	RoHS
	Supply Current	1.1mA
	Automotive Standard	No

	모두 선택
	브랜드 STMicroelectronics
	Comparator Type Low Power
	Product Type Comparator
	Mount Type Surface
	Package Type QFN-16
	Output Type ECL, DTL, TTL, MOS, CMOS
	Number of Channels 4
	Typical Response Time 300ns
	Pin Count 16
	Maximum Supply Voltage 36V
	Minimum Supply Voltage 2V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 105°C
	Series LM339
	Length 3.1mm
	Height 3.1mm
	Width 1 mm
	Standards/Approvals RoHS
	Supply Current 1.1mA
	Automotive Standard No

Datasheet - LM339QT

COO (Country of Origin):: MY

The STMicroelectronics Low power quad voltage comparator consists of four independent precision voltage comparators with an offset voltage specification as low as 2 mV. This comparator is designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible.

Very low supply current independent of supply voltage

Input common mode voltage range includes ground

Low output saturation voltage

Differential input voltage range equal to the supply voltage

TTL and DTL compatible outputs

MOS and CMOS compatible outputs
