Microchip ATSAMA5D27-WLSOM1 Evaluation Kit ATSAMA5D27-WLSOM1, ATSAMA5D27C-LD2G Bluetooth Development Kit for

본 제품군 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩407,433.60

Add to Basket
수량 선택 또는 입력
재고있음
  • 11 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩407,433.60
5 +₩399,293.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
201-7018
제조사 부품 번호:
DM320117
제조업체:
Microchip
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Microchip

RF Technology

Bluetooth

Classification

Evaluation Kit

Kit Classification

Development Kit

For Use With

SAMA5D27-WLSOM1, SAMA5D27C-LD2G

Featured Device

ATSAMA5D27-WLSOM1, ATSAMA5D27C-LD2G

Frequency

500MHz

Kit Name

ATSAMA5D27-WLSOM1 Evaluation Kit

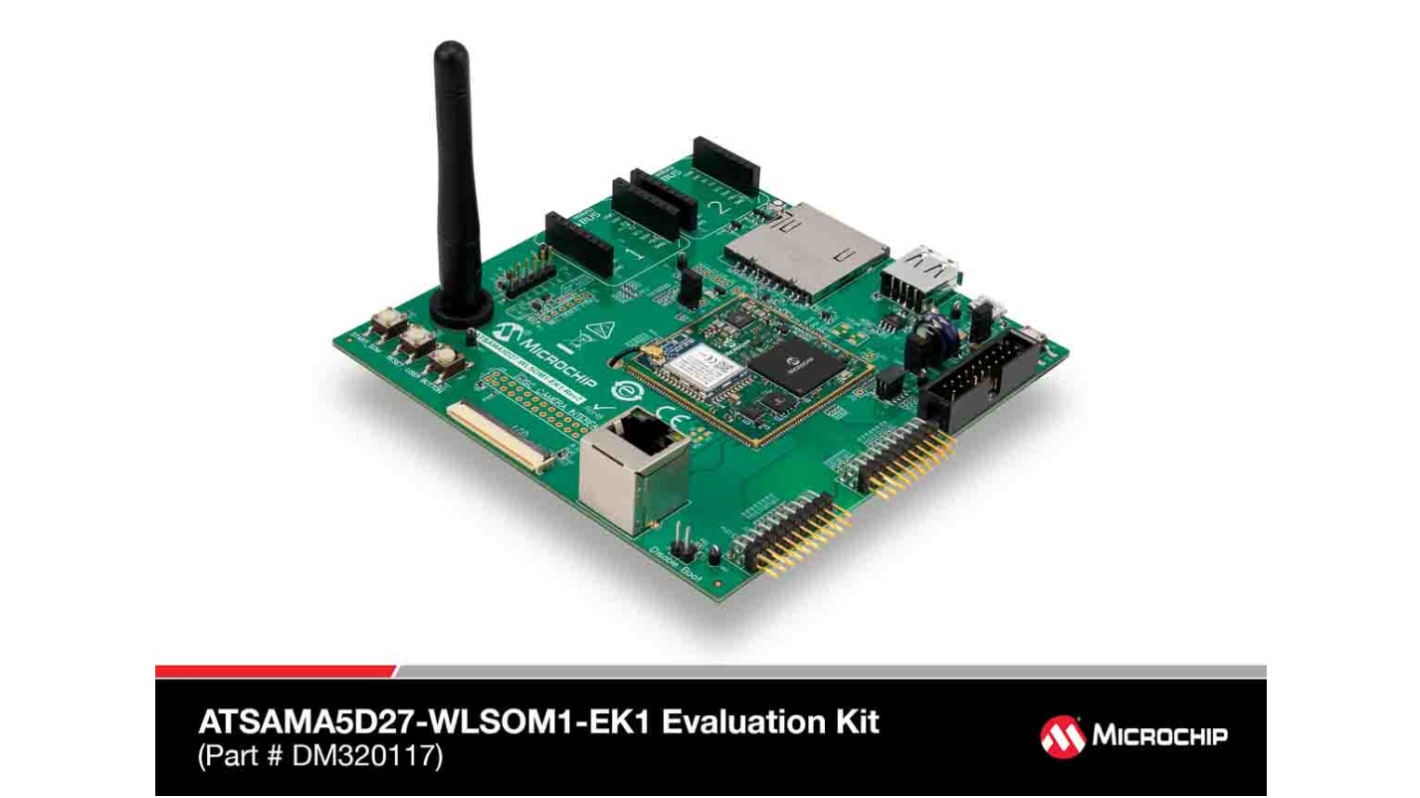

The Microchip ATSAMA5D27-WLSOM1 is an evaluation kit which is ideal for evaluating and prototyping with the SAMA5D27-WLSOM1, which is a wireless System On Module (SOM) and the SAMA5D27C-LD2G, LPDDR2 which is a System In Package (SIP). It is made of a baseboard with ATSAMA5D27-WLSOM1 SOM soldered on the ATSAMA5D27C-LD2G SIP. The evaluation kit also integrates a 2-Gbit LPDDR2SDRAM, a Wi-Fi®/Bluetooth® module, a Secure Element device, a Power Management IC (PMIC), a QSPI memory. It also consists of a 10/100 Mbps Ethernet PHY. 94 GPIO pins are provided by the SOM for general use in the system.

Features a wide range of peripherals, as well as a user interface
Supported by mainline Linux distribution as well as bare metal software frameworks
Connectors and expansion headers present allows for easy customization and quick access to leading edge embedded features

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
