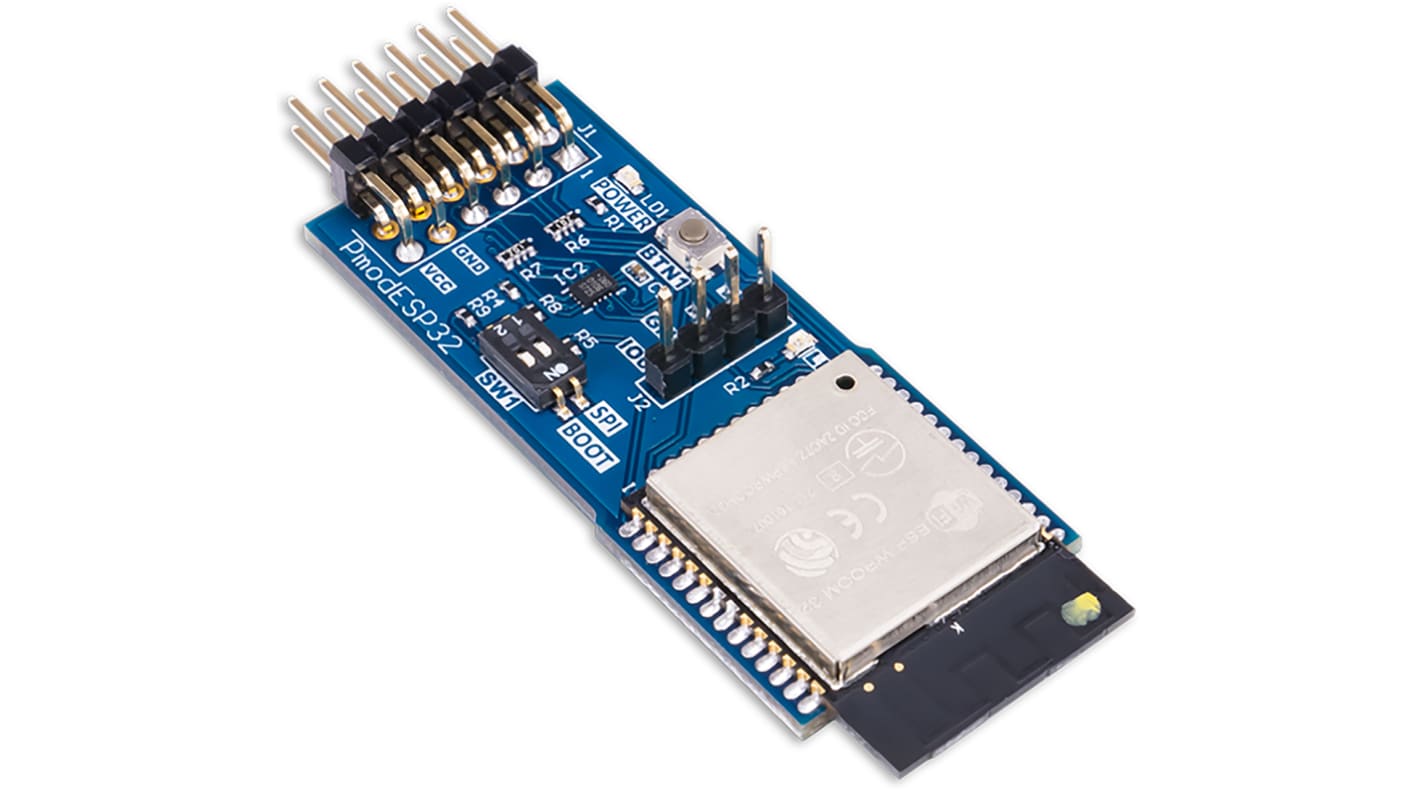

Digilent Pmod ESP32 ESP-WROOM-32 WiFi Module for Digilent system board 100 MHz 410-377

본 제품군 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
RS 제품 번호:
184-0479
Distrelec 제품 번호:
301-33-454
제조사 부품 번호:
410-377
제조업체:
Digilent
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Digilent

RF Technology

WiFi

Kit Classification

Module

Product Type

Communication & Wireless Development Tool

Technology

Pmod

For Use With

Digilent system board

Featured Device

ESP-WROOM-32

Kit Name

Pmod ESP32

Maximum Frequency

100MHz

Interface Type

UART, SPI

Standards/Approvals

LVTTL 3.3 V, I2C specification, LVCMOS 3.3 V

The Pmod ESP32 provides an easy and cost effective way to add wireless communication to any host platform or project. It uses the fully certified ESP-WROOM-32 Wi-Fi + BLE + BT module from Espress if Systems. It is suitable for a wide variety of applications, from low-power sensor networks to more demanding tasks such as music streaming. The Pmod form factor is perfect for quickly turning your board into a powerful IoT platform using the pre-loaded AT command firmware, or for evaluating the ESP32 radio itself. The ESP-WROOM-32 can be used successfully as a peripheral or as a standalone device. Support Materials. This product was designed in collaboration with Renesas Synergy and is supported in the Renesas Synergy Platform.

Wi-Fi, Bluetooth LE, and Bluetooth communication available

20.5 dBm output power at the antenna

User button for resetting the processor after a mode switch

User switch for toggling between UART and SPI communication

Low power sleep mode for battery powered applications

12-pin Pmod connector with SPI and UART interfaces

Follows Digilent Pmod Interface Specification Types 2A and 3A
