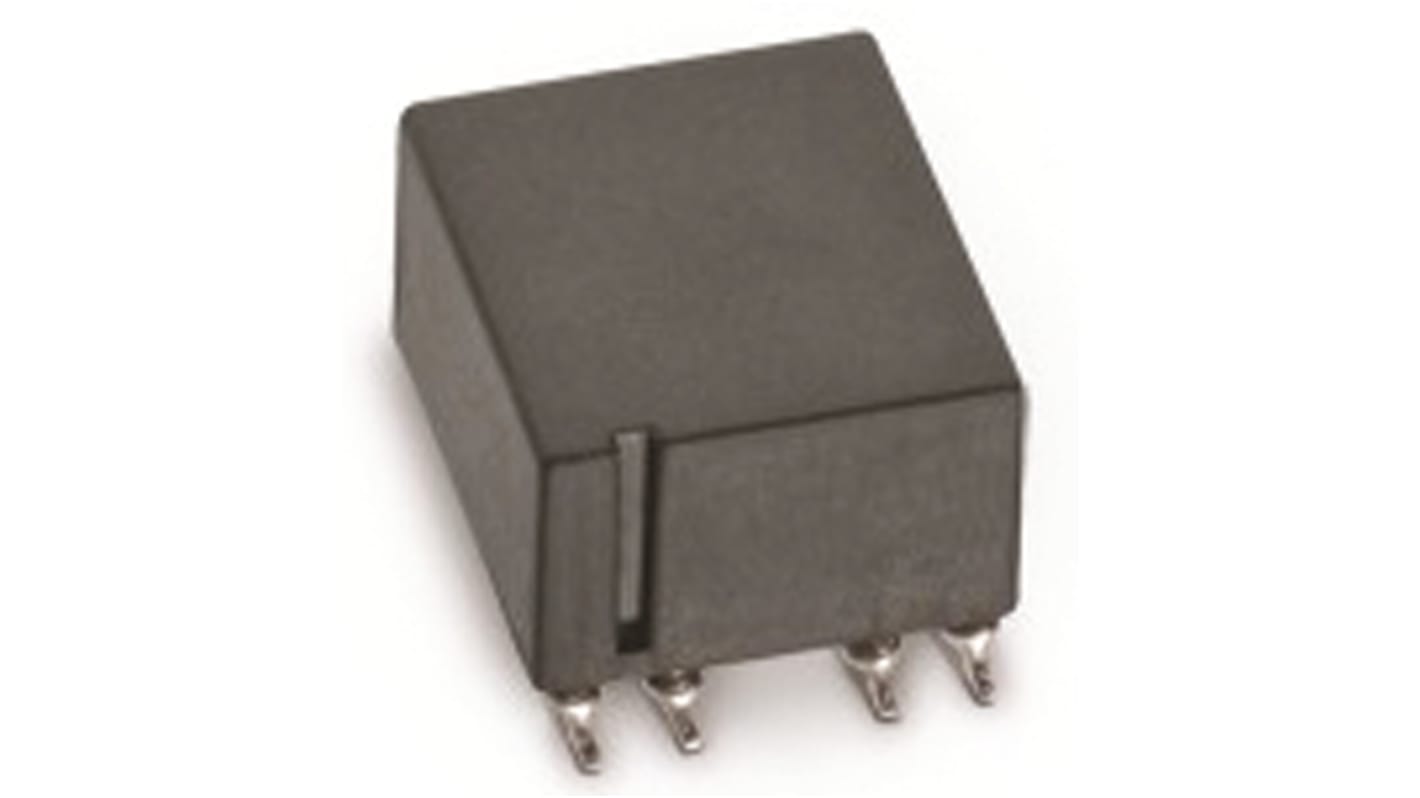

Wurth Elektronik 1.5 mH 1.5 A Common Mode Filter 0.12 Ω 80V
- RS 제품 번호:
- 816-4880
- Distrelec 제품 번호:
- 301-88-204
- 제조사 부품 번호:
- 744290152
- 제조업체:
- Wurth Elektronik
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 비가용
죄송합니다. 언제 재입고될지 모릅니다.
- RS 제품 번호:
- 816-4880
- Distrelec 제품 번호:
- 301-88-204
- 제조사 부품 번호:
- 744290152
- 제조업체:
- Wurth Elektronik
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Wurth Elektronik | |
| Inductance | 1.5mH | |
| Product Type | Common Mode Filter | |
| Maximum DC Current | 1.5A | |
| Series | WE-UCF | |
| Core Material | Ferrite | |
| Test Frequency | 50Hz | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Number of Lines | 2 | |
| Automotive Standard | No | |
| Mount Type | Axial | |
| Choke Voltage | 80V | |
| Inductance Tolerance | -30 to 50 % | |
| Standards/Approvals | REACH, RoHS | |
| Length | 14mm | |
| Termination Style | Solder Pad | |
| Maximum DC Resistance | 0.12Ω | |
| Depth | 12.5mm | |
| Height | 7.8mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Wurth Elektronik | ||
Inductance 1.5mH | ||
Product Type Common Mode Filter | ||
Maximum DC Current 1.5A | ||
Series WE-UCF | ||
Core Material Ferrite | ||
Test Frequency 50Hz | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Number of Lines 2 | ||
Automotive Standard No | ||
Mount Type Axial | ||
Choke Voltage 80V | ||
Inductance Tolerance -30 to 50 % | ||
Standards/Approvals REACH, RoHS | ||
Length 14mm | ||
Termination Style Solder Pad | ||
Maximum DC Resistance 0.12Ω | ||
Depth 12.5mm | ||
Height 7.8mm | ||
- COO (Country of Origin):
- CN
Wurth WE-UCF SMD Common Mode Line Filter
WE-UCF series Common Mode Line Filters in a Low profile Compact SMT package. Available in high inductance and current values, the WE-UCF series is suitable for filtering a wide spectrum range with applications including:- Filtering; DC power lines; Buck-/ Boost Converter filtering; Data lines with low bitrate
Wurth Non Standard SMT Inductors (Chokes)
