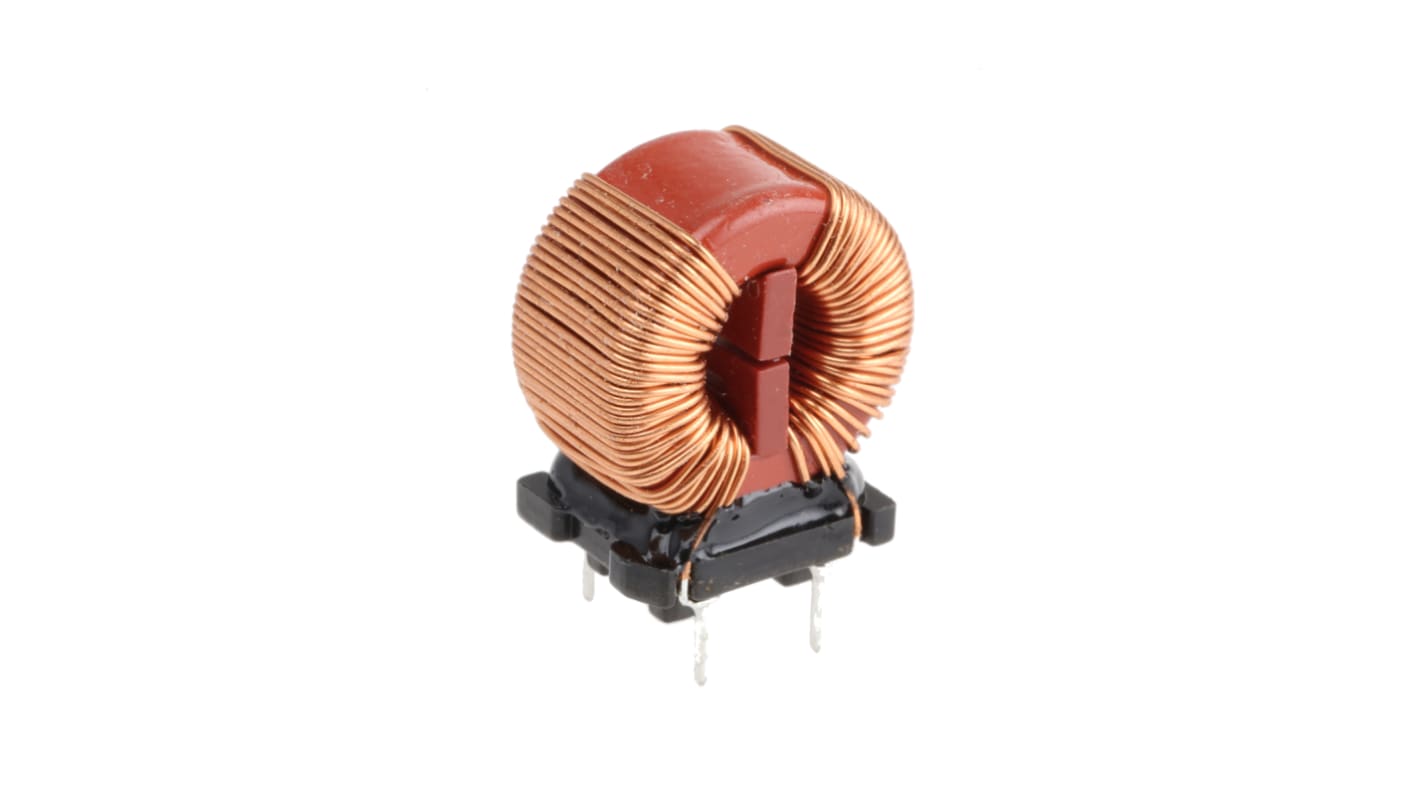

Wurth Elektronik 10 mH 2 A Common Mode Choke 125 mΩ 230V

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Common Mode Chokes 열람하기
대량 구매 할인 기용 가능
View bulk pricing options

Subtotal (1 unit)*

₩7,840.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 140 개 단위 배송 준비 완료
  • 추가로 2026년 11월 09일 부터 327 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
1 - 22₩7,840.00
23 - 44₩7,660.00
45 +₩7,500.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
489-0295
Distrelec 제품 번호:
301-89-717
제조사 부품 번호:
744823210
제조업체:
Wurth Elektronik
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Wurth Elektronik

Inductance

10mH

Product Type

Common Mode Choke

Series

WE-CMB HC

Maximum DC Current

2A

Test Frequency

10kHz

Maximum Operating Temperature

125°C

Minimum Operating Temperature

-40°C

Automotive Standard

No

Choke Voltage

230V

Mount Type

Radial

Pin Count

4

Inductance Tolerance

±30 %

Length

23mm

Termination Style

Solder Pad

Maximum DC Resistance

125mΩ

Standards/Approvals

RoHS, ENEC, REACH, VDE

Height

28mm

Depth

13mm

COO (Country of Origin):
CN

Wurth Elektronik WE-CMB HC Series Common Mode Choke, 10mH Inductance, 230V Choke Voltage - 744823210


This common mode choke provides differential noise suppression for power lines and signal filtering in electronic circuits. It is designed for radial mounting on PCBs and operates across a wide temperature span, offering stable performance for equipment requiring mains-level EMI control. The device is intended for installations where Compact board-mounted suppression with solder pad termination is required.

Features and Benefits:


• 10mH inductance provides effective EMI attenuation
• ±30% tolerance ensures predictable filtering performance
• 2A maximum DC current supports low-power supply lines
• 125mΩ maximum DCR minimises insertion loss
• Rated to 230V for mains-connected applications

Applications


• Suitable for power line EMI suppression in appliances
• Used with low-current mains filters in consumer electronics
• Ideal for board-mounted RFI mitigation in power supplies
• Can be used for noise reduction in industrial control units

What termination style does it use for PCB assembly?


It employs solder pad terminations for through-hole radial mounting.

What environmental temperature range can it withstand?


It is specified to operate from -40°C up to 125°C.

Which approvals indicate material and safety conformity?


It carries RoHS, ENEC, REACH and VDE approvals.

How many pins and what form factor does it have?


It is a 4-pin device in a radial PCB mount configuration.

What are the physical envelope dimensions?


The component measures 23mm in length, 13mm in depth and 28mm in height.
