Wurth Elektronik 175 μH 8 A Common Mode Choke 6 mΩ 1.5kV
- RS 제품 번호:
- 245-8540
- 제조사 부품 번호:
- 7448228002
- 제조업체:
- Wurth Elektronik

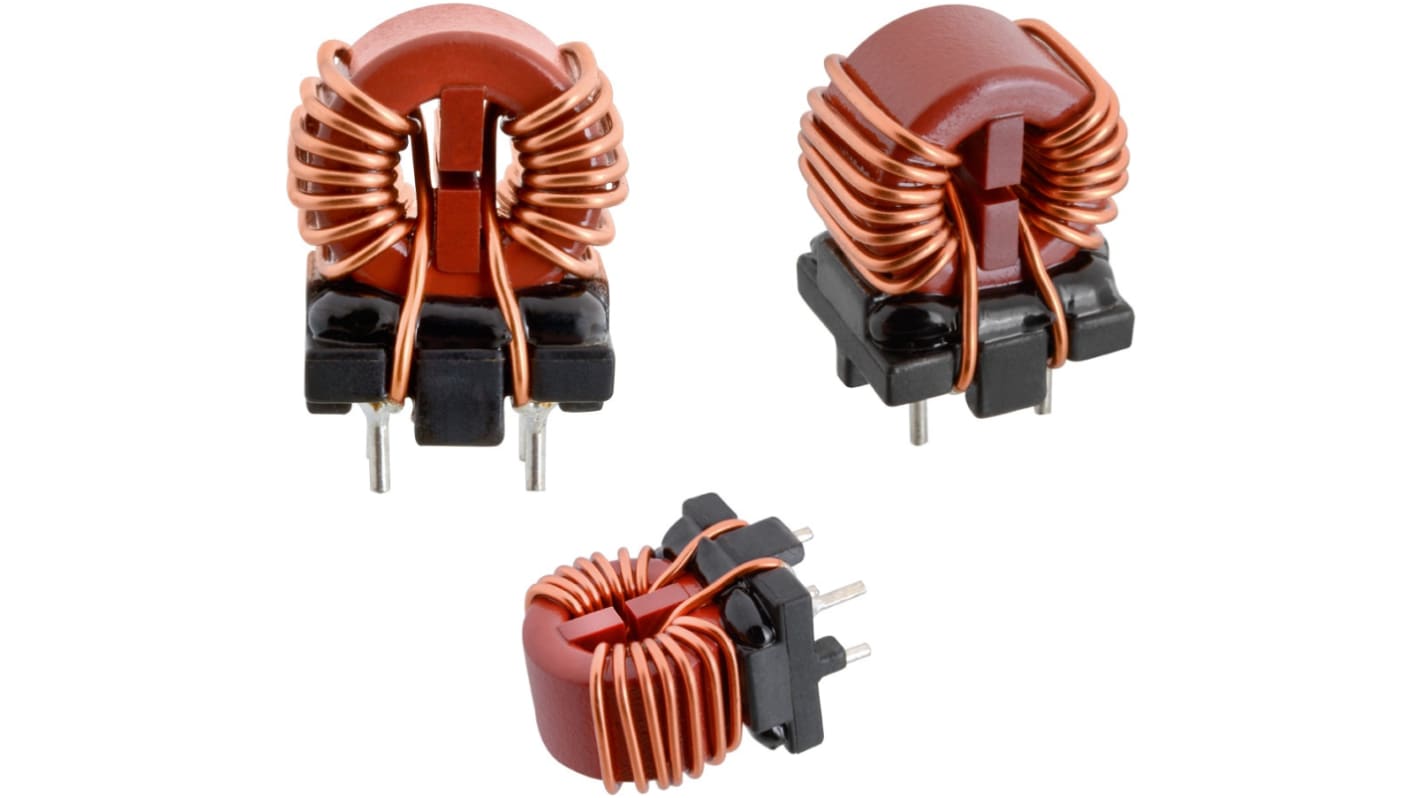

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 비가용
죄송합니다. 언제 재입고될지 모릅니다.
- RS 제품 번호:
- 245-8540
- 제조사 부품 번호:
- 7448228002
- 제조업체:
- Wurth Elektronik
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Wurth Elektronik | |
| Inductance | 175μH | |
| Product Type | Common Mode Choke | |
| Series | WE-CMB HC | |
| Maximum DC Current | 8A | |
| Test Frequency | 50Hz | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Automotive Standard | No | |
| Choke Voltage | 1.5kV | |
| Mount Type | Through Hole | |
| Inductance Tolerance | ±30 % | |
| Length | 18.5mm | |
| Standards/Approvals | RoHS, VDE, REACH | |
| Maximum DC Resistance | 6mΩ | |
| Height | 22mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Wurth Elektronik | ||
Inductance 175μH | ||
Product Type Common Mode Choke | ||
Series WE-CMB HC | ||
Maximum DC Current 8A | ||
Test Frequency 50Hz | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Automotive Standard No | ||
Choke Voltage 1.5kV | ||
Mount Type Through Hole | ||
Inductance Tolerance ±30 % | ||
Length 18.5mm | ||
Standards/Approvals RoHS, VDE, REACH | ||
Maximum DC Resistance 6mΩ | ||
Height 22mm | ||
- COO (Country of Origin):
- CN
The Wurth Elektroniks high current common mode power line choke used for mains power line-in and out filter, power electronics. It is also used for filtering of devices without any ground connection, suppression of radio interferences in motors and for suppression of common mode noise. It is made of MnZn.
Broadband filtering due to low capacitance winding technique
High suppression of asymmetrical interferences also at low frequency
Very compact design and high rated current of 8 A at 70 °C
DC resistance of 6 mΩ at 20 °C
Operating temperature of -40 °C to +125 °C
