KEMET 6.4 mH 1.1 A Common Mode Choke 0.24 Ω 250 V ac

모든 Common Mode Chokes 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
RS 제품 번호:
186-1085
제조사 부품 번호:
SSRH7HS-M11064
제조업체:
KEMET
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

KEMET

Inductance

6.4 mH

Product Type

Common Mode Choke

Maximum DC Current

1.1A

Series

SSRH7HS-M

Packaging

Tray

Test Frequency

10 kHz

Maximum Operating Temperature

120°C

Minimum Operating Temperature

-25°C

Automotive Standard

No

Mount Type

Through Hole

Choke Voltage

250 V ac

Standards/Approvals

RoHS

Depth

14.5mm

Height

12mm

Termination Style

Solder Pad

Maximum DC Resistance

0.24Ω

Length

18mm

COO (Country of Origin):
VN

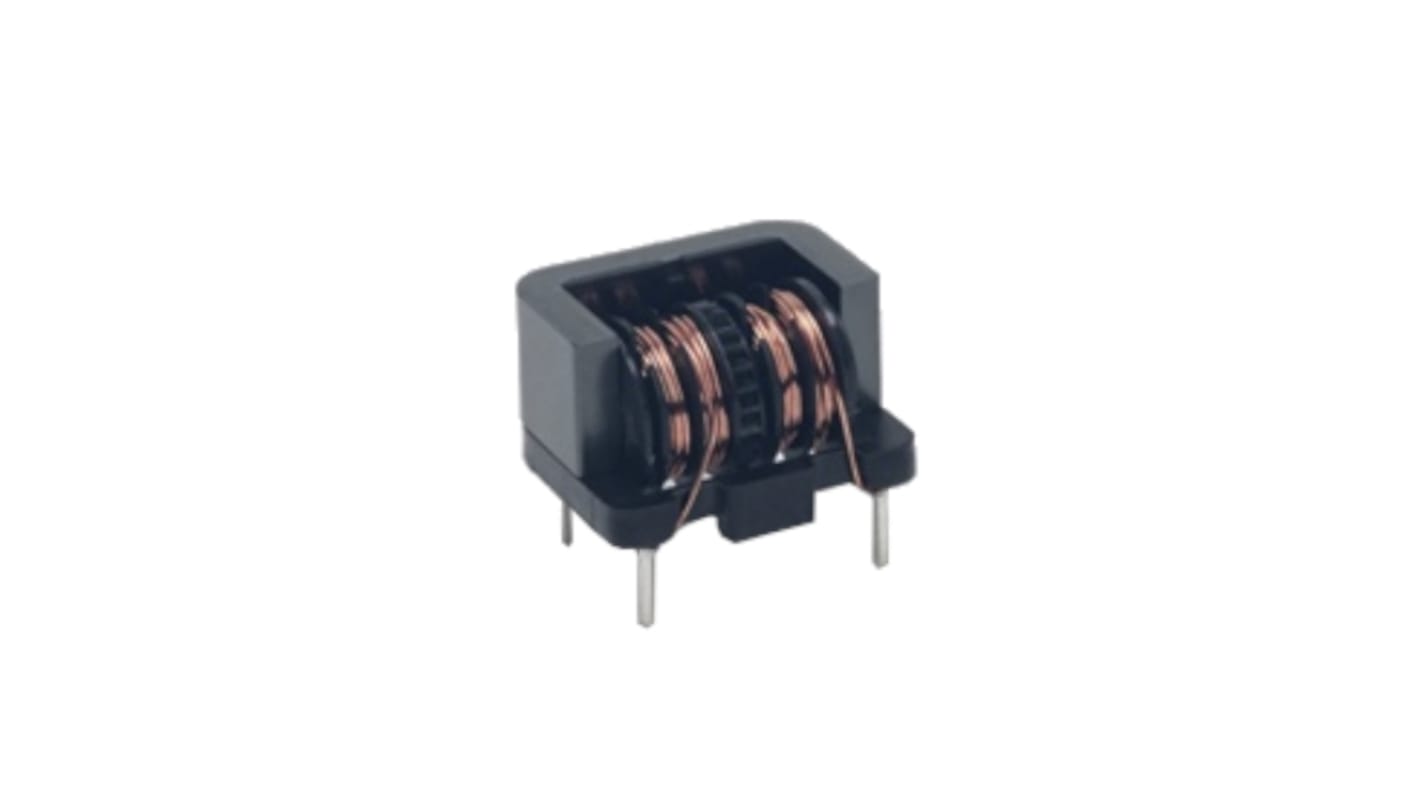

The KEMET SSRH7H-M coils are common mode chokes with a wide variety of characteristics. These low current and high inductance, gear type coils are designed with our proprietary high permeability ferrite S18H cores and are useful in various noise countermeasure fields.The optimized core shape and product structure is ideal for demanding compact applications where space is of highest priority and where small is better.

Proprietary S18H ferrite material

High permeability

High impedance in wide frequency range due to divided bobbin

Small gear common mode choke for low current applications

12mm height low profile

Operating temperature range from -25°C to +120°C

Applications

Audio-visual equipment

Office automation equipment

Digital appliances

Compact power supplies
