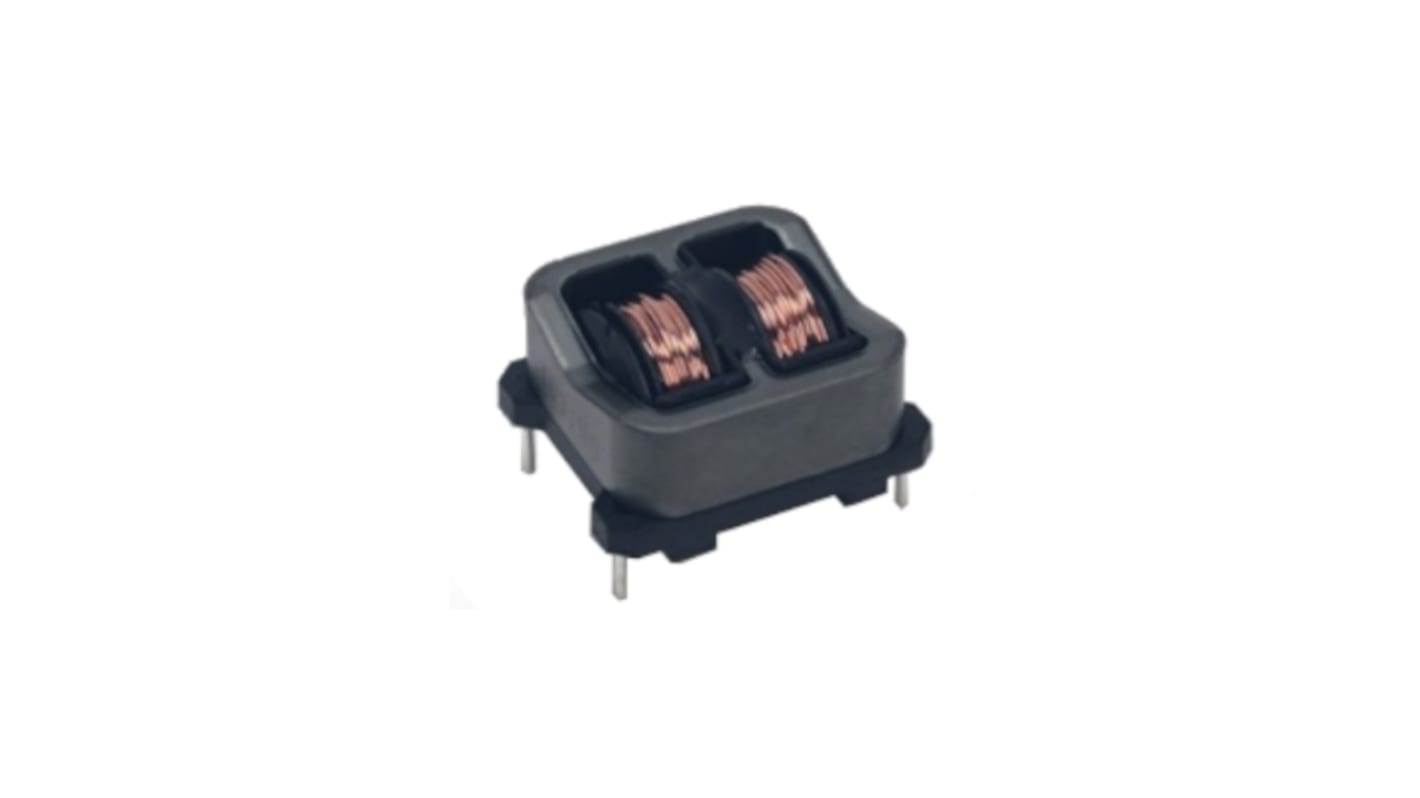

KEMET 125 mH 400 mA Common Mode Choke 2.25 Ω 250 V ac
- RS 제품 번호:
- 186-0976
- 제조사 부품 번호:
- SSHB21H-R041250
- 제조업체:
- KEMET
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 pack of 5 units)*
₩16,374.80
마지막 RS 재고
- 최종적인 15 개 unit(s)이 배송 준비 됨
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 5 - 10 | ₩3,274.96 | ₩16,374.80 |
| 15 - 25 | ₩3,199.76 | ₩15,998.80 |
| 30 + | ₩3,135.84 | ₩15,679.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 186-0976
- 제조사 부품 번호:
- SSHB21H-R041250
- 제조업체:
- KEMET
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | KEMET | |
| Product Type | Common Mode Choke | |
| Inductance | 125 mH | |
| Series | SSHB21H | |
| Maximum DC Current | 400mA | |
| Test Frequency | 10 kHz | |
| Packaging | Tray | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 120°C | |
| Automotive Standard | No | |
| Mount Type | Through Hole | |
| Choke Voltage | 250 V ac | |
| Height | 15.5mm | |
| Length | 26mm | |
| Standards/Approvals | No | |
| Maximum DC Resistance | 2.25Ω | |
| Termination Style | Solder Pad | |
| Depth | 23mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 KEMET | ||
Product Type Common Mode Choke | ||
Inductance 125 mH | ||
Series SSHB21H | ||
Maximum DC Current 400mA | ||
Test Frequency 10 kHz | ||
Packaging Tray | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 120°C | ||
Automotive Standard No | ||
Mount Type Through Hole | ||
Choke Voltage 250 V ac | ||
Height 15.5mm | ||
Length 26mm | ||
Standards/Approvals No | ||
Maximum DC Resistance 2.25Ω | ||
Termination Style Solder Pad | ||
Depth 23mm | ||
- COO (Country of Origin):
- VN
The KEMET SSHB coils are dual mode chokes with a wide variety of characteristics. These hybrid coils combine the two functions of normal mode countermeasure and common mode noise suppression in just one coil. Reducing the number of required products ensures cost savings and space efficiency. Our proprietary core materials provide optimized solutions for high-temperature requirements (standard type) or for high permeability needs (R type). In addition, the specially developed shape is efficient with normal noise suppression.
Proprietary 5HT and 10HZ ferrite materials and equivalents
Optimization of magnetic circuit and material
One coil to suppress both common and normal noise
High impedance in wide frequency range due to divided bobbin
High permeability for R type
Operating temperature range from -25°C to +130°C for standard type
Operating temperature range from -25°C to +120°C for R type
Low leakage magnetic flux to outside
Applications
LED lighting
Audio-visual equipment
Office automation equipment
Power supplies
