KEMET 2.6 mH 5 A Common Mode Choke 0.027Ω

모든 Common Mode Chokes 열람하기
대량 구매 할인 기용 가능

Subtotal (1 tray of 40 units)*

₩119,793.60

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 7월 13일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
Per Tray*
40 - 40₩2,994.84₩119,816.16
80 - 120₩2,921.52₩116,823.20
160 +₩2,876.40₩115,018.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
183-6552
제조사 부품 번호:
SSRH24NVS-50026
제조업체:
KEMET
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

KEMET

Inductance

2.6 mH

Series

SSRH

Test Frequency

10 kHz

DC Resistance

0.027Ω

Maximum Current

5 A

Dimensions

25.5 x 20 x 31mm

Operating Temperature Range

-25°C → +120°C

Number of Lines

2

Mounting Type

Through Hole

Termination Style

Solder Pad

Depth

20mm

Minimum Operating Temperature

-25°C

Height

31mm

Maximum Operating Temperature

+120°C

Length

25.5mm

COO (Country of Origin):
VN

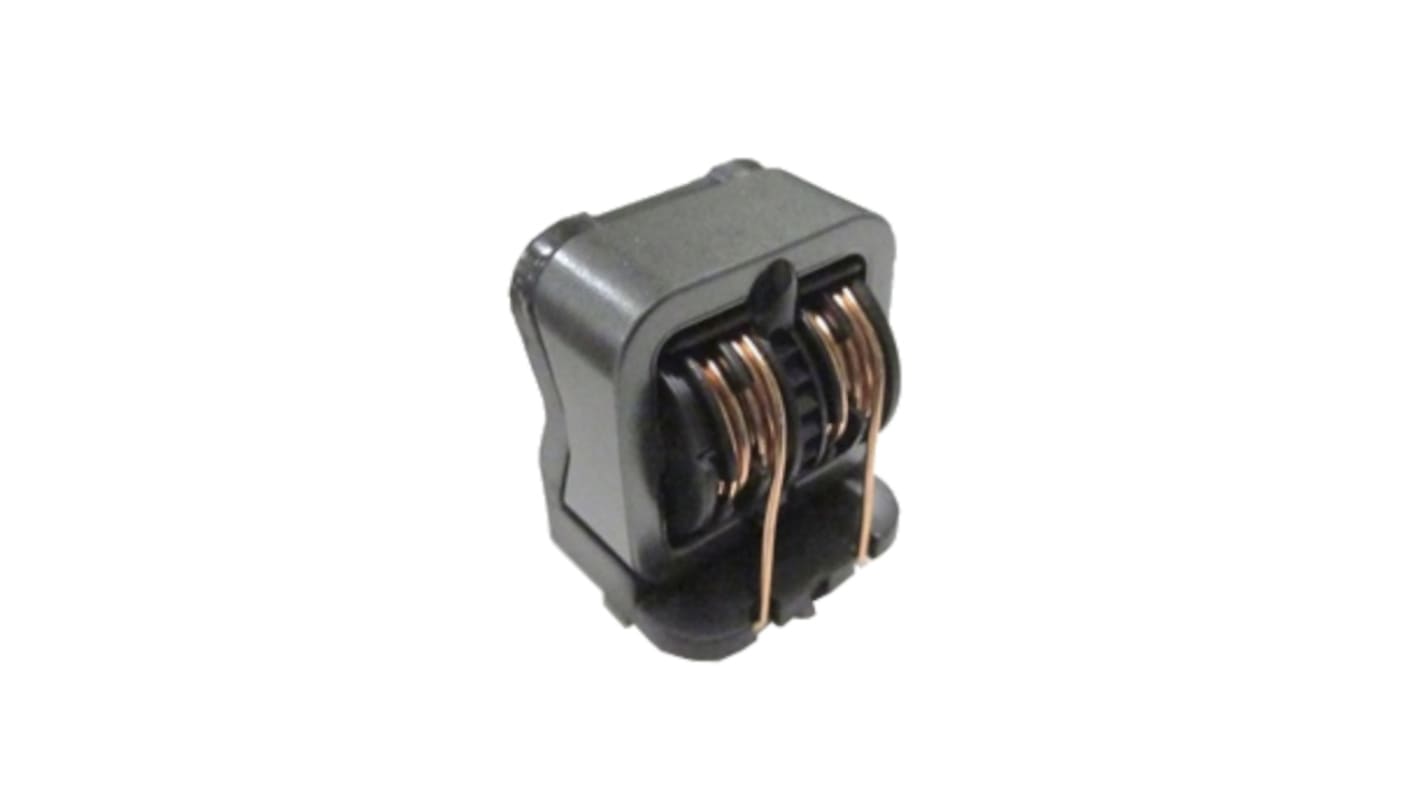

The KEMET SSRH24NV/NH coils are common mode chokes with a wide variety of characteristics. These gear type coils are designed with our proprietary high permeability ferrite S18H cores and are useful in various noise counter measurefields. The optimized core shape and product structure is ideal for demanding compact applications where large inductance is required.

Proprietary S18H ferrite material
High permeability
High impedance in wide frequency range due to divided bobbin
Expanded current range up to 5A
Compact size and light weight
Operating temperature range from −25°C to +120°C

Applications
Audio-visual equipment
Office automation equipment
Digital appliances
Power supplies
