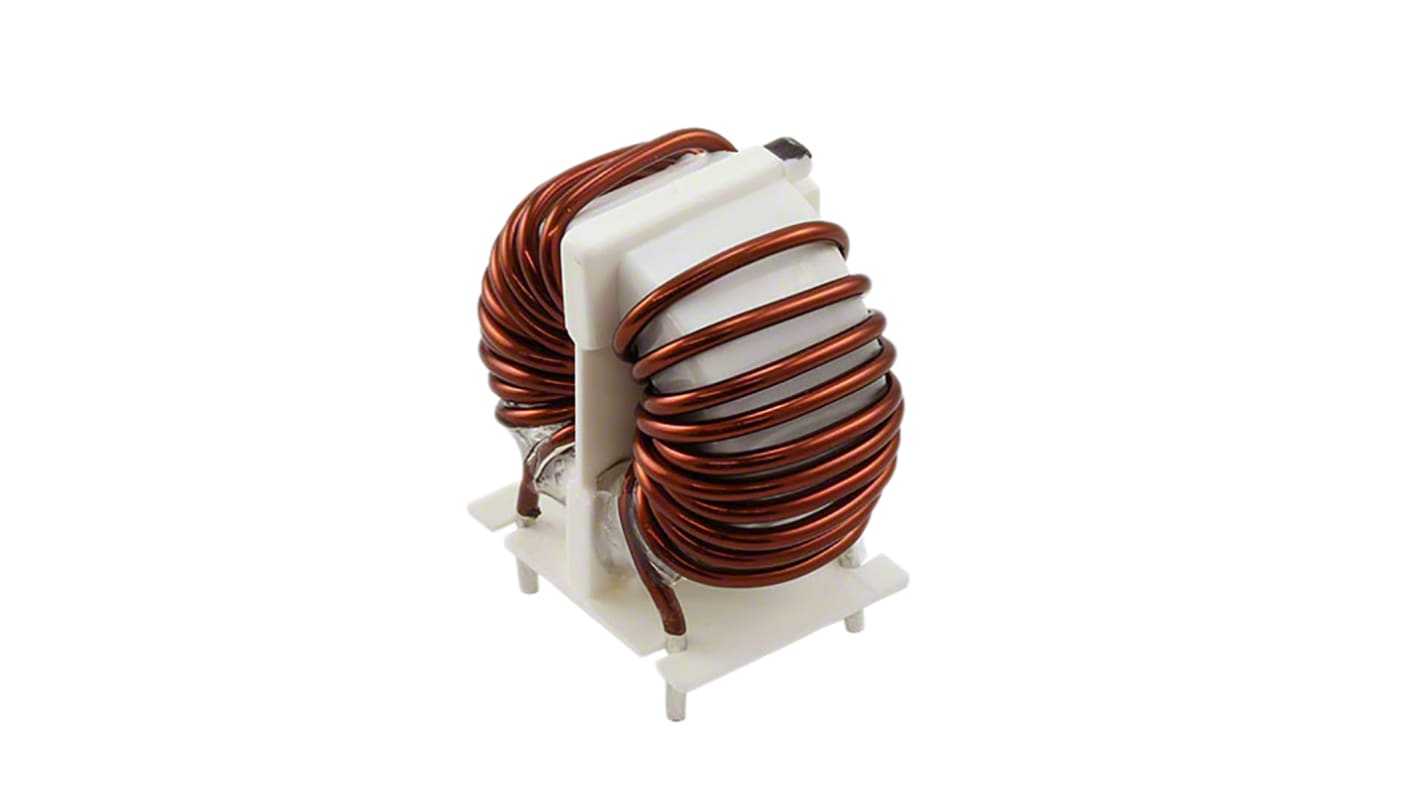

KEMET 1 mH 15 A Common Mode Choke 12 mΩ 250V

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Common Mode Chokes 열람하기
현재 비가용
죄송합니다. 언제 재입고될지 모릅니다.
RS 제품 번호:
169-6903
제조사 부품 번호:
SC-15-10J
제조업체:
KEMET
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

KEMET

Inductance

1mH

Product Type

Common Mode Choke

Series

SC-J

Maximum DC Current

15A

Core Material

Ferrite

Test Frequency

100kHz

Packaging

Tray

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

105°C

Automotive Standard

No

Mount Type

Through Hole

Choke Voltage

250V

Length

44mm

Standards/Approvals

UL-94 V-0, RoHS

Depth

30mm

Height

44mm

Maximum DC Resistance

12mΩ

Termination Style

Solder Pad

COO (Country of Origin):
VN

Kemet SC-J Series Terminal Base Type Common Mode Chokes


Kemet SC Coils, SC-J Terminal Base Type AC line filters, are suitable for use as common mode chokes and in consumer electronics. A wide range of different sizes and specifications are available.

Rated currents up to 18 A

DC resistances as low as 7 mΩ

Inductances up to 8 mH
