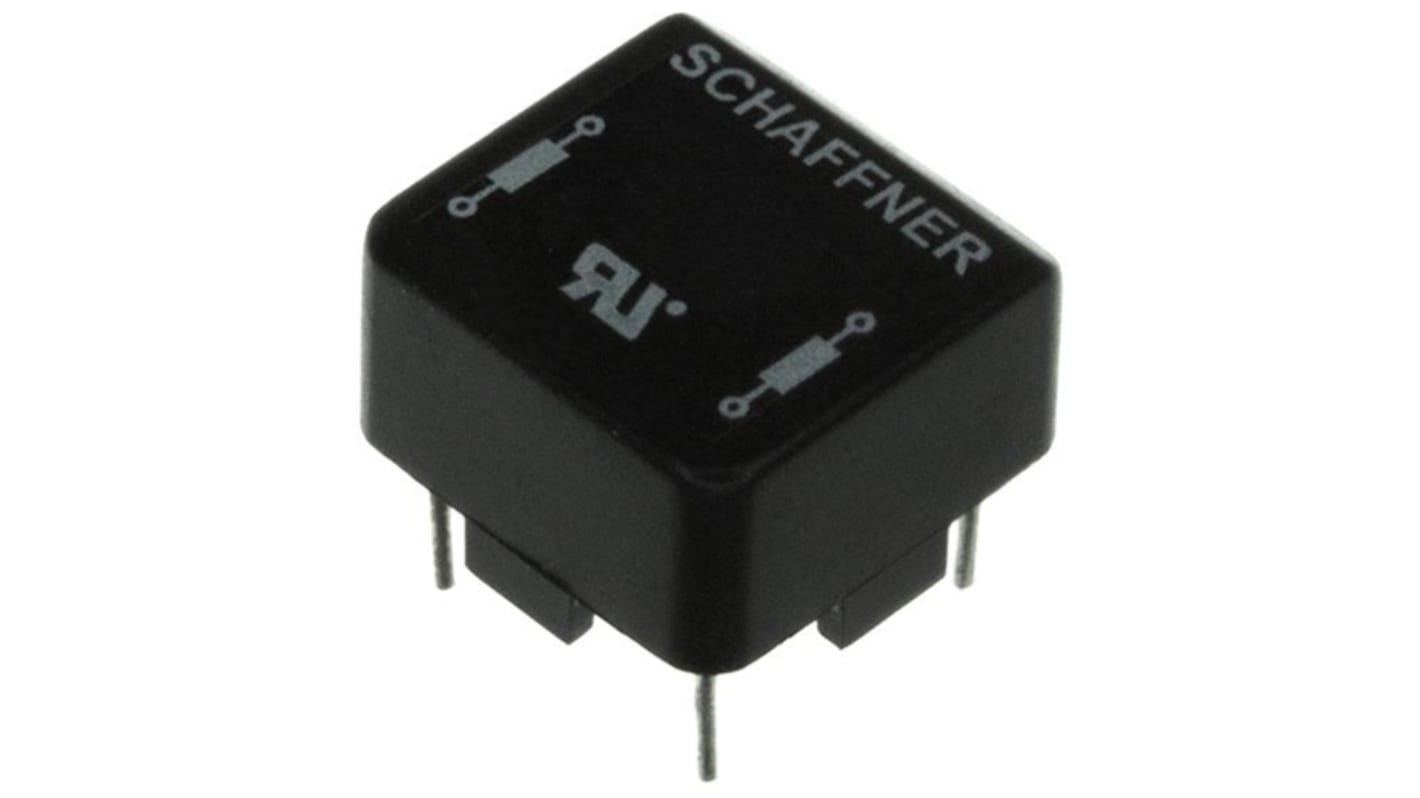

Schaffner 2.7 mH 8 A Common Mode Choke 22 mΩ 300 V ac
- RS 제품 번호:
- 133-6154
- 제조사 부품 번호:
- RN152-8-02-2M7
- 제조업체:
- Schaffner
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 Bag of 5 units)*
₩49,256.00
재고있음
- 190 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | Per Bag* |
|---|---|---|
| 5 - 20 | ₩9,851.20 | ₩49,256.00 |
| 25 - 45 | ₩9,636.88 | ₩48,184.40 |
| 50 + | ₩9,426.32 | ₩47,131.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 133-6154
- 제조사 부품 번호:
- RN152-8-02-2M7
- 제조업체:
- Schaffner
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schaffner | |
| Product Type | Common Mode Choke | |
| Inductance | 2.7 mH | |
| Series | RN | |
| Maximum DC Current | 8A | |
| Test Frequency | 10 kHz | |
| Maximum Operating Temperature | 100°C | |
| Minimum Operating Temperature | -40°C | |
| Automotive Standard | No | |
| Choke Voltage | 300 V ac | |
| Mount Type | Through Hole | |
| Maximum Self Resonant Frequency | 3MHz | |
| Inductance Tolerance | -30 to 50 % | |
| Standards/Approvals | RoHS, VDE, UL | |
| Height | 25mm | |
| Maximum DC Resistance | 22mΩ | |
| Termination Style | Solder Pad | |
| Length | 43mm | |
| Depth | 41.8mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schaffner | ||
Product Type Common Mode Choke | ||
Inductance 2.7 mH | ||
Series RN | ||
Maximum DC Current 8A | ||
Test Frequency 10 kHz | ||
Maximum Operating Temperature 100°C | ||
Minimum Operating Temperature -40°C | ||
Automotive Standard No | ||
Choke Voltage 300 V ac | ||
Mount Type Through Hole | ||
Maximum Self Resonant Frequency 3MHz | ||
Inductance Tolerance -30 to 50 % | ||
Standards/Approvals RoHS, VDE, UL | ||
Height 25mm | ||
Maximum DC Resistance 22mΩ | ||
Termination Style Solder Pad | ||
Length 43mm | ||
Depth 41.8mm | ||
Schaffner RN Series Common Mode Chokes
Premium range of common mode chokes from Schaffner provide the user with reliable AC power line noise filtration. Can be used in a wide range of applications such as phase-angle control circuits in combination with saturating chokes and EMI input filters.
Rated currents from 0.3 →10 A
DC → 1kHz frequency
100kHz → 3MHz common-mode resonance frequency
Dual-choke configurations
Multiple PCB-mounting options
Small Compact design
High saturation resistance and excellent thermal behaviour
Schaffner Leaded Inductors (Chokes)
Approvals
UL recognised
