Eaton 50 μH 370 A Common Mode Choke 550 V
- RS 제품 번호:
- 120-376
- 제조사 부품 번호:
- 169144 DX-LN3-370
- 제조업체:
- Eaton
Subtotal (1 unit)*
₩2,459,171.60
일시적 품절
- 2026년 4월 20일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩2,459,171.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 120-376
- 제조사 부품 번호:
- 169144 DX-LN3-370
- 제조업체:
- Eaton
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Eaton | |
| Product Type | Common Mode Choke | |
| Inductance | 50 μH | |
| Series | DX | |
| Maximum DC Current | 370A | |
| Test Frequency | 3 kHz | |
| Maximum Operating Temperature | 40°C | |
| Minimum Operating Temperature | -25°C | |
| Automotive Standard | No | |
| Choke Voltage | 550 V | |
| Maximum Self Resonant Frequency | 0Hz | |
| Height | 500mm | |
| Standards/Approvals | IEC/EN61800-3, CE, CSA, CSA-C22.2 No. 14, IEC/EN 61558-2-20-2000, IEC/EN61800-5, UL 508C, VDE 0570 Part 2-20/2001-04 | |
| Depth | 400mm | |
| Length | 400mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Eaton | ||
Product Type Common Mode Choke | ||
Inductance 50 μH | ||
Series DX | ||
Maximum DC Current 370A | ||
Test Frequency 3 kHz | ||
Maximum Operating Temperature 40°C | ||
Minimum Operating Temperature -25°C | ||
Automotive Standard No | ||
Choke Voltage 550 V | ||
Maximum Self Resonant Frequency 0Hz | ||
Height 500mm | ||
Standards/Approvals IEC/EN61800-3, CE, CSA, CSA-C22.2 No. 14, IEC/EN 61558-2-20-2000, IEC/EN61800-5, UL 508C, VDE 0570 Part 2-20/2001-04 | ||
Depth 400mm | ||
Length 400mm | ||
- COO (Country of Origin):
- AT

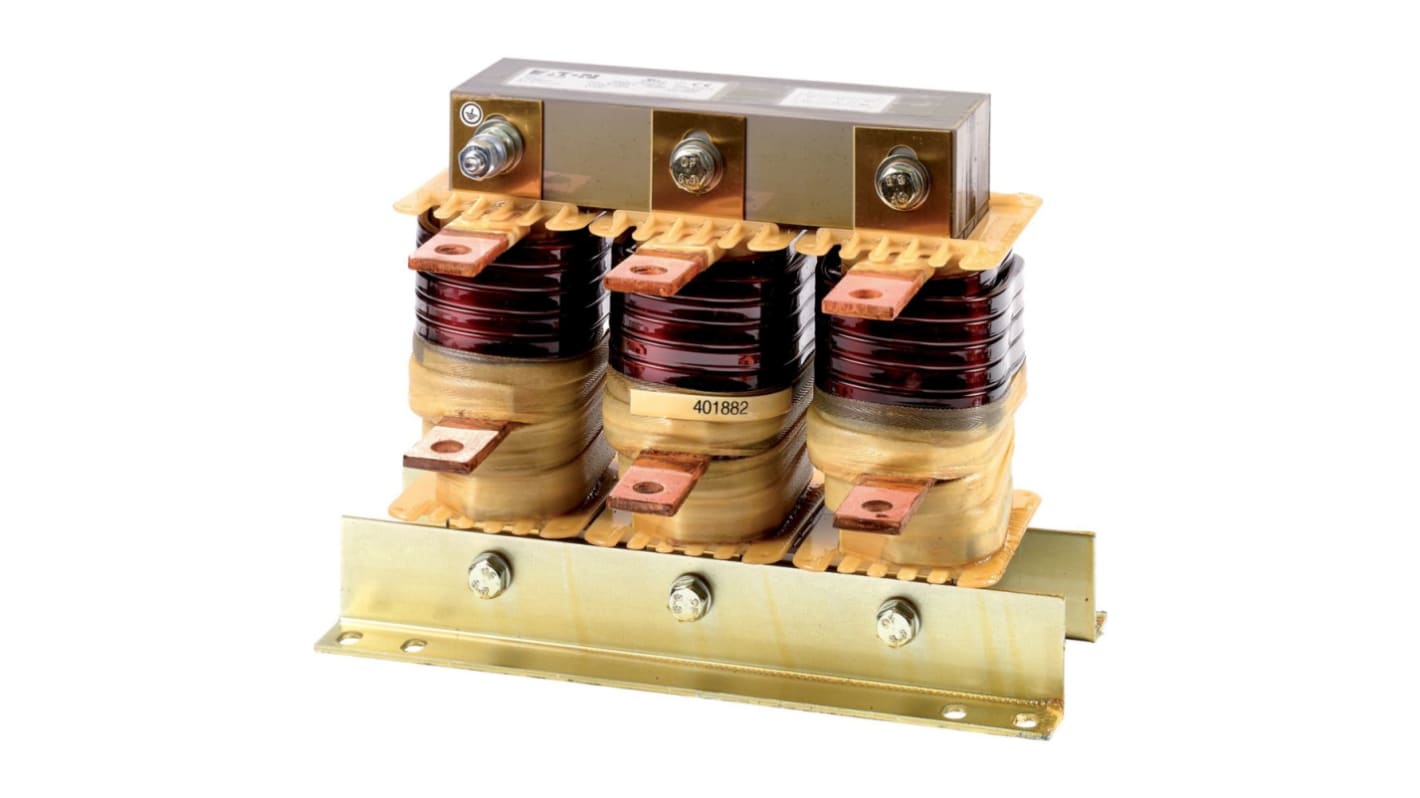

The Eaton mains choke is a three-phase product suitable for branch circuits and comes with a bore diameter of 14mm. With a maximum voltage of 550V AC, rated operational current of 370A, and an insulation class of B, this accessory is reliable and efficient for various industrial applications.
Three-phase mains choke suitable for branch circuits
Comes with a bore diameter of 14mm for easy installation
Maximum voltage of 550V AC for high power applications
Rated operational current of 370A ensures reliable performance
Reliable performance fo
