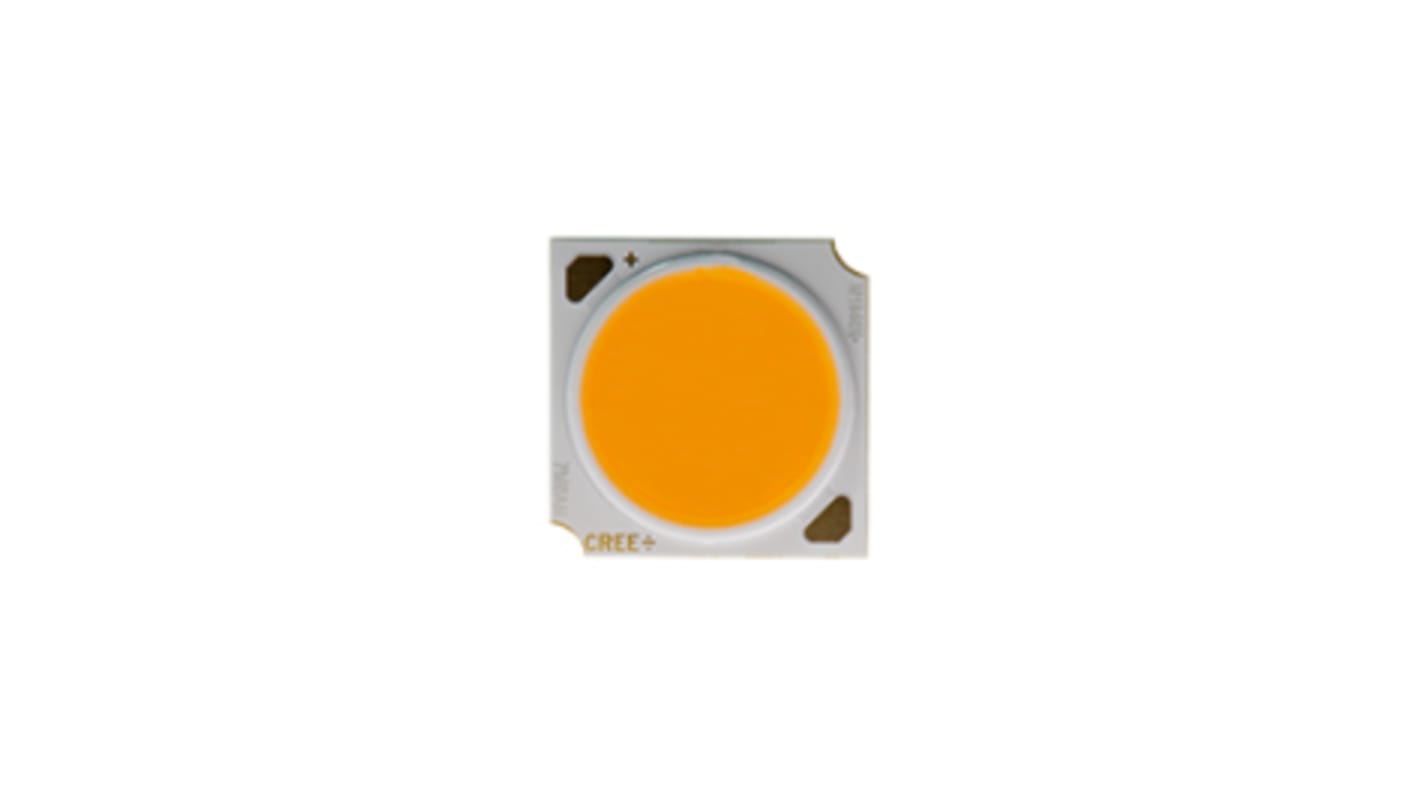

Cree LED CMA1840-0000-000N0H0A40G XLamp White CoB LED 4000K 82 %CRI
- RS 제품 번호:
- 171-2944
- 제조사 부품 번호:
- CMA1840-0000-000N0H0A40G
- 제조업체:
- Cree LED
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 171-2944
- 제조사 부품 번호:
- CMA1840-0000-000N0H0A40G
- 제조업체:
- Cree LED
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Cree LED | |
| Typical Luminous Flux | 5595lm | |
| Product Type | CoB LED | |
| Optical Source Diameter | 14mm | |
| Colour Temperature | 4000K | |
| Radiant Flux | 87W | |
| Series | XLamp | |
| Viewing Angle | 115 ° | |
| Colour Rendering Index CRI | 82% | |
| LED Colour | White | |
| Forward Voltage | 34.7V | |
| 모두 선택 | ||
|---|---|---|
브랜드 Cree LED | ||
Typical Luminous Flux 5595lm | ||
Product Type CoB LED | ||
Optical Source Diameter 14mm | ||
Colour Temperature 4000K | ||
Radiant Flux 87W | ||
Series XLamp | ||
Viewing Angle 115 ° | ||
Colour Rendering Index CRI 82% | ||
LED Colour White | ||
Forward Voltage 34.7V | ||
The XLamp® CMA1840 is a member of Cree’s XLamp High Current LED Array family that is optimized for best-in-class lumen output, efficacy and reliability at high drive currents. XLamp CMA LEDs share the same package design and LES sizes as Cree’s CXA2 Standard Density LEDs, enabling lighting manufacturers to address a range of performance requirements for applications such as track, downlight and outdoor lighting using a single easy-to-use platform. XLamp High Current LED Arrays are available in 2-step and 3-step EasyWhite® bins.
14-mm optical source
Optical design consistent with
CXA1830 and CXB1830 LeDs
Available in 70-, 80- and 90- and
95-minimum CRI options
Cree easyWhite® 2-, 3- and 5-step binning
Premium Colour 2- and 3-step binning
Forward voltage option: 36-v class
85 °C binning and characterization
Maximum drive current: 2300 mA
115° viewing angle, uniform
chromaticity profile
Top-side solder connections
