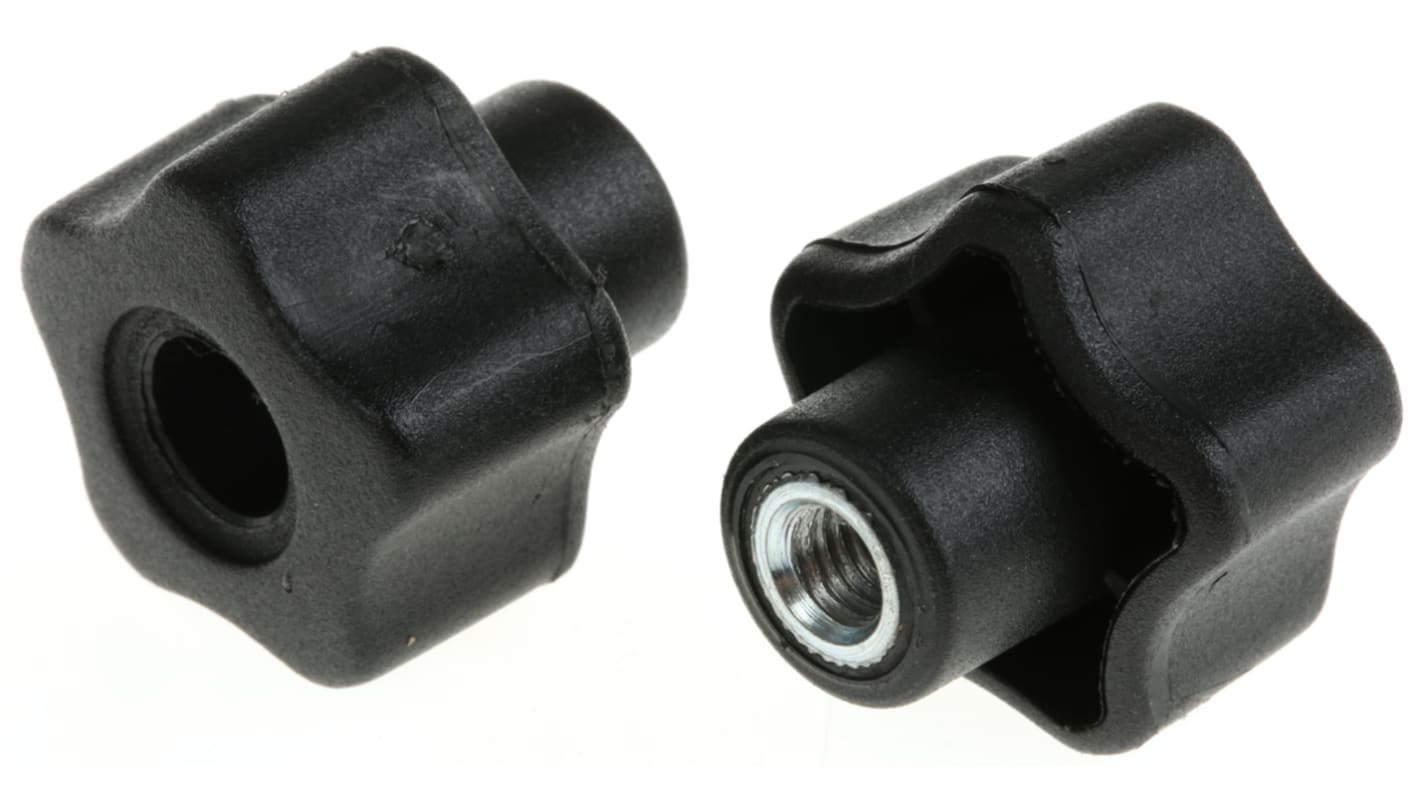

RS PRO Black Multiple Lobes Clamping Knob, M6, Threaded Through Hole

RS 제품 번호:: 702-7617
제조업체:: RS PRO

RS PRO Black Multiple Lobes Clamping Knob, M6, Threaded Through Hole

대량 구매 할인 기용 가능

Subtotal (1 pack of 10 units)*

₩39,592.80

재고있음

160 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	한팩당*
10 - 40	₩3,959.28	₩39,592.80
50 - 90	₩3,801.36	₩38,013.60
100 - 390	₩3,643.44	₩36,434.40
400 - 1990	₩3,564.48	₩35,644.80
2000 +	₩2,932.80	₩29,328.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 702-7617
제조업체:: RS PRO

Thermoplastic, Metric Threads

Knobs are used in a wide variety of applications in our day-to-day lives and perform many functions, from being used as fixed handles to being used to tighten, loosen, adjust, clamp and push other components or pieces of equipment. They are used in various applications, from industrial and construction machinery to audio and visual equipment.

These multiple lobed handwheels from RS PRO are an ergonomic shape to ensure user comfort, with a varying number of lobes depending on the grip and pressure required. The knob handles are made from impact-resistant thermoplastic bodies and male knobs are fitted with a protruding screw insert (male) of either stainless steel or zinc-plated steel. Female knobs and threaded though knobs have threaded inserts of zinc-plated or stainless steel. Zinc-plated steel and stainless steel both provide wear resistance for the threads to ensure that the threads last throughout general use and are not easily damaged or sheared.

Resistant to most chemicals, UV light and water absorption (1.5% max.)
Temperature range -20°C to +110°C (short term withstand +170°C)
Zinc plated steel, Brass or Stainless steel inserts

Features & Benefits

Thermoplastic handles

Zinc plated steel or stainless steel studs

Matte black finish

Working temperature range of -20°C to +110°C

Can short term withstand +170°C

Resistant to most chemicals, UV light and water absorption (1.5% max)

Applications

These multi-lobed knobs are used in a variety of applications, with the shape providing an ergonomic grip for user comfort and added torque to be applied by hand. The stainless steel screw threads will better endure outdoor environments or hygiene-focussed environments, such as medical and food preparation industries. The zinc screws are as strong, but it is not recommended to use them outdoors/near moisture as they are more susceptible to rust and this will effect the performance of the screw.

Common applications include:

Access doors

Drawers & panels (domestic and industrial)

Clamps and fixtures

Industrial machinery

Food preparation machinery

Medical furniture

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	RS PRO
	Thread	M6
	Thread Diameter	6mm
	Thread Length	9mm
	Knob Shape	Multiple Lobes
	Mounting Type	Threaded Through Hole
	Knob Diameter	28mm
	Hole Length	25mm
	Insert Material	Steel
	Colour	Black

	모두 선택
	브랜드 RS PRO
	Thread M6
	Thread Diameter 6mm
	Thread Length 9mm
	Knob Shape Multiple Lobes
	Mounting Type Threaded Through Hole
	Knob Diameter 28mm
	Hole Length 25mm
	Insert Material Steel
	Colour Black

RS PRO Black Multiple Lobes Clamping Knob, M6, Threaded Through Hole

Thermoplastic, Metric Threads
