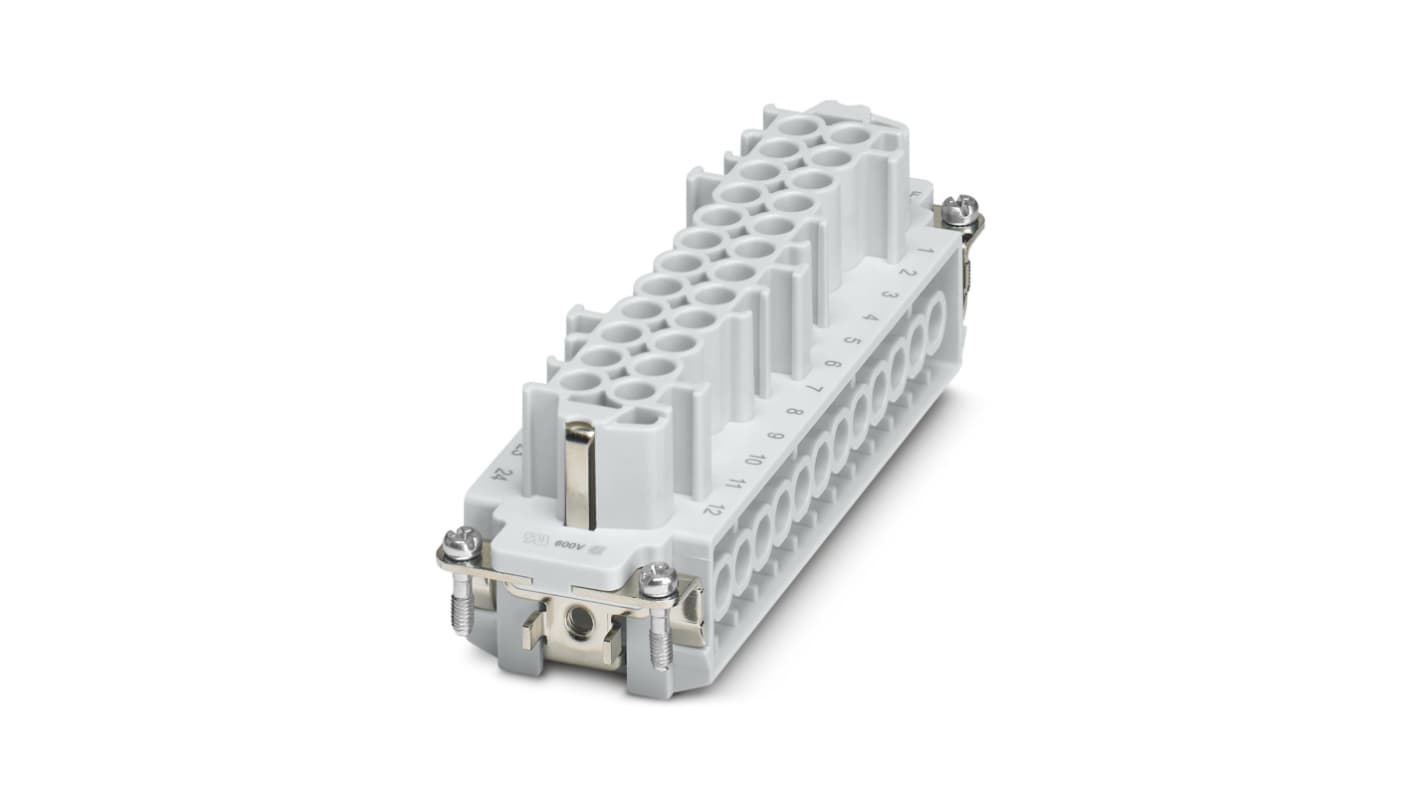

Phoenix Contact Contact Insert, 16 A, HC-B Series Female, 24 Contacts
- RS 제품 번호:
- 488-086
- 제조사 부품 번호:
- 1584949
- 제조업체:
- Phoenix Contact
사용할 수 없음
RS는 더 이상 이 제품을 입고하지 않습니다.
- RS 제품 번호:
- 488-086
- 제조사 부품 번호:
- 1584949
- 제조업체:
- Phoenix Contact
사양
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Product Type | Contact Insert | |
| Current Rating | 16 A | |
| Series | HC-B | |
| Sub Type | Contact Insert | |
| Connector Gender | Female | |
| For Use With | Shock And Vibration Resistant | |
| Voltage | 500 V | |
| Mount Type | Screw | |
| IP Rating | IP54 | |
| Number of Contacts | 24 | |
| Standards/Approvals | RoHS | |
| Minimum Wire Size mm² | 0.5mm² | |
| Maximum Wire Size mm² | 2.5mm² | |
| Contact Material | Copper Alloy | |
| Contact Plating | Silver | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Product Type Contact Insert | ||
Current Rating 16 A | ||
Series HC-B | ||
Sub Type Contact Insert | ||
Connector Gender Female | ||
For Use With Shock And Vibration Resistant | ||
Voltage 500 V | ||
Mount Type Screw | ||
IP Rating IP54 | ||
Number of Contacts 24 | ||
Standards/Approvals RoHS | ||
Minimum Wire Size mm² 0.5mm² | ||
Maximum Wire Size mm² 2.5mm² | ||
Contact Material Copper Alloy | ||
Contact Plating Silver | ||
- COO (Country of Origin):
- CN
The Phoenix Contact Contact Insert from the HC B series exemplifies cutting edge design and functionality for modern connectivity needs. Engineered for seamless integration, it features a robust screw connection suitable for various wire gauges ensuring reliable performance in demanding environments. With a focus on versatility, this insert is designed to handle voltages up to 500 V and currents of 16 A, making it ideal for power applications. Its compact dimensions and high quality construction not only guarantee efficient use of space but also enhance durability, catering to the rigorous requirements of industrial settings.
Constructed with a flammability rating according to UL 94 V0 for improved safety
Optimised for more than 500 insertion/withdrawal cycles which ensuring longevity
Facilitates straightforward coding for rapid installation and enhanced usability
Easy integration with a range of accessories for tailored connectivity solutions
