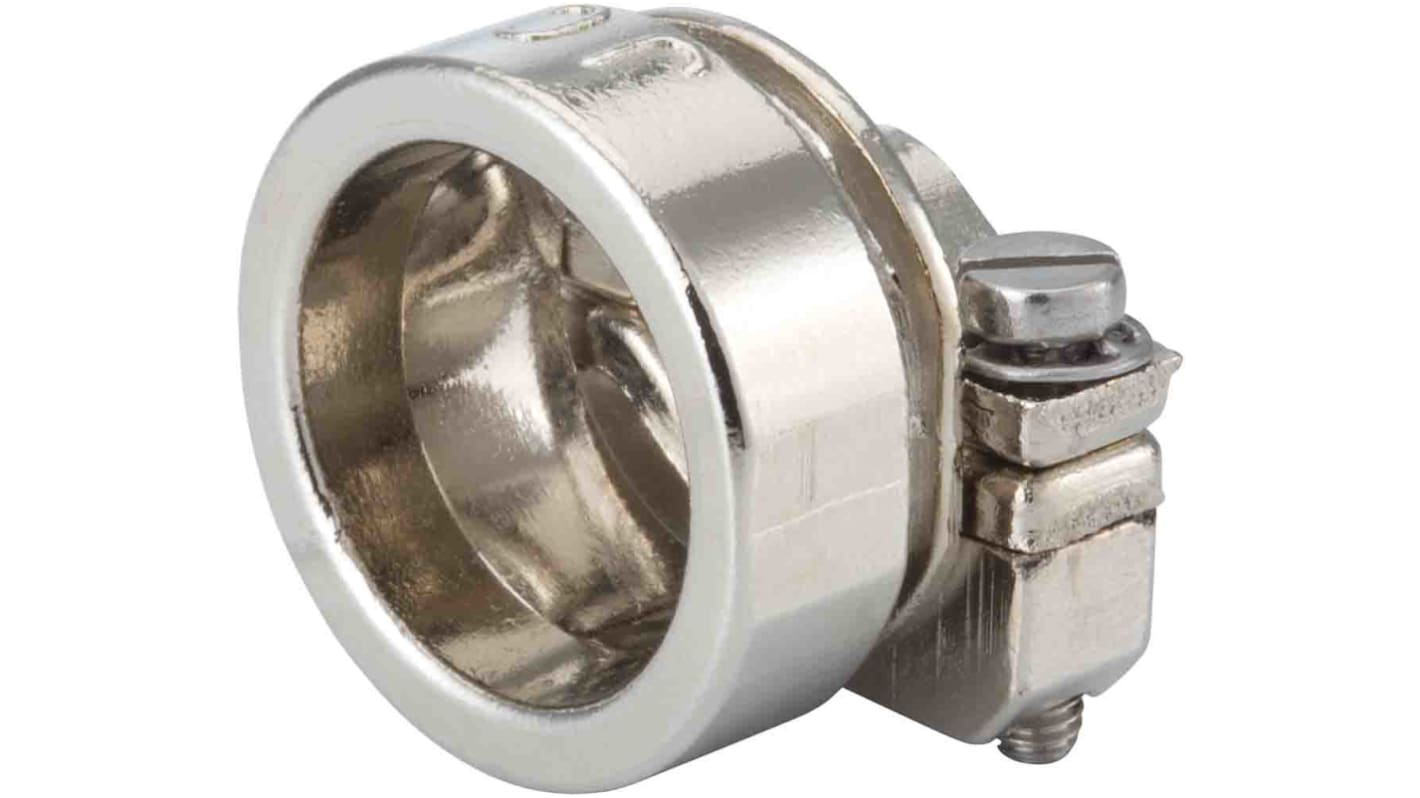

The Jaeger cable clamp has a maximum bundle diameter of 5.5mm, length of 50mm, a width of 20 mm and depth of 31mm. It offers superior durability in applications where connectors will be connected and disconnected many times. Jaeger Industrial-metal It is based upon the standard and ’rapid’ series of connectors. Bayonet locking is supplied with 3, 7, or 12 crimp contacts. Crimp tooling and an insert/extraction tool are also available.
Features and Benefits
Screw affixing method Operating temperature ranging between -40°C to 100°C
Certifications
ANSI/ESD S20.20:2014 BS EN 61340-5-1:2007 IP50 rated IP54 rated
