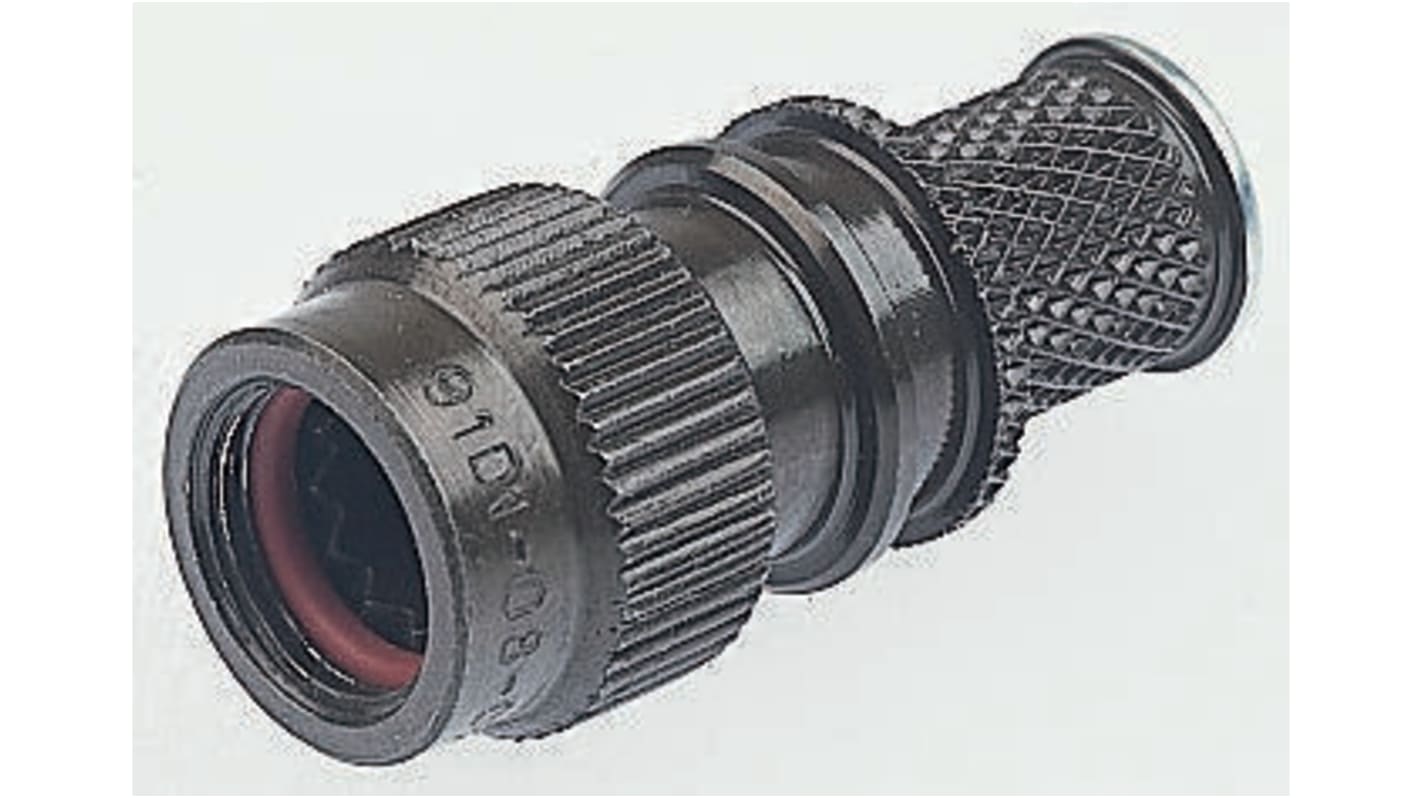

Polamco, 91Size 18 Straight Circular Connector Backshell, For Use With MIL-DTL-5015 Connector

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

본 제품군 열람하기
사용할 수 없음
RS는 더 이상 이 제품을 입고하지 않습니다.
RS 재고 번호:
241-1468
제조 부품 번호:
91L1-18-11-1-ZB
제조업체:
Polamco
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Polamco

For Use With

MIL-DTL-5015 Connector

Shell Size

18

Body Orientation

Straight

Housing Material

Aluminium Alloy

Spring Clip Size

2

Thread Size

UNEF 1-20

Length

30mm

Series

91

COO (Country of Origin):
GB

91 Series Spin Coupling Backshells, Polamco


Dual purpose spin coupling backshells may be used in conjunction with heatshrink boots or spring clips (for example, stock no. 241-1519) to terminate braided cable jacketing. The threaded coupling end rotates separately from the body so that cable is not twisted upon removal of backshell from the connector body. The mating interface of these backshells features anti-rotation teeth and a sealing 'O' ring.

Note

Series 1 fits all 62GB, AB05 and MIL-C-26482(US) solder connectors,Series 2 fits the commercial threaded (MIL-C-5015) connectors,Series 3 fits the industrial bayonet (MIL-C-5015) connectors,Series 4 fits professional threaded (MILD38999) connectors
