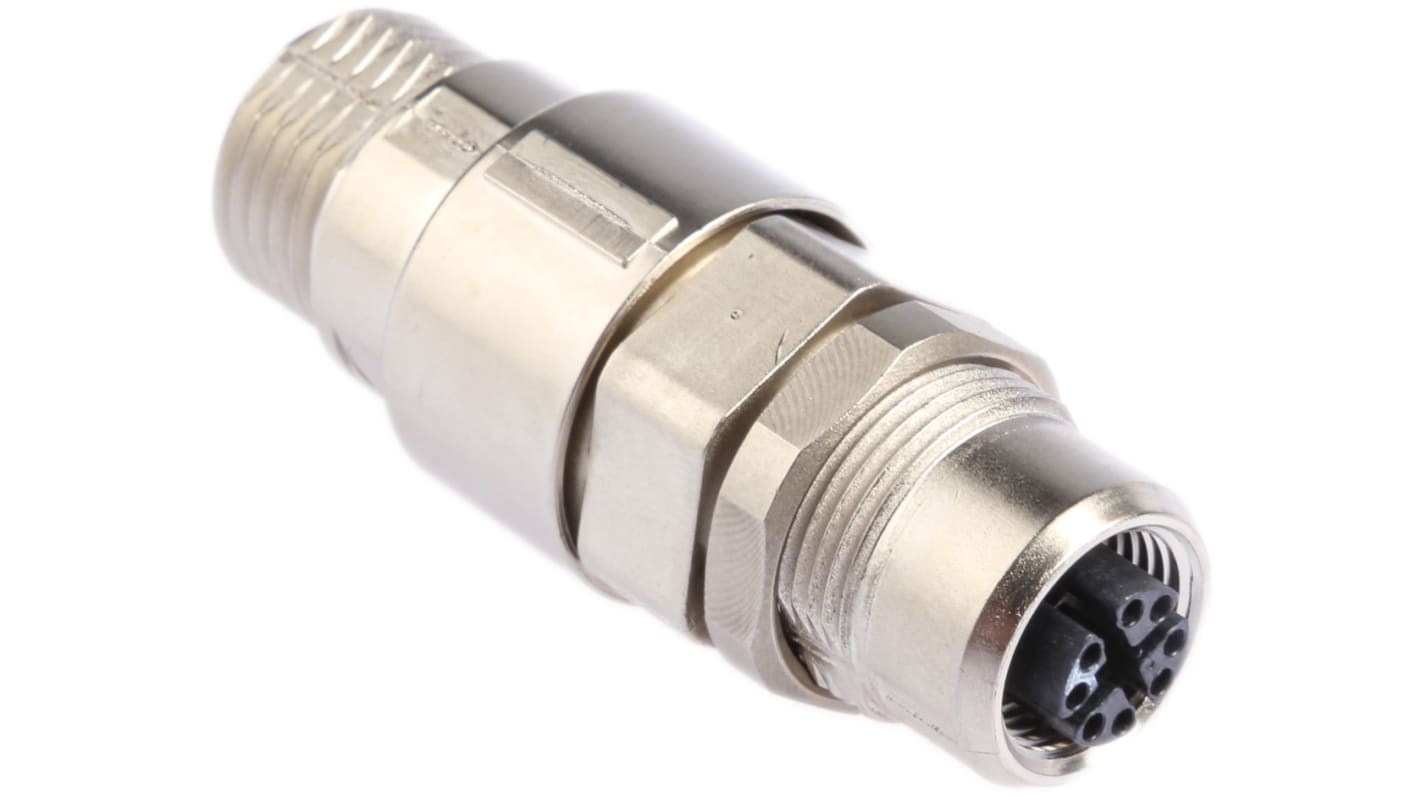

HARTING Vertical Circular Connector Adapter 8 M12 Female 8 M12 Female

RS 제품 번호:: 811-4330
Distrelec 제품 번호:: 304-01-800
제조사 부품 번호:: 21033816815
제조업체:: HARTING

HARTING Vertical Circular Connector Adapter 8 M12 Female 8 M12 Female

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal (1 unit)*

₩109,960.00

추가로 2026년 10월 26일 부터 25 개 단위 배송
추가로 2026년 12월 07일 부터 23 개 단위 배송
추가로 2026년 12월 21일 부터 34 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 4	₩109,960.00
5 - 9	₩106,680.00
10 - 24	₩103,460.00
25 - 49	₩101,040.00
50 +	₩99,040.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 811-4330
Distrelec 제품 번호:: 304-01-800
제조사 부품 번호:: 21033816815
제조업체:: HARTING

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	HARTING
	Product Type	Circular Connector Adapter
	Contact Gender A	Female
	Current	500mA
	Connector Gender A	Female
	Connector Size A	M12
	Connector Size B	M12
	Contact Gender B	Female
	Connector Gender B	Female
	Number of Contacts A	8
	Number of Ports A	4
	Number of Ports B	4
	Number of Contacts B	8
	Minimum Operating Temperature	-40°C
	IP Rating	IP65, IP67
	Maximum Operating Temperature	85°C
	Series	Harspeed
	Voltage	60V
	Standards/Approvals	CSA, IEC 61076-2-109, UL
	Orientation	Vertical
	Contact Material	Copper Alloy
	Contact Plating	Gold over Nickel
	Length	58mm

	모두 선택
	브랜드 HARTING
	Product Type Circular Connector Adapter
	Contact Gender A Female
	Current 500mA
	Connector Gender A Female
	Connector Size A M12
	Connector Size B M12
	Contact Gender B Female
	Connector Gender B Female
	Number of Contacts A 8
	Number of Ports A 4
	Number of Ports B 4
	Number of Contacts B 8
	Minimum Operating Temperature -40°C
	IP Rating IP65, IP67
	Maximum Operating Temperature 85°C
	Series Harspeed
	Voltage 60V
	Standards/Approvals CSA, IEC 61076-2-109, UL
	Orientation Vertical
	Contact Material Copper Alloy
	Contact Plating Gold over Nickel
	Length 58mm

HARTING Harspeed Series Circular Connector Adapter, 60V Voltage, 500mA Current - 21033816815

This circular connector adapter provides a female-to-female M12 feed-through designed for industrial data and signal connections. It supports high-speed transmission and is intended for harsh environments where waterproof protection and a wide operating temperature range are required. The adapter employs screw locking and is suitable for vertical panel-mounted installations.

Features and Benefits:

• IP65/IP67 protection preserves connections in wet environments
• Cat.6A Class EA performance enables up to 500MHz data transfer
• 0.5A current rating supports low-power signal applications
• Au-over-Ni contacts resist corrosion for extended mating cycles
• Liquid crystal polymer insert ensures dimensional stability at temperature

Applications

• Suitable for industrial Ethernet and Profinet link extensions
• Ideal for panel feed-throughs in machinery enclosures
• Used for joining M12 sensor and actuator cabling
• Can be used for outdoor junction points requiring IP67
• Suitable for factory automation vertical mounting situations

What contact material is used and why is it important?

Contacts are MADE from a copper alloy with gold-over-nickel plating to maintain low contact resistance and resist corrosive atmospheres.

What mechanical durability can I expect from mating cycles?

The connector is specified for at least 100 mating cycles to ensure repeated assembly and maintenance.

Which temperature range can the connector operate within?

It is rated for operation from -40°C to +85°C to accommodate cold-start and elevated-temperature industrial environments.

What approvals support use in regulated installations?

The accessory carries CSA and UL approvals and meets IEC 61076-2-109 specifications for M12 interconnects.
