Phoenix Contact Straight Circular Connector Adapter M12 Male M12

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Circular Connector Adapters 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩45,082.40

Add to Basket
수량 선택 또는 입력
재고있음
  • 1 개 단위 배송 준비 완료
  • 추가로 2026년 3월 12일 부터 25 개 단위 배송
  • 추가로 2026년 4월 03일 부터 15 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 1₩45,082.40
2 - 2₩44,104.80
3 +₩43,164.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
802-6984
제조사 부품 번호:
1683455
제조업체:
Phoenix Contact
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Phoenix Contact

Product Type

Circular Connector Adapter

Connector Size A

M12

Connector Gender A

Male

Current

4A

Connector Gender B

Female

Connector Size B

M12

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

90°C

IP Rating

IP65, IP67

Series

SAC-3P-M12Y/2XM12FS PE

Voltage

60 V

Standards/Approvals

UL, RoHS, EAC, cULus, cUL

Orientation

Straight

Shell Plating

Nickel Plated

Contact Plating

Nickel Gold Alloy

Contact Material

Copper Zinc Alloy

Length

50.1mm

COO (Country of Origin):
PL

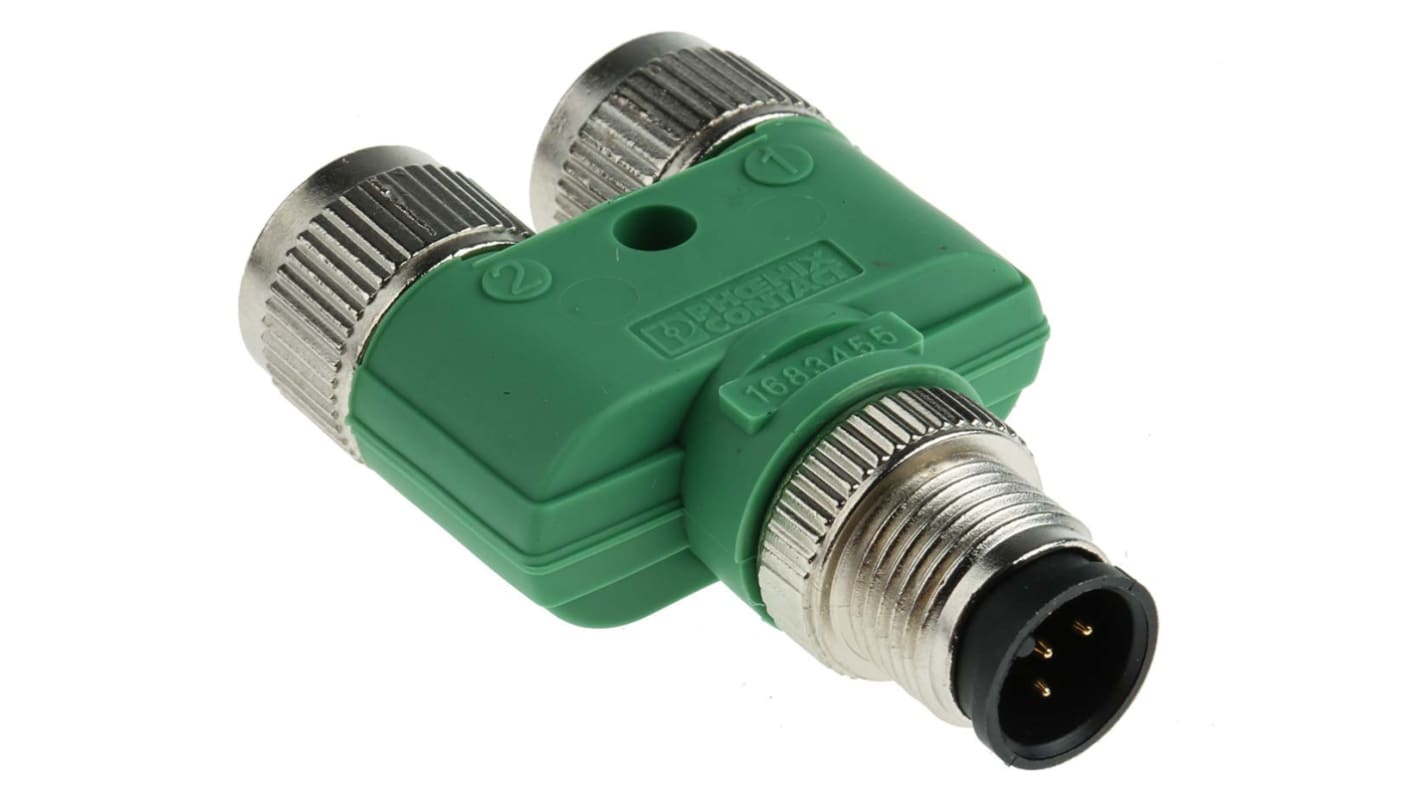

Phoenix Contact Sensor Box, M12 Connector, 3 Way - SAC-3P-M12Y/2XM12FS PE - 1683455


Distribute power or bundle signals into a Master cable with this Y connector sensor box from Phoenix Contact. It's MADE of robust die-cast zinc and self-extinguishing thermoplastic polyurethane (TPU), so you can be assured of long-lasting and safe performance. Nitrile rubber Seals keep out liquids and dirt, and a wide operating temperature range of -25°C to +90°C makes it suitable for use in harsh environments.

The M12 connectors are a standard size so are compatible with other pieces of equipment in your system. Knurled grips on the connectors help make connections and disconnections quick and smooth. The M12 screw plug is on hand to protect unoccupied sockets.

• IP67 (ingress protection) rating once mated means it can be safely submerged under 1m of water for 30 minutes

• Nickel-plated copper-zinc alloy contacts resist corrosion to ensure maximum conductivity, even in damp conditions

• Suitable for use with moulded connectors and unshielded connectors compatible with QUICKON IDC Terminal Block connection technology and with a connection range of 0.14mm² to 0.34mm²

• Straight body orientation for easy handling and versatile use

M12 Y Connector


Phoenix contact M12 Speedcon connectors, these 3 ways Y or T distribution connector are IP67 rated once mated and have a PG9 or M12 fastening thread, suitable for many applications that demand a robust multiple connections.
