Brad from Molex Straight Circular Connector Adapter 4 M8 4 M12 Male
- RS 제품 번호:
- 468-6579
- Distrelec 제품 번호:
- 303-80-905
- 제조사 부품 번호:
- 1200330001
- 제조업체:
- Brad from Molex
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩224,265.20
재고있음
- 53 개 단위 배송 준비 완료
- 추가로 2026년 3월 12일 부터 100 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩224,265.20 |
| 10 - 24 | ₩223,682.40 |
| 25 - 49 | ₩221,012.80 |
| 50 - 99 | ₩215,711.20 |
| 100 + | ₩212,308.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 468-6579
- Distrelec 제품 번호:
- 303-80-905
- 제조사 부품 번호:
- 1200330001
- 제조업체:
- Brad from Molex
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Brad from Molex | |
| Product Type | Circular Connector Adapter | |
| Connector Size A | M8 | |
| Contact Gender A | Female | |
| Current | 4A | |
| Contact Gender B | Male | |
| Connector Size B | M12 | |
| Number of Contacts A | 4 | |
| Number of Ports A | 1 | |
| Number of Contacts B | 4 | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 50°C | |
| IP Rating | IP67 | |
| Standards/Approvals | No | |
| Voltage | 60 V ac, 75 V dc | |
| Orientation | Straight | |
| Contact Material | Copper Alloy Gold Plated | |
| 모두 선택 | ||
|---|---|---|
브랜드 Brad from Molex | ||
Product Type Circular Connector Adapter | ||
Connector Size A M8 | ||
Contact Gender A Female | ||
Current 4A | ||
Contact Gender B Male | ||
Connector Size B M12 | ||
Number of Contacts A 4 | ||
Number of Ports A 1 | ||
Number of Contacts B 4 | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 50°C | ||
IP Rating IP67 | ||
Standards/Approvals No | ||
Voltage 60 V ac, 75 V dc | ||
Orientation Straight | ||
Contact Material Copper Alloy Gold Plated | ||

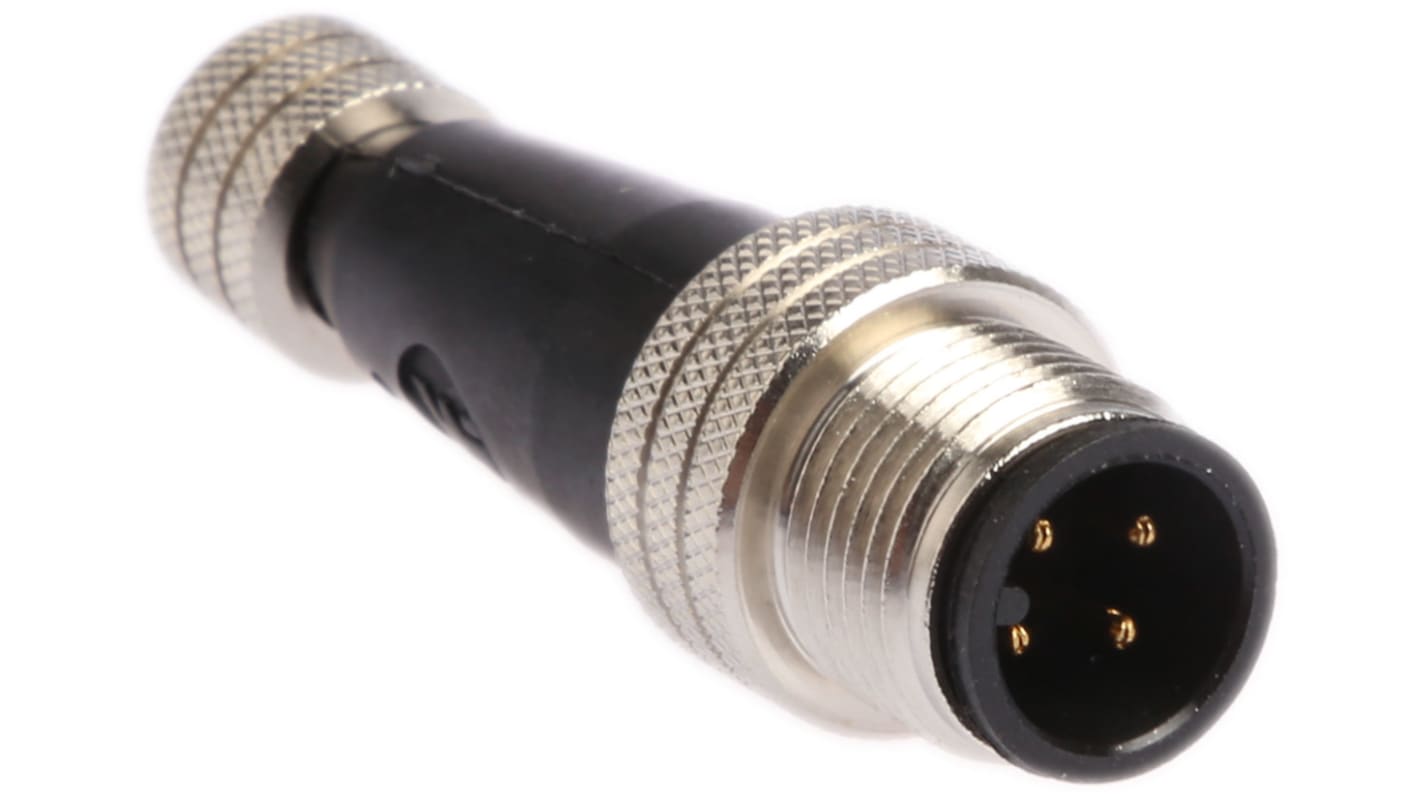

Brad from Molex 4 Pole M8 Socket to 4 Pole M12 Plug Adapter, IP67 - 1200330001
Use Brad from Molex's weatherproof adapter to establish secure connections in your industrial control applications. The connector's housing is made of durable polyurethane (PUR) which provides resistance to impact and protects you from electric shocks. With a compact overall length of 50mm, this connector is suitable for installation in busy enclosures. Its copper-alloy contacts are highly conductive, so deliver a reliable connection. These contacts are also gold plated, so they withstand oxidation and rust to ensure long-term performance. Adapters like this are frequently used in the manufacturing and automotive industries.
• Nickel-plated brass coupling nut with knurled surface for easy ightening with or without gloves
• IP67 (ingress protection) rating means it's dust-tight and able to withstand 30 minutes immersion in 1m of water
• Straight body orientation makes it easy to plug in and remove
Applications
• Pick-and-place robots
• Ground vehicle networks
• Conveyor systems
What's the operating temperature range of this adapter?
This component has an operating temperature range of 0°C to +50°C, so it's suitable for use in demanding industrial environments.
Adaptors M12/M8
These Brad® adaptors are available in various combinations of sizes, poles and genders.
Available in:
Nano-Change® M8 to Micro-Change® M12 male to female 3 and 4 pole
Micro-Change® M12 to Nano-Change® M8 female to male 3 and 4 pole
Ultra-Lock® M12 Female to Male 5 pole
