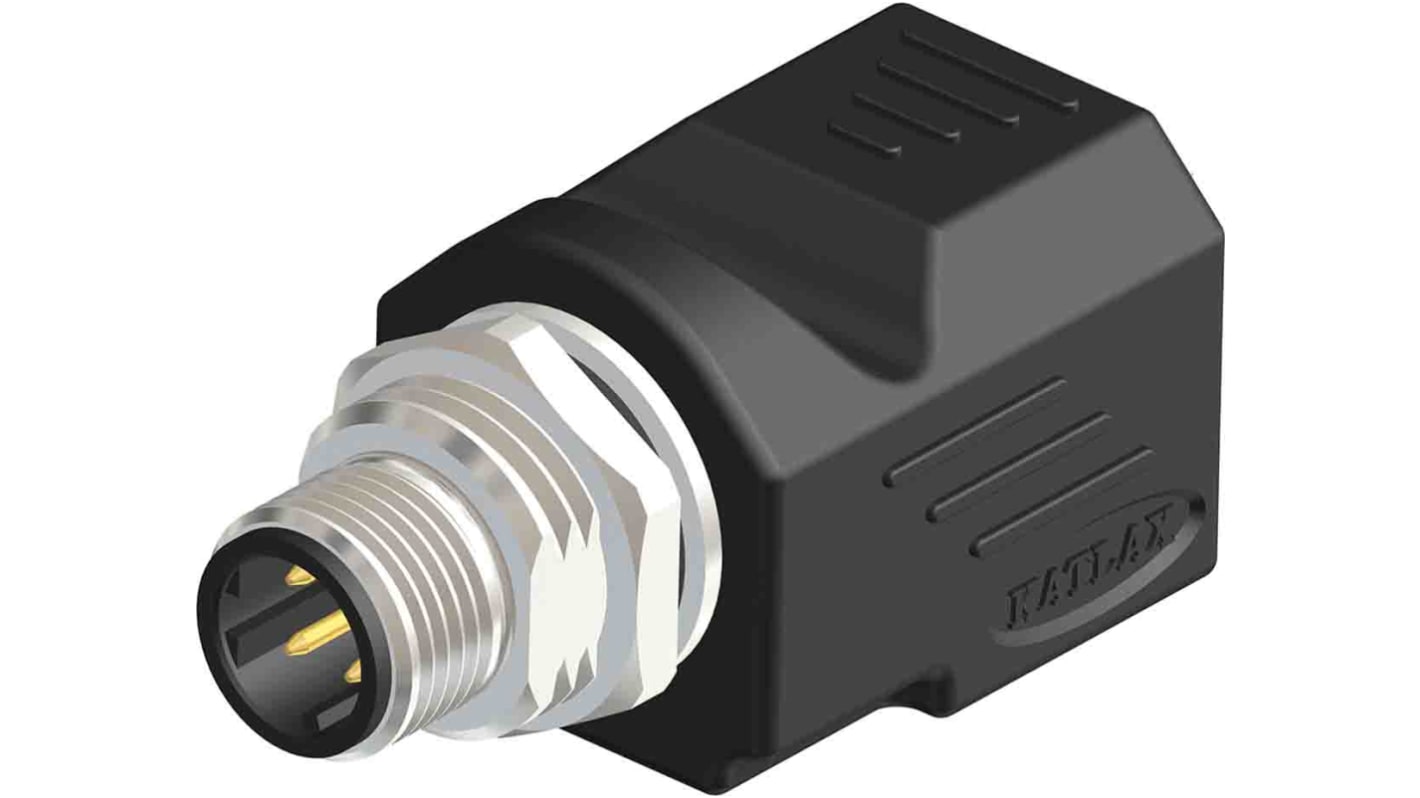

Name: RS PRO Right Angle 1 Pole M12 Plug to 1 Pole Socket Adapter
Brand: RS PRO
SKU: 201-7086
Price: 36716.40 KRW
Availability: InStock

RS PRO M12 to RJ54 Adapter

Introducing the RS PRO M12 to RJ54 Adapter, ideal for use within industrial applications to offer greater flexibility. The adapter has been designed with unshielded D-coded connectors that allows the connection of an M12 and RJ54 cable. In addition to this, the M12 connection end is IP67 rated making it ultra-durable, protecting the internal connections, making it an ideal solution where a rugged and reliable connection is required in harsh environments.

Features and Benefits:

This high-performance RS PRO M12 to RJ54 Adapter allows an M12 connection to be adapted and fed into an RJ54 connection

It’s compatible with many industry-standard connections, offering reliable and intelligent communication and optimum connectivity

The ultra-durable connector is IP67/IP20 rated, making it ideal for use in difficult environments with extreme temperatures, UV or moisture exposure, or where contact with chemicals or oils could occur

It is quick and easy to install, making it user-friendly and saving on valuable installation time

This type of adapter is most suited to industrial applications

Applications:

Industrial circular connector adapters are heavy-duty and versatile products that help transmit data, electrical signals, or power to machinery or peripheral components, like sensors and actuators. They are generally designed to withstand extreme temperature changes and moisture, exposure to chemicals, oils and UV, as well as any abrasions or wear that can be caused by machinery vibration to ensure the protection of the internal wires. These types of industrial connectors are most commonly found in:

Instrumentation

Process control

Robotics

Assembly lines and manufacturing

Factory automation

Industrial production and automation

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

수량	한팩당
1 - 9	₩36,716.40
10 - 49	₩35,250.00
50 - 99	₩33,783.60
100 +	₩33,050.40

모두 선택	제품 정보	값
	브랜드	RS PRO
	End 1	4 Pin Male M12
	End 1 Number of Contacts	1
	End 1 Number of Ports	1
	End 1 Gender	Male
	End 2	8 Pin Female RJ45
	End 1 Size	M12
	End 2 Number of Contacts	1
	End 2 Gender	Female
	Current Rating	1.5A
	IP Rating	IP20, IP67
	Voltage Rating	120 Vac
	Body Orientation	Right Angle
	Contact Plating	Gold Flash
	Contact Material	Copper Alloy, CuZn
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	+70°C

	모두 선택
	브랜드 RS PRO
	End 1 4 Pin Male M12
	End 1 Number of Contacts 1
	End 1 Number of Ports 1
	End 1 Gender Male
	End 2 8 Pin Female RJ45
	End 1 Size M12
	End 2 Number of Contacts 1
	End 2 Gender Female
	Current Rating 1.5A
	IP Rating IP20, IP67
	Voltage Rating 120 Vac
	Body Orientation Right Angle
	Contact Plating Gold Flash
	Contact Material Copper Alloy, CuZn
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature +70°C
