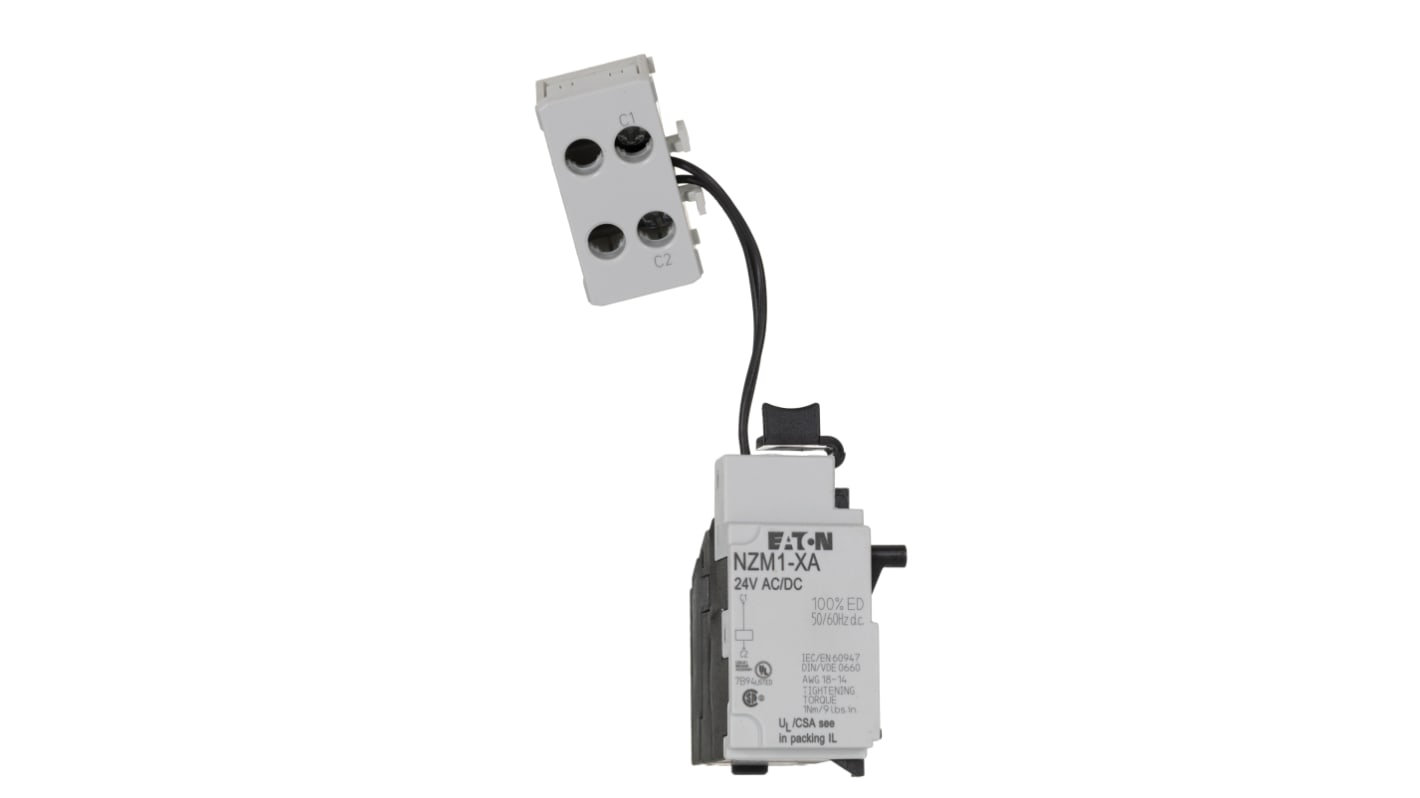

Eaton 24V Shunt Trip for use with NZM1(-4) Series, N(S)1(-4) Series

모든 Circuit Trips 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩165,646.80

Add to Basket
수량 선택 또는 입력
재고있음
  • 8 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 5₩165,646.80
6 - 11₩161,003.20
12 +₩154,385.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
454-8203
제조사 부품 번호:
259708 NZM1-XA24AC/DC
제조업체:
Eaton
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Eaton

Product Type

Shunt Trip

Range

Xboard

Series

NZM1

For Use With

NZM1(-4) Series, N(S)1(-4) Series

Terminal Type

Screw

Standards/Approvals

IEC 60947, UL 489, IEC, CSA, UL, CE

Control Voltage

24V

제외

COO (Country of Origin):
DE

Eaton Shunt Trip, 20ms Opening Delay, 24V AC/DC Rated Control Voltage - NZM1 Series - 259708 NZM1-XA24AC/DC


Give your circuit breaker the oomph to handle ground faults, short circuits and thermal overloads with this shunt trip from Eaton. It pairs with an MCCB to provide a remote shut-off option for increased protection against electrical hazards. Thanks to its rated control voltage of 24V AC/DC, it's compatible with a broad range of low-power systems. For ease of assembly, the unit's designed for use with circuit breakers in the NZM1(-4) and N(S)1(-4) series. You'll find it commonly used in industrial, commercial and domestic electrical networks.

Features & Benefits


• Screw terminals for secure and vibration-proof wiring

• Accepts solid or flexible conductors for versatility

How do I choose the right shunt trip for my setup?


The electrical profile of your application will determine which shunt trip you need. It's important to make sure the trip is compatible with the control voltage and current demands of your equipment in order to avoid nuisance trips.

How quickly does this shunt trip disconnect the power when electrical faults occur?


It disconnects power feeds in 20ms or less, so you can count on it to act quickly in the event of an emergency.

Note

Eaton formerly known as Moeller
