대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩60,667.60
재고있음
- 35 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩60,667.60 |
| 10 - 24 | ₩58,731.20 |
| 25 - 49 | ₩58,637.20 |
| 50 - 249 | ₩58,543.20 |
| 250 + | ₩48,184.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 504-628
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Primary Voltage Rating | 230V ac | |
| Secondary Voltage Rating | 20V ac | |
| Power Rating | 50VA | |
| Number of Outputs | 2 | |
| Mounting Type | Chassis | |
| Primary Winding Resistance | 44Ω | |
| Efficiency | 84% | |
| Length | 79mm | |
| Width | 65mm | |
| Depth | 62mm | |
| Dimensions | 79 x 65 x 62mm | |
| Fixing Hole Diameter | 4.7 x 9.5mm | |
| Weight | 1kg | |
| Minimum Operating Frequency | 50Hz | |
| Standards Met | IEC 61558-2-6 | |
| Maximum Operating Frequency | 60Hz | |
| Minimum Temperature | -30°C | |
| Maximum Temperature | (Ambient) 70°C | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Primary Voltage Rating 230V ac | ||
Secondary Voltage Rating 20V ac | ||
Power Rating 50VA | ||
Number of Outputs 2 | ||
Mounting Type Chassis | ||
Primary Winding Resistance 44Ω | ||
Efficiency 84% | ||
Length 79mm | ||
Width 65mm | ||
Depth 62mm | ||
Dimensions 79 x 65 x 62mm | ||
Fixing Hole Diameter 4.7 x 9.5mm | ||
Weight 1kg | ||
Minimum Operating Frequency 50Hz | ||
Standards Met IEC 61558-2-6 | ||
Maximum Operating Frequency 60Hz | ||
Minimum Temperature -30°C | ||
Maximum Temperature (Ambient) 70°C | ||
- COO (Country of Origin):
- PL

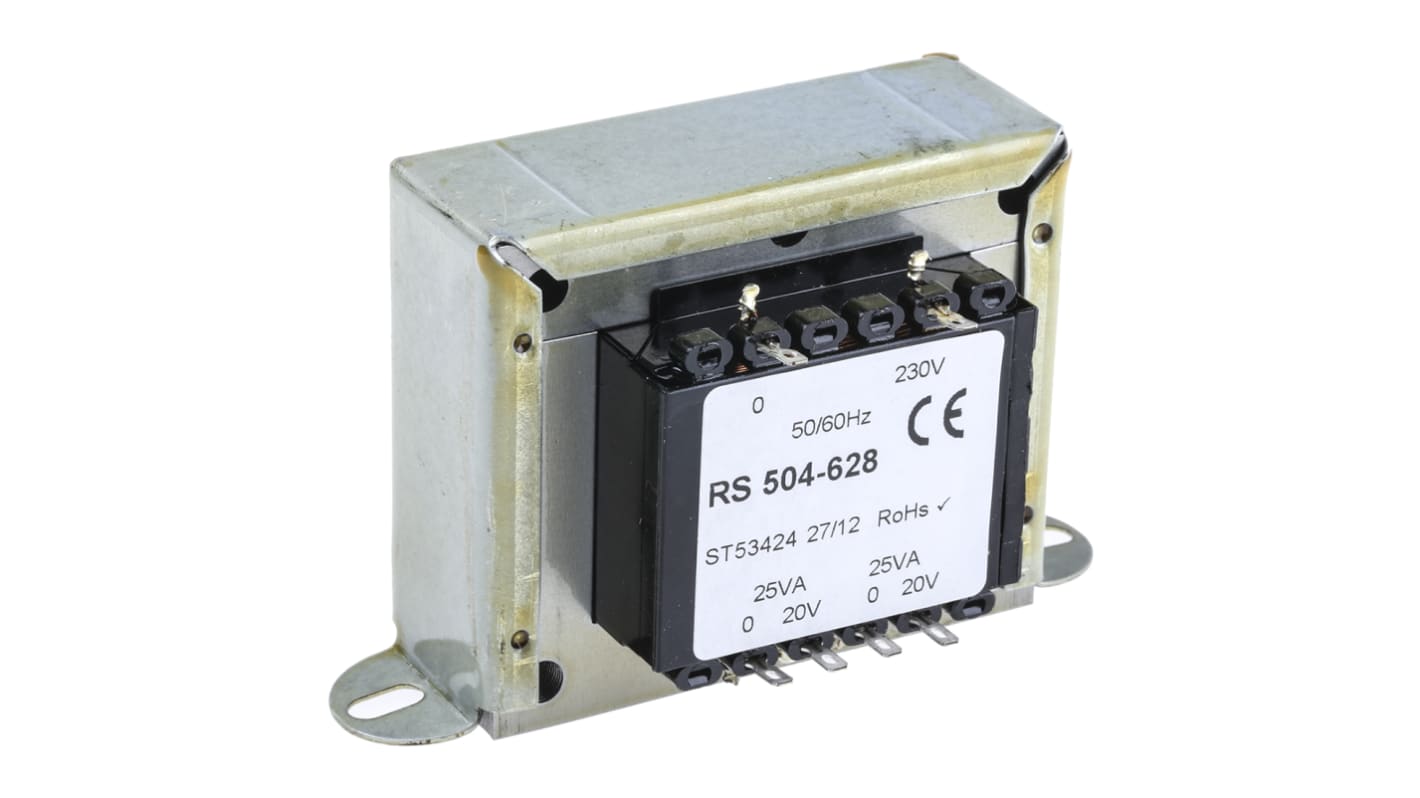

Chassis Mount, Clamp Construction, 230Vac, 6V to 50V
Chassis mounting low voltage mains transformers with a single 230Va.c. 50/60Hz primary winding. The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Double section bobbin construction
Fully shrouded bobbins
Full varnish impregnation
Two hole fixing wrap-over clamps
Solder tag terminations
Optional terminal shrouds
100% electrical and flash tested
Tested in accordance with BS3535 and EN 60 742
Fully shrouded bobbins
Full varnish impregnation
Two hole fixing wrap-over clamps
Solder tag terminations
Optional terminal shrouds
100% electrical and flash tested
Tested in accordance with BS3535 and EN 60 742
Chassis Mount, Clamp Construction, 230Vac, 6VA to 50VA
Chassis mounting low voltage mains transformers with a single 230Va.c. 50/60Hz primary winding. The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Features and Benefits
"Double section bobbin construction
Fully shrouded bobbins
Full varnish impregnation
Two hole fixing wrap-over clamps
Solder tag terminations
Optional terminal shrouds (example 503-912 )
100% electrical and flash tested
Tested in accordance with BS3535 and EN 60 742"
Chassis mounting low voltage mains transformers with a single 230Va.c. 50/60Hz primary winding. The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Features and Benefits
"Double section bobbin construction
Fully shrouded bobbins
Full varnish impregnation
Two hole fixing wrap-over clamps
Solder tag terminations
Optional terminal shrouds (example 503-912 )
100% electrical and flash tested
Tested in accordance with BS3535 and EN 60 742"
Standards
BS3535; EN 60 742
