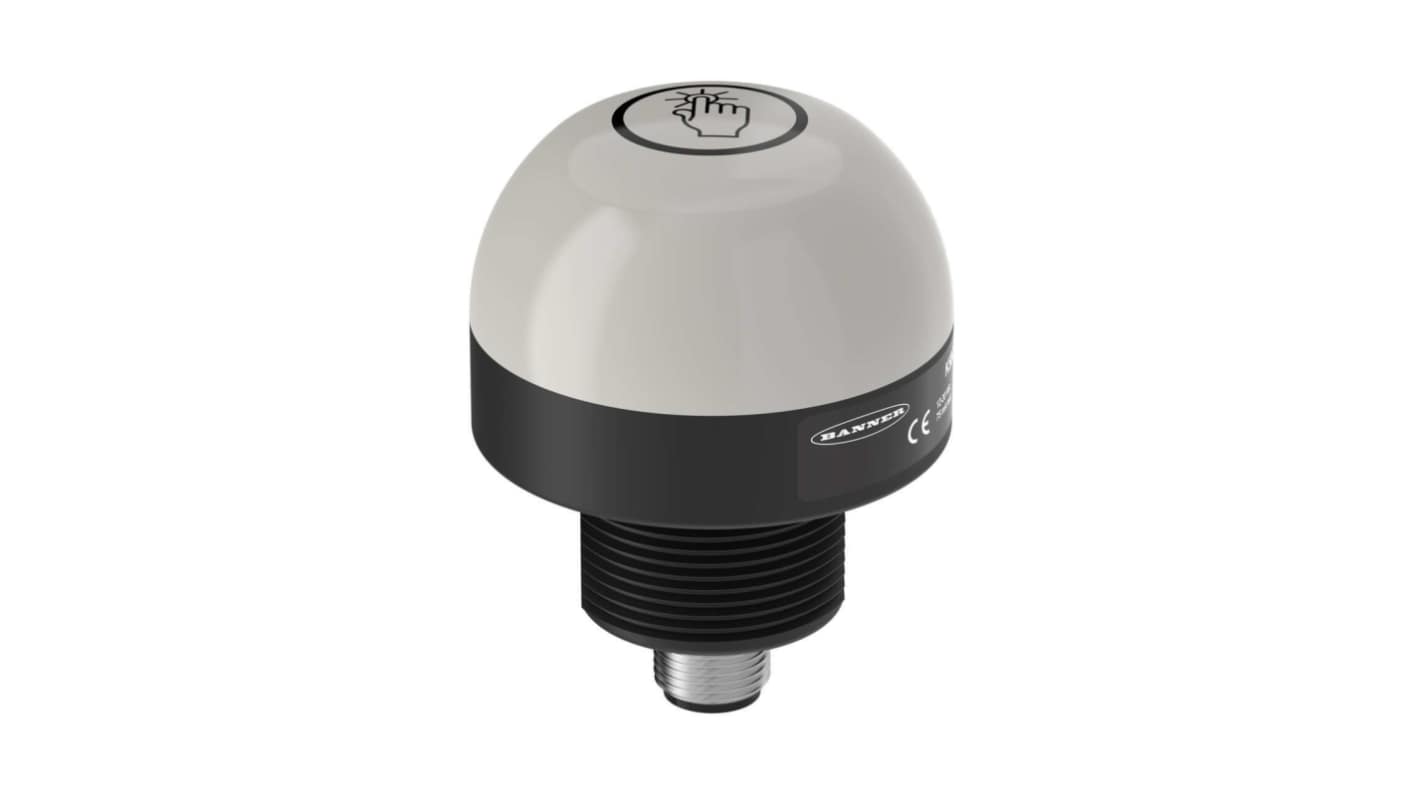

Banner Capacitive switch Momentary Manual Illuminated, White, PNP, IP69K, IP67 Polycarbonate

모든 Capacitive Switches 열람하기

Subtotal (1 unit)*

₩255,163.00

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 5월 08일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩255,163.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
295-199
제조사 부품 번호:
K50APTWXDQ
제조업체:
Banner
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Banner

Product Type

Capacitive switch

Switch Operation

Momentary

Switch Type

Capacitive

Switch Function

Manual

LED Colour

White

Housing Material

Polycarbonate

Illuminated

Yes

Maximum Input Voltage

30V

Output Type

PNP

Housing Colour

Black

Minimum Input Voltage

12V

IP Rating

IP69K, IP67

Series

K50

Minimum Operating Temperature

-40°C

Contact Material

Polycarbonate

Maximum Operating Temperature

50°C

Standards/Approvals

cULus, RoHS, IEC 947-5-2, CE, DIN 40050-9

Depth

50mm

Height

66mm

Width

50 mm

Current Rating

75 mA

COO (Country of Origin):
US
The Banner EZ-LIGHT Touch K50 Series Pick to Light offers rugged, cost effective, and easy to install solutions for error-proofing and parts verification applications. These compact, self contained devices require no external controller, simplifying setup and reducing complexity. Featuring an illuminated dome, the K50 Series provides a clear, easy to see green job light, with some models also offering a red light for alternate operations.

Waterproof IP69K per DIN 40050-9 construction for wash down environments

Easy actuation and no force required

12 V DC to 30 V DC operation

Can be actuated with bare hands or gloves
