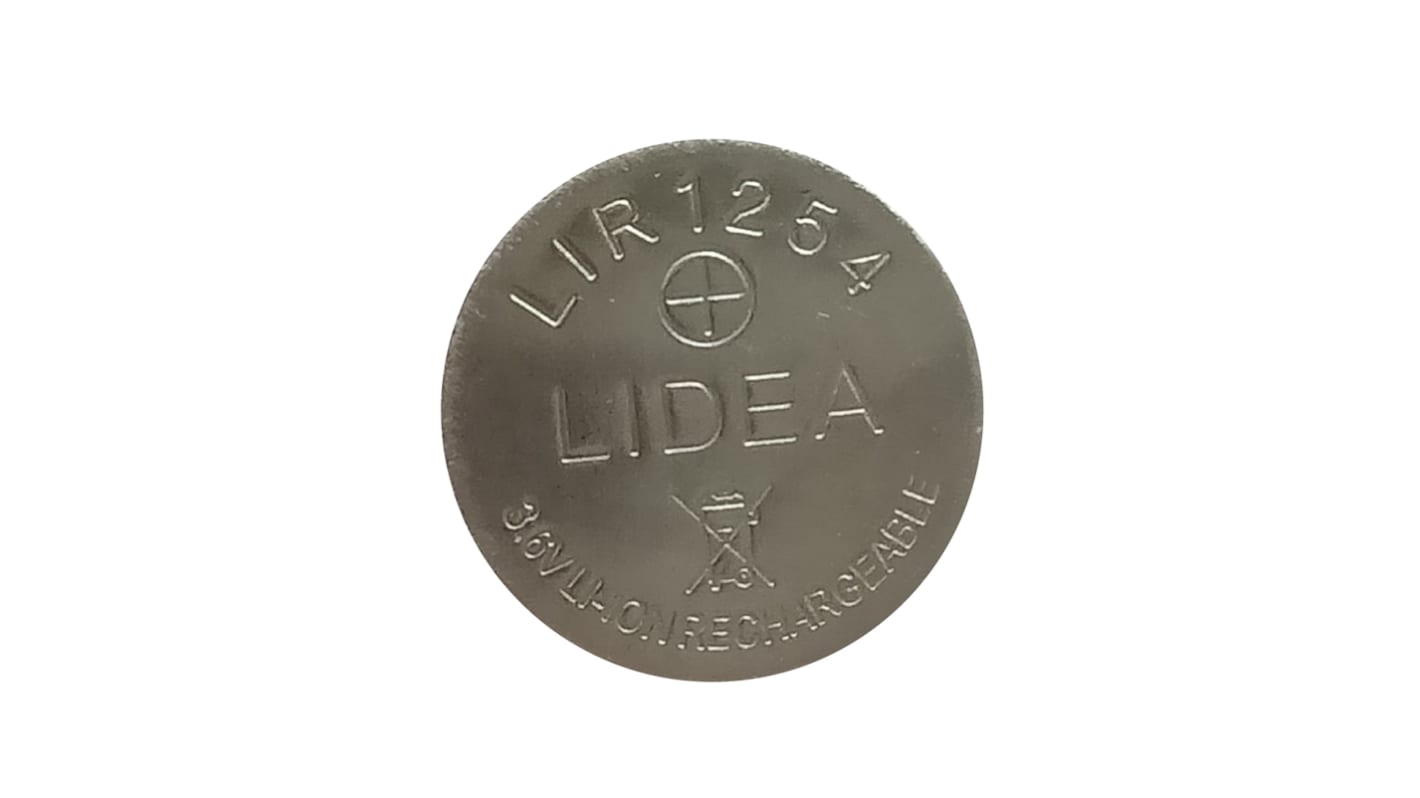

RS PRO LIR1254 3.6V Lithium Button Rechargeable Battery, 45mAh

본 제품군 열람하기

Subtotal (1 unit)*

₩5,038.40

Add to Basket
수량 선택 또는 입력
재고있음
  • 328 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩5,038.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
183-4285
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Nominal Voltage

3.6V

Capacity

45mAh

Size

LIR1254

Diameter

12mm

Chemistry

Lithium

Terminal Type

Standard

Typical Application

Memory Back Up

Mounting Orientation

Vertical

Operating Temperature Range

-20 → +60°C

Maximum Operating Temperature

+60°C

Minimum Operating Temperature

-20°C

COO (Country of Origin):
CN

RS PRO Button Battery


The RS PRO 45mAh button battery has a size of LIR2154 and a nominal voltage of 3.6V. It has a chemical composition of Lithium-ion and a diameter of 12mm. It has a full charging voltage of 4.2V and cut -off of 2.75V.

Features and Benefits


• Cycle life is 500 cycles
• Maximum charge current of 45mA
• Maximum discharge current of 45mA
• Operating temperature ranges between 0°C and 45°C

Applications


• Flashlight
• Badge
• Industrial control equipment power
• LED lamp
• RTC (Real time clock modules)

This item is Lithium cell / battery product (or contains Lithium cells / batteries) which needs to be shipped by sea freight. There will be extension of lead time (around 90 days) for global stock.
