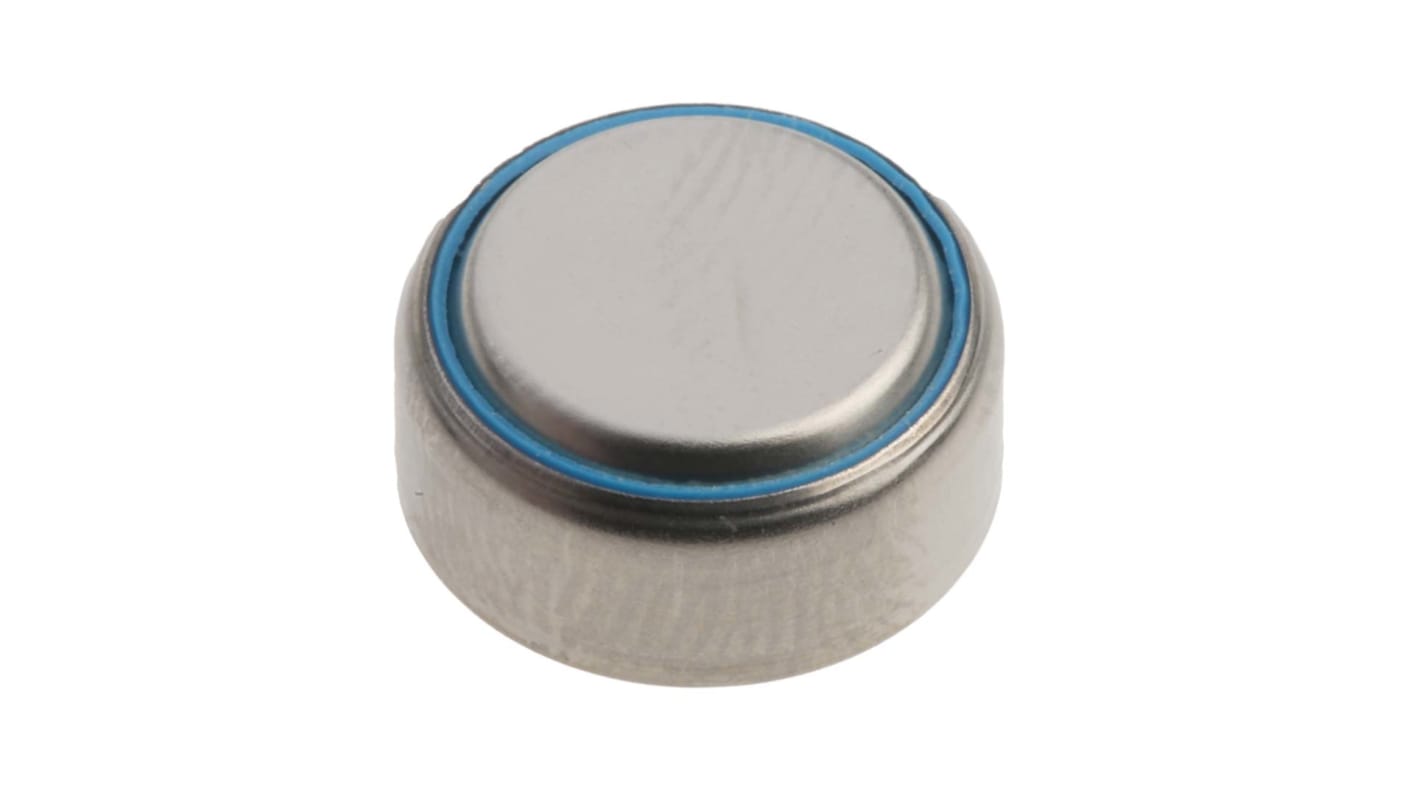

Duracell PR44 Button Battery, 1.4 V, 11.6 mm Diameter, 6 Pack

RS 제품 번호:: 798-9391
제조업체:: Duracell

Duracell PR44 Button Battery, 1.4 V, 11.6 mm Diameter, 6 Pack

Subtotal (1 pack of 6 units)*

₩16,260.00

현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.

수량	한팩당	한팩당*
6 +	₩2,710.00	₩16,260.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 798-9391
제조업체:: Duracell

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Duracell
	Battery Size	PR44
	Product Type	Button Battery
	Chemistry	Zinc Air
	Nominal Voltage	1.4V
	Battery Capacity	610mAh
	Diameter	11.6mm
	Number of Batteries	6
	Termination Type	Standard
	Weight	1.8g
	Standards/Approvals	ANSI, IEC
	Height	5.4mm
	Series	Duracell EasyTab
	IEC Code	PR44

	모두 선택
	브랜드 Duracell
	Battery Size PR44
	Product Type Button Battery
	Chemistry Zinc Air
	Nominal Voltage 1.4V
	Battery Capacity 610mAh
	Diameter 11.6mm
	Number of Batteries 6
	Termination Type Standard
	Weight 1.8g
	Standards/Approvals ANSI, IEC
	Height 5.4mm
	Series Duracell EasyTab
	IEC Code PR44

Zinc Air Battery 675 Data Sheet

Duracell EasyTab Series Button Battery, 1.4V Nominal Voltage, 610mAh Rated Capacity - 96077580

This button battery provides a Compact zinc-air power source for low-drain medical devices. It operates at a nominal voltage of 1.4V and is designed for room-temperature use. The cell delivers a capacity that varies with load, temperature and cut-off voltage and features flat terminals for straightforward installation.

Features and Benefits:

• 610 mAh rated capacity provides extended service life
• Zinc-air chemistry offers high energy density per volume
• 3 Ω internal impedance supports steady low-current delivery
• Operates between 0°C and 50°C for typical ambient conditions
• Flat terminals with standard termination simplify battery replacement

Applications

• Suitable for behind-the-ear hearing instruments
• Used with single-channel sound processors
• Ideal for replacement packs containing six cells
• Can be used for in-ear assistive listening devices

What is the expected delivered capacity dependency?

Delivered capacity depends on applied load, operating temperature and cut-off voltage and will vary accordingly.

How is the cell’s physical volume and mass described?

The cell occupies approximately 0.57cm3 and has an average mass of 1.8g.

What are typical discharge conditions referenced?

Typical discharge examples include intermittent and continuous low-current patterns such as 15mA pulses and multi-hour 5 to 8mA draws at 21°C.

Which standards approvals are cited for this product?

The cell meets both ANSI and IEC approvals.

Warning

Keep button batteries out of the reach of children. Consult a doctor immediately if ingested.
