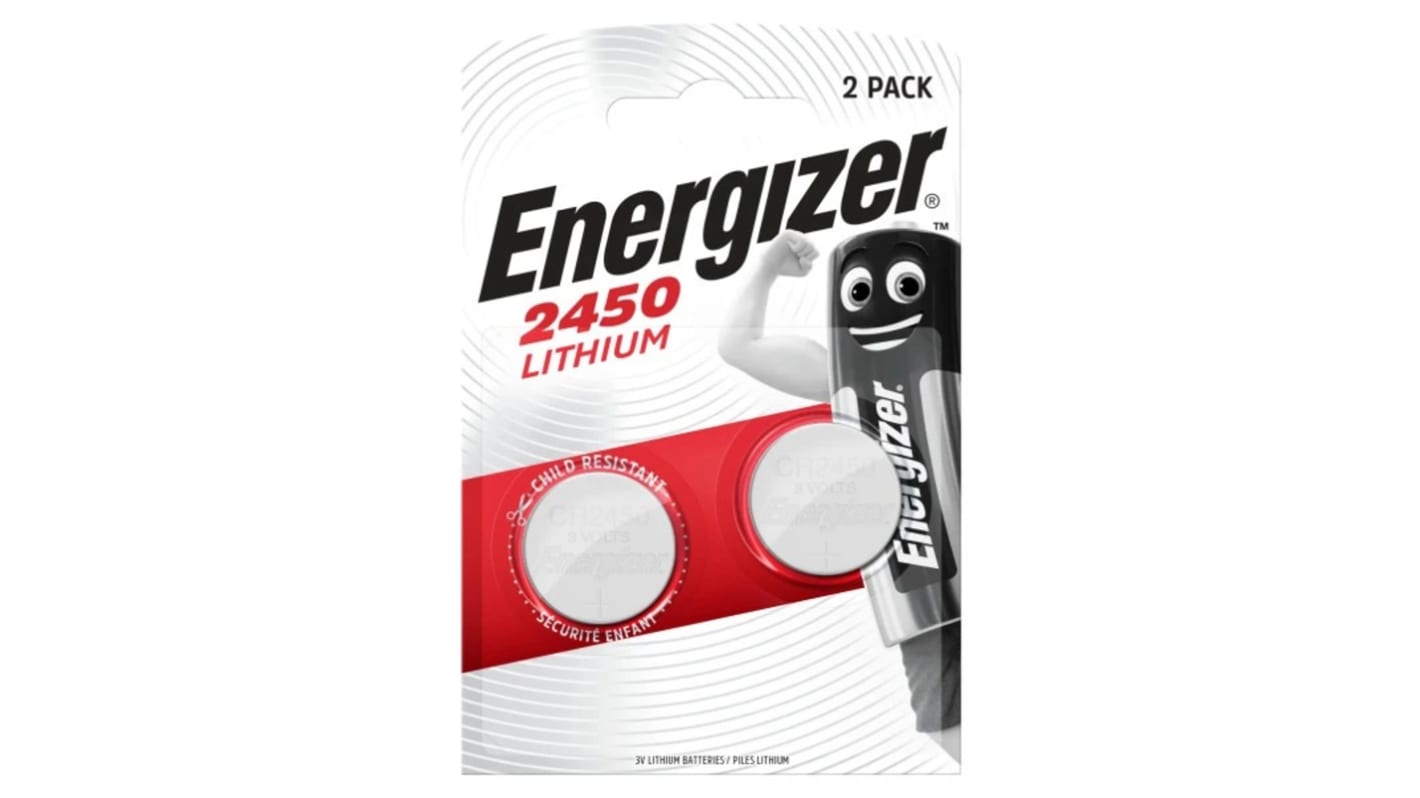

Energizer CR2450 Button Battery, 3 V, 22 mm Diameter, 2 Pack

모든 Button Batteries 열람하기

Subtotal (1 pack of 1 unit)*

₩6,680.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 1,110 개 단위 배송 준비 완료
  • 추가로 2026년 10월 05일 부터 1,680 개 단위 배송
  • 추가로 2026년 10월 23일 부터 2 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
팩
한팩당
1 +₩6,680.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
108-831
Distrelec 제품 번호:
300-48-174
제조사 부품 번호:
7638900381795
제조업체:
Energizer
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Energizer

Battery Size

CR2450

Product Type

Button Battery

Chemistry

Lithium Manganese Dioxide

Nominal Voltage

3V

Battery Capacity

620mAh

Diameter

22mm

Number of Batteries

2

NEDA Code

5029LC

Termination Type

Flat

Weight

6.8g

Standards/Approvals

ANSI/NEDA-5029LC, IEC-CR2450

Height

5mm

Series

CR

IEC Code

CR2450

COO (Country of Origin):
ID

Energizer Series CR Button Battery, 3V Nominal Voltage, 620mAh Capacity - 7638900381795


This button battery is a 3V lithium coin cell designed to power small electronic devices that require a stable low-current supply over long periods. It uses a lithium/manganese dioxide chemical system and is supplied as a two-cell pack for applications needing spare or multiple batteries. The cell is suited to environments with broad temperature ranges and low self-discharge for extended shelf life.

Features and Benefits:


• 620mAh typical capacity delivers extended service life
• Flat termination enables compact, low-profile installations
• Operating range −30°C to 60°C supports varied environmental use
• Self-discharge ≈1%/year preserves stored charge over time
• Background drain 0.39mA at 2.9V maintains low continuous load

Applications


• Suitable for watches and small timing devices
• Used with key fobs and remote sensors
• Ideal for medical monitors and glucose metres
• Can be used for memory backup in electronics
• Suitable for coin-operated metres and security tags

What is the typical mass and energy density of the cell?


The cell weighs 6.8 g and has energy densities of 183 mW·h/g and 647 mW·h/cc.

How does the cell behave under Pulse discharge conditions?


Under 2 s pulses 12 times/day with a 300 Ω load it delivers about 9.0 mA at 2.7 V during pulses.

What is the maximum allowable reverse charging current?


Reverse charging is limited to a maximum of 1 μA.

How long will the cell last under a continuous 7.5 kΩ load at 21°C?


Under a 7.5 kΩ continuous load it provides service for approximately 1590 hours to a 2.0 V cut-off.

What is the typical lithium content and safety consideration for ingestion?


Typical lithium content is less than 0.3 g and ingestion can cause severe injury, seek immediate medical attention if swallowed.
