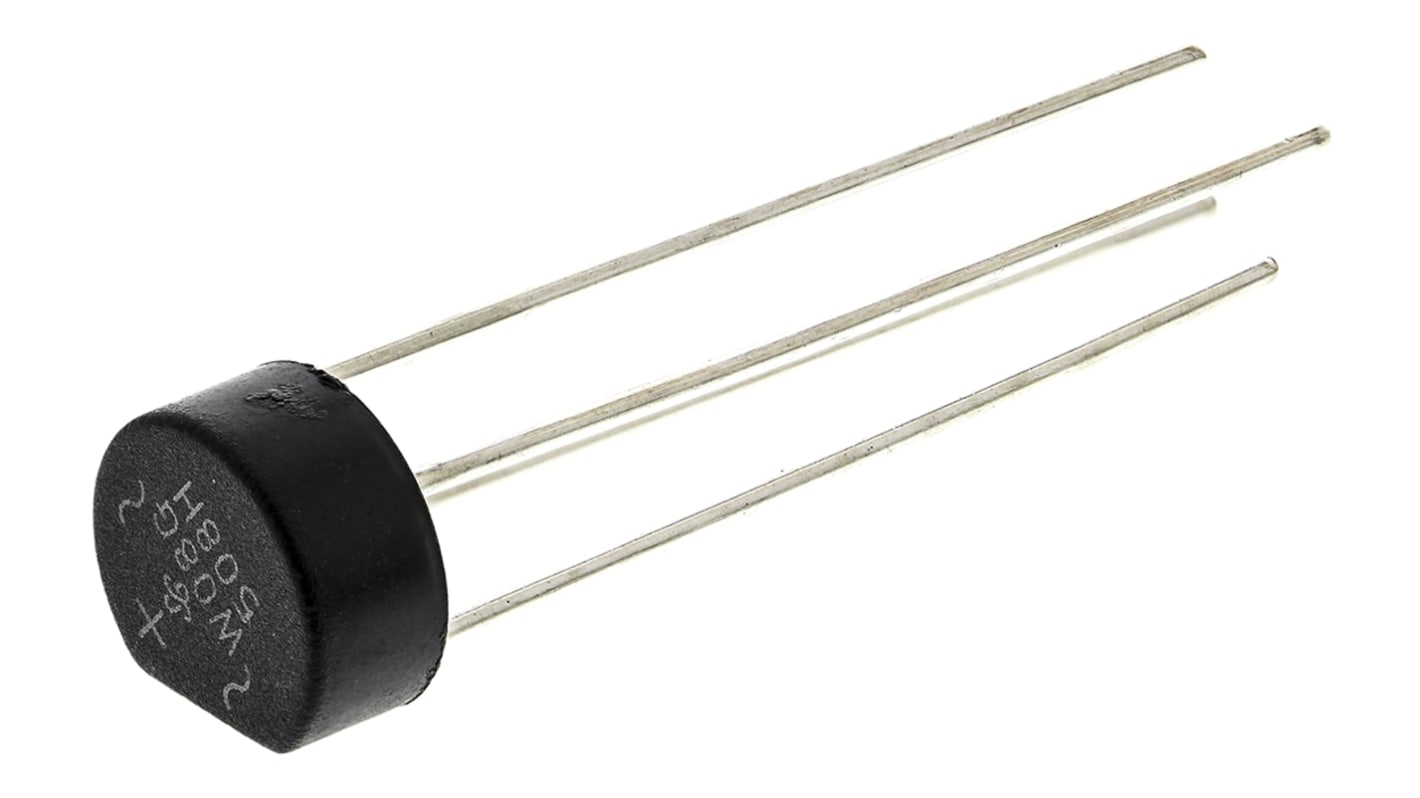

Vishay Bridge Rectifier, 800 V 50 A, 4-Pin Single

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Bridge Rectifiers 열람하기
대량 구매 할인 기용 가능

Subtotal (1 pack of 5 units)*

₩3,590.80

Add to Basket
수량 선택 또는 입력
재고있음
  • 775 개 단위 배송 준비 완료
  • 추가로 2026년 2월 13일 부터 1,495 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
한팩당*
5 - 20₩718.16₩3,590.80
25 - 95₩684.32₩3,421.60
100 - 245₩680.56₩3,402.80
250 - 495₩673.04₩3,365.20
500 +₩669.28₩3,346.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
629-5169
제조사 부품 번호:
W08G-E4/51
제조업체:
Vishay
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Vishay

Product Type

Bridge Rectifier

Peak Reverse Repetitive Voltage Vrrm

800V

Mount Type

Through Hole

Number of Phases

1

Package Type

WOG

Pin Count

4

Configuration

Single

Maximum Operating Temperature

150°C

Forward Current If

1.5A

Peak Non-Repetitive Forward Surge Current Ifsm

50A

Minimum Operating Temperature

-55°C

Peak Forward Voltage Vf

1V

Peak Reverse Current Ir

5μA

Diameter

9.86 mm

Height

5.6mm

Standards/Approvals

No

Width

8.84 mm

Length

9.86mm

Series

W08G

Automotive Standard

No

Vishay WxxG Series Bridge Rectifier


• UL recognition, file number E54214

• Ideal for printed circuit boards

• Typical IR less than 0.1 μA

• High case dielectric strength

• High surge current capability

• Solder dip 275 °C max. 10 s, per JESD 22-B106

• Material categorization: For definitions of compliance

TYPICAL APPLICATIONS

General purpose use in AC/DC bridge full wave rectification

for power supply, adapter, charger, lighting ballaster on

consumers, and home appliances applications.

MECHANICAL DATA

Case: WOG

Molding compound meets UL 94 V-0 flammability rating

Base P/N-E4 - RoHS-compliant, commercial grade

Terminals: Silver plated leads, solderable per

J-STD-002 and JESD22-B102

Polarity: As marked on body

Bridge Rectifiers - Vishay Semiconductor


The Bridge Rectifier converts an Alternating Current (AC) input into a Direct Current (DC) output for full-wave rectification applications. The diode arrangement provides the same polarity of output for either polarity of input. A three-phase full-wave rectifier is an arrangement of six diodes in a bridge circuit configuration. The packages are designed for minimal size, highest reliability and maximum thermal performance.

Approvals

UL approved, E54214
