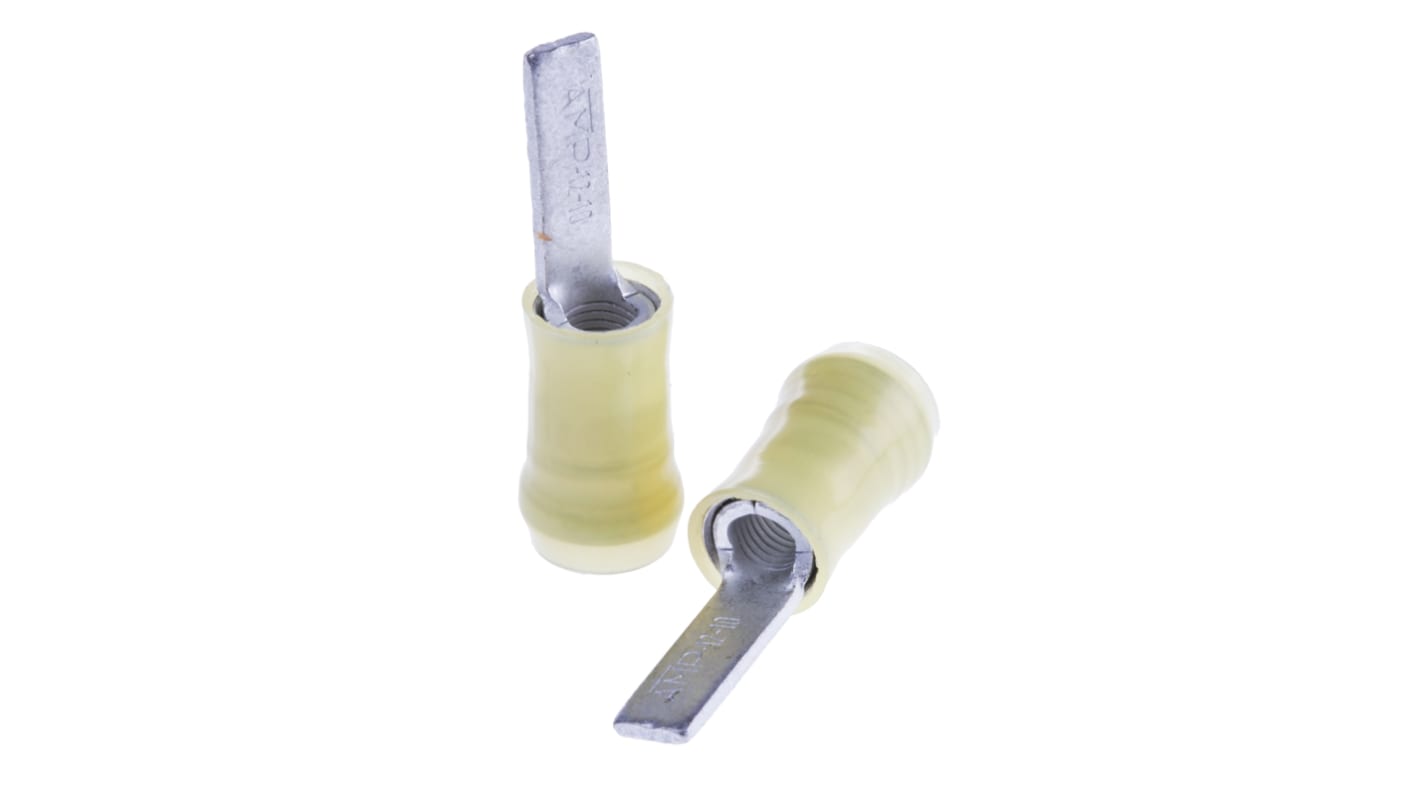

TE Connectivity, PIDG Insulated Crimp Blade Terminal 12.3 mm Blade Length, 12 AWG to 10 AWG, Yellow
- RS 제품 번호:
- 161-6153
- 제조사 부품 번호:
- 131332
- 제조업체:
- TE Connectivity
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 Box of 500 units)*
₩1,264,575.00
재고있음
- 추가로 2026년 6월 01일 부터 5,000 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | Per Box* |
|---|---|---|
| 500 - 2000 | ₩2,529.15 | ₩1,264,380.00 |
| 2500 + | ₩2,453.10 | ₩1,226,452.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 161-6153
- 제조사 부품 번호:
- 131332
- 제조업체:
- TE Connectivity
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TE Connectivity | |
| Product Type | Crimp Blade Terminal | |
| Series | PIDG | |
| Insulation | Insulated | |
| Insulation Material | Nylon | |
| Minimum Wire Size mm² | 2.6mm² | |
| Minimum Wire Size AWG | 12AWG | |
| Overall Length | 29.21mm | |
| Maximum Wire Size AWG | 10AWG | |
| Maximum Wire Size mm² | 6.6mm² | |
| Blade Length | 12.3mm | |
| Blade Width | 4.1mm | |
| Blade Thickness | 1.02mm | |
| Inside Diameter | 5.6mm | |
| Hooked | No | |
| Standards/Approvals | No | |
| Colour | Yellow | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| 모두 선택 | ||
|---|---|---|
브랜드 TE Connectivity | ||
Product Type Crimp Blade Terminal | ||
Series PIDG | ||
Insulation Insulated | ||
Insulation Material Nylon | ||
Minimum Wire Size mm² 2.6mm² | ||
Minimum Wire Size AWG 12AWG | ||
Overall Length 29.21mm | ||
Maximum Wire Size AWG 10AWG | ||
Maximum Wire Size mm² 6.6mm² | ||
Blade Length 12.3mm | ||
Blade Width 4.1mm | ||
Blade Thickness 1.02mm | ||
Inside Diameter 5.6mm | ||
Hooked No | ||
Standards/Approvals No | ||
Colour Yellow | ||
Contact Plating Tin | ||
Contact Material Copper | ||
제외
TE Connectivity PIDG Blade Wire Crimp Terminals
PIDG blade wire crimp terminals consisting of a precision-formed metal wire barrel containing serrations which provide maximum contact and tensile strength after crimping. This barrel is enclosed in a copper sleeve and the whole is encased in a nylon colour coded insulation sleeve. These PIDG blade wire crimp terminals are available with different barrel lengths and diameters to accept various wire sizes.
TE Connectivity PIDG Terminals
Note
Not for use with double wire
Approvals
UL recognised
