Mueller Electric 15A, Red Binding Post With Tellurium Copper Contacts and Gold Plated - 9.53mm Hole Diameter
- RS 제품 번호:
- 888-4657
- 제조사 부품 번호:
- BU-P3770-2
- 제조업체:
- Mueller Electric
- RS 제품 번호:
- 888-4657
- 제조사 부품 번호:
- BU-P3770-2
- 제조업체:
- Mueller Electric
참조 문서
제정법과 컴플라이언스
제품 세부 사항

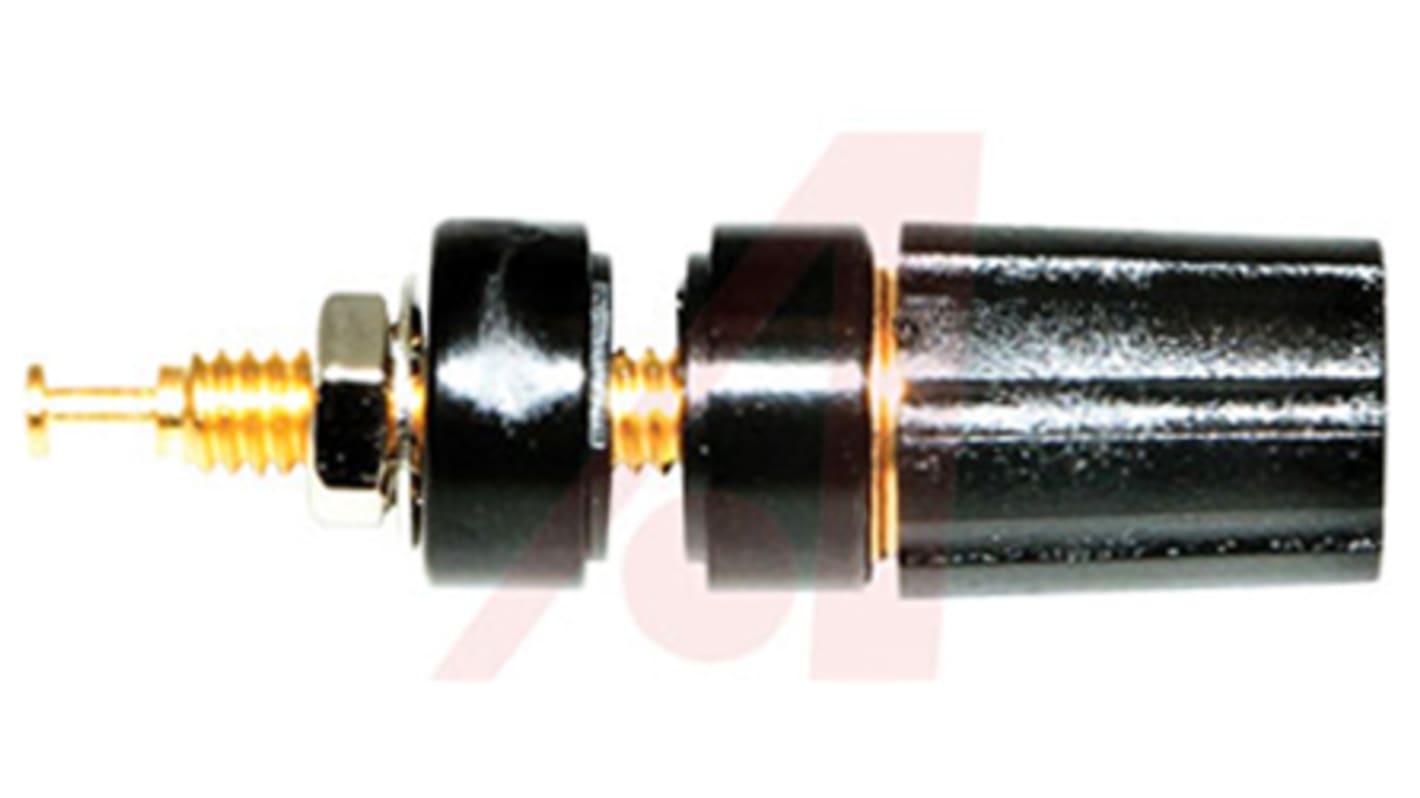

Mueller Binding Post
Binding posts designed to mount in panels between 1.77-6.35mm thick, and accepts standard 4mm banana plugs, spade lugs & bare wire.
Constructed from a copper or gold plated tellurium copper body with a polycarbonate insulator
Suitable for hands free testing up to 2500VRMS
Suitable for hands free testing up to 2500VRMS
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Push and Binding Posts
사양
속성 | 값 |
|---|---|
| Colour | Red |
| Contact Material | Tellurium Copper |
| Contact Plating | Gold |
| Current Rating | 15A |
| Voltage Rating | 2500V ac |
| Gender | Female |
| Height Above Panel | 24.89mm |
| Maximum Panel Thickness | 6.35mm |
| Hole Diameter | 9.53mm |
