Banner K30 Series Green, Red, Yellow Beacon 30V dc Flashing, Steady Base, LED Bulb, IP69K, IP67
- RS 제품 번호:
- 331-282
- 제조사 부품 번호:
- K30APT2GYRF2Q
- 제조업체:
- Banner
Subtotal (1 unit)*
₩230,660.00
제조사가 재고 비축중
- 2026년 12월 10일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩230,660.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 331-282
- 제조사 부품 번호:
- K30APT2GYRF2Q
- 제조업체:
- Banner
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Banner | |
| Product Type | Beacon | |
| Light Effect | Flashing, Steady | |
| Lens Colour | Green, Red, Yellow | |
| Housing Material | Polycarbonate | |
| Bulb Type | LED | |
| Current Type | DC | |
| Current Consumption | 55mA | |
| Mount Type | Base | |
| Base Diameter | 30mm | |
| Housing Colour | Black | |
| Lamp Included | Yes | |
| Maximum Supply Voltage | 30V dc | |
| Minimum Operating Temperature | -40°C | |
| Series | K30 | |
| Maximum Operating Temperature | 50°C | |
| Height | 54.5mm | |
| IP Rating | IP69K, IP67 | |
| Standards/Approvals | IEC 60068-2-27, NEMA, cULus, IEC 60068-2-6, CE, RoHS, DIN 40050-9 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Banner | ||
Product Type Beacon | ||
Light Effect Flashing, Steady | ||
Lens Colour Green, Red, Yellow | ||
Housing Material Polycarbonate | ||
Bulb Type LED | ||
Current Type DC | ||
Current Consumption 55mA | ||
Mount Type Base | ||
Base Diameter 30mm | ||
Housing Colour Black | ||
Lamp Included Yes | ||
Maximum Supply Voltage 30V dc | ||
Minimum Operating Temperature -40°C | ||
Series K30 | ||
Maximum Operating Temperature 50°C | ||
Height 54.5mm | ||
IP Rating IP69K, IP67 | ||
Standards/Approvals IEC 60068-2-27, NEMA, cULus, IEC 60068-2-6, CE, RoHS, DIN 40050-9 | ||
- COO (Country of Origin):
- US

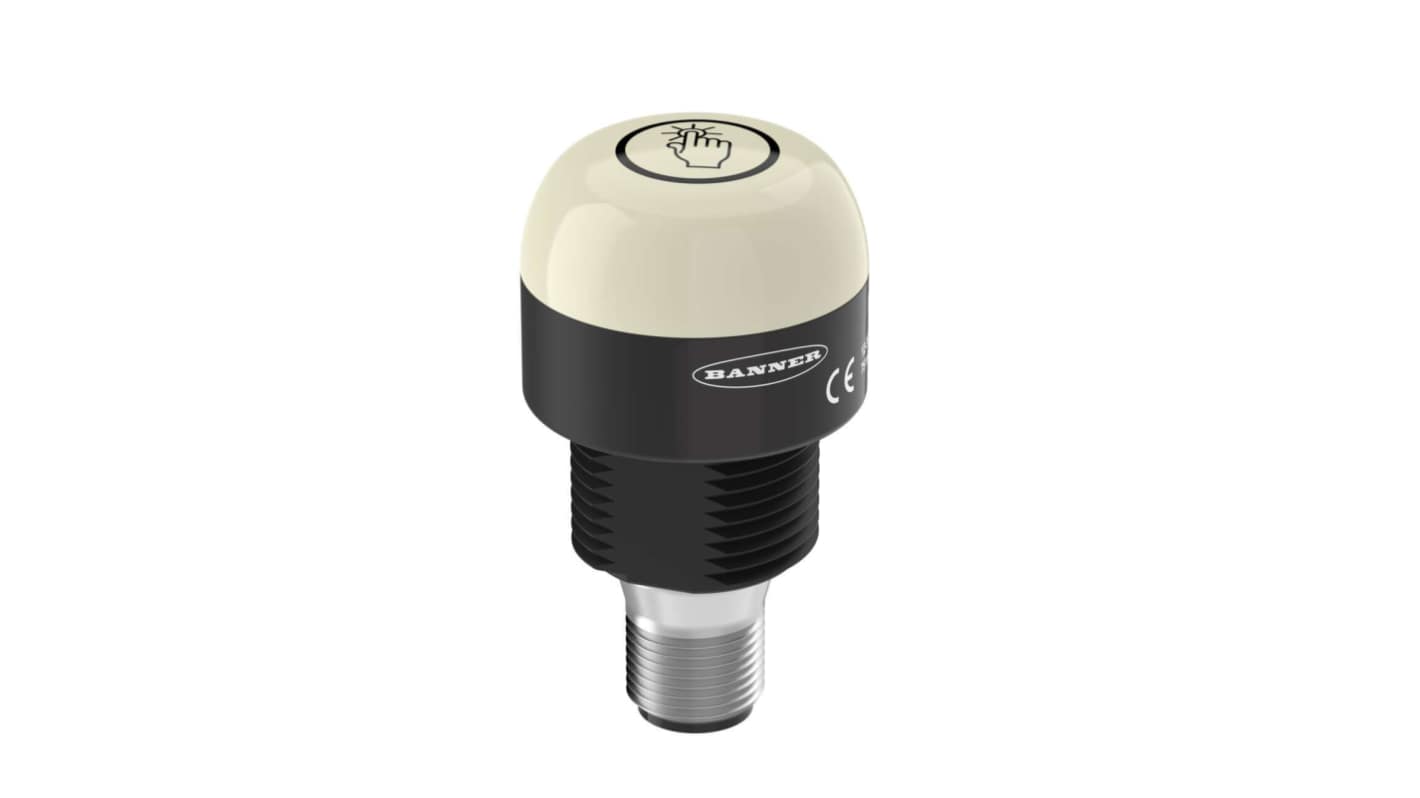

The Banner Illuminated Multipurpose Button stands at the forefront of reliable and efficient operation. Designed with an innovative momentary touch activation mechanism, this product provides a seamless user experience while delivering vibrant multicolour output. Its robust IP69K waterproof construction ensures operational integrity in wash down environments, making it an ideal choice for diverse industrial applications. Featuring independent colour functionalities, it allows for enhanced visual signalling while maintaining ergonomic use, as it can be operated effortlessly with bare hands or gloves.
Waterproof design suitable for high pressure wash down applications
Fast response time of 150 milliseconds for prompt feedback
Integrated protection against reverse polarity and transient voltages
