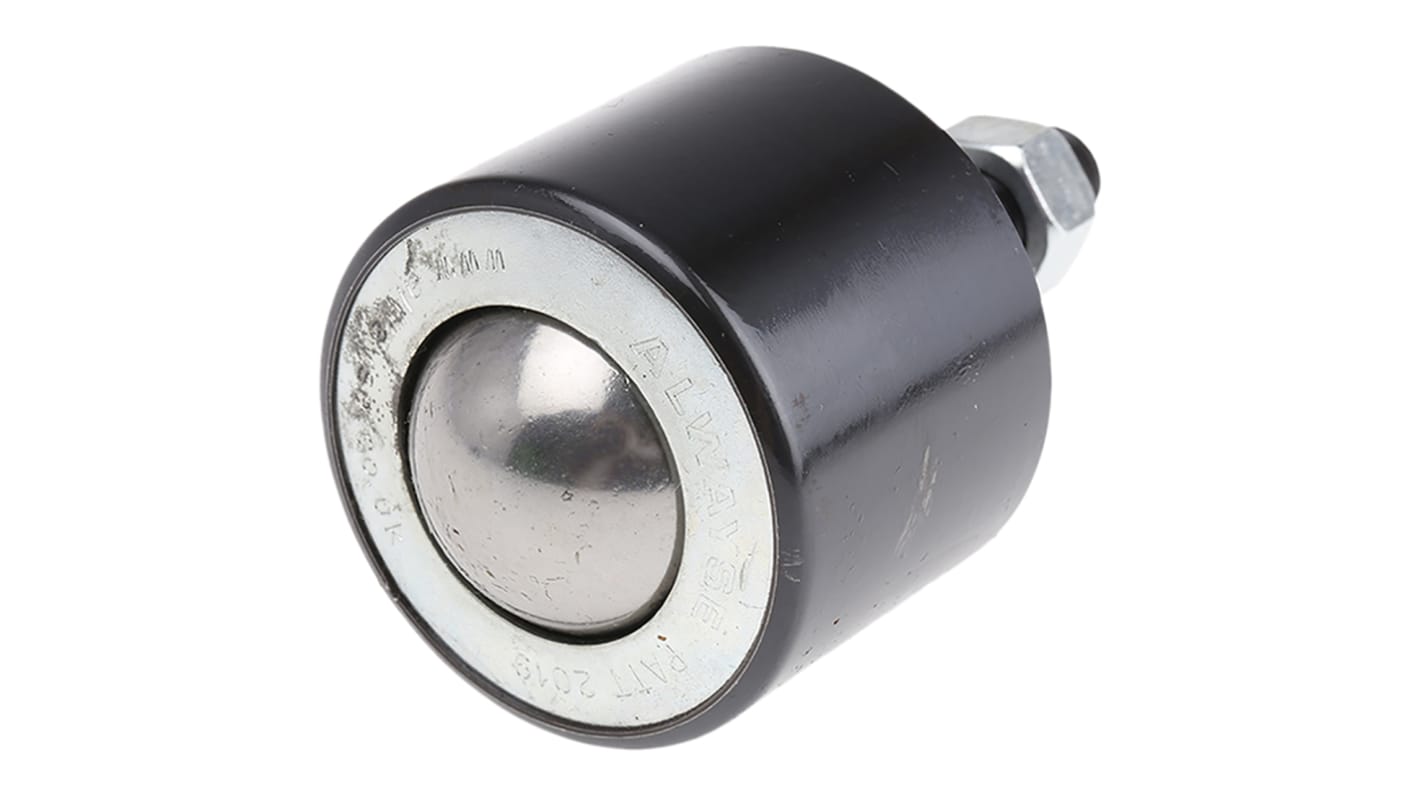

ALWAYSE Ball Transfer Unit with 40 mm diameter Steel
- RS 제품 번호:
- 687-714
- 제조사 부품 번호:
- 201923
- 제조업체:
- ALWAYSE
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩92,080.00
재고있음
- 36 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 5 | ₩92,080.00 |
| 6 - 11 | ₩91,100.00 |
| 12 + | ₩89,740.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 687-714
- 제조사 부품 번호:
- 201923
- 제조업체:
- ALWAYSE
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | ALWAYSE | |
| Product Type | Ball Transfer Unit | |
| Ball Diameter | 40mm | |
| Mount Type | Screw, Flange | |
| Maximum Load | 500kg | |
| Case Material | Solid Steel | |
| Ball Material | Steel | |
| Stud Length | 60mm | |
| Ball Working Height | 72mm | |
| Standards/Approvals | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 ALWAYSE | ||
Product Type Ball Transfer Unit | ||
Ball Diameter 40mm | ||
Mount Type Screw, Flange | ||
Maximum Load 500kg | ||
Case Material Solid Steel | ||
Ball Material Steel | ||
Stud Length 60mm | ||
Ball Working Height 72mm | ||
Standards/Approvals No | ||
제외
- COO (Country of Origin):
- GB
ALWAYSE Bolt Fixing Ball Transfer Unit
The ALWAYSE stud mount bolt fixing ball transfer unit is a highly efficient device with a maximum load capacity is 500kg. This unit is used to move or transfer loads in all direction with a maximum speed of 1m/s. It is available in a wide choice of load capacities, sizes and fixings.
Features and Benefits
Ball diameter is 40mm
Case material is steel
Dust seal
Higher load capacity
Longer life
Load ball material is steel
Self-cleaning hole
Stud length is 60mm
Operating temperature ranging between -30°C and 70°C
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
