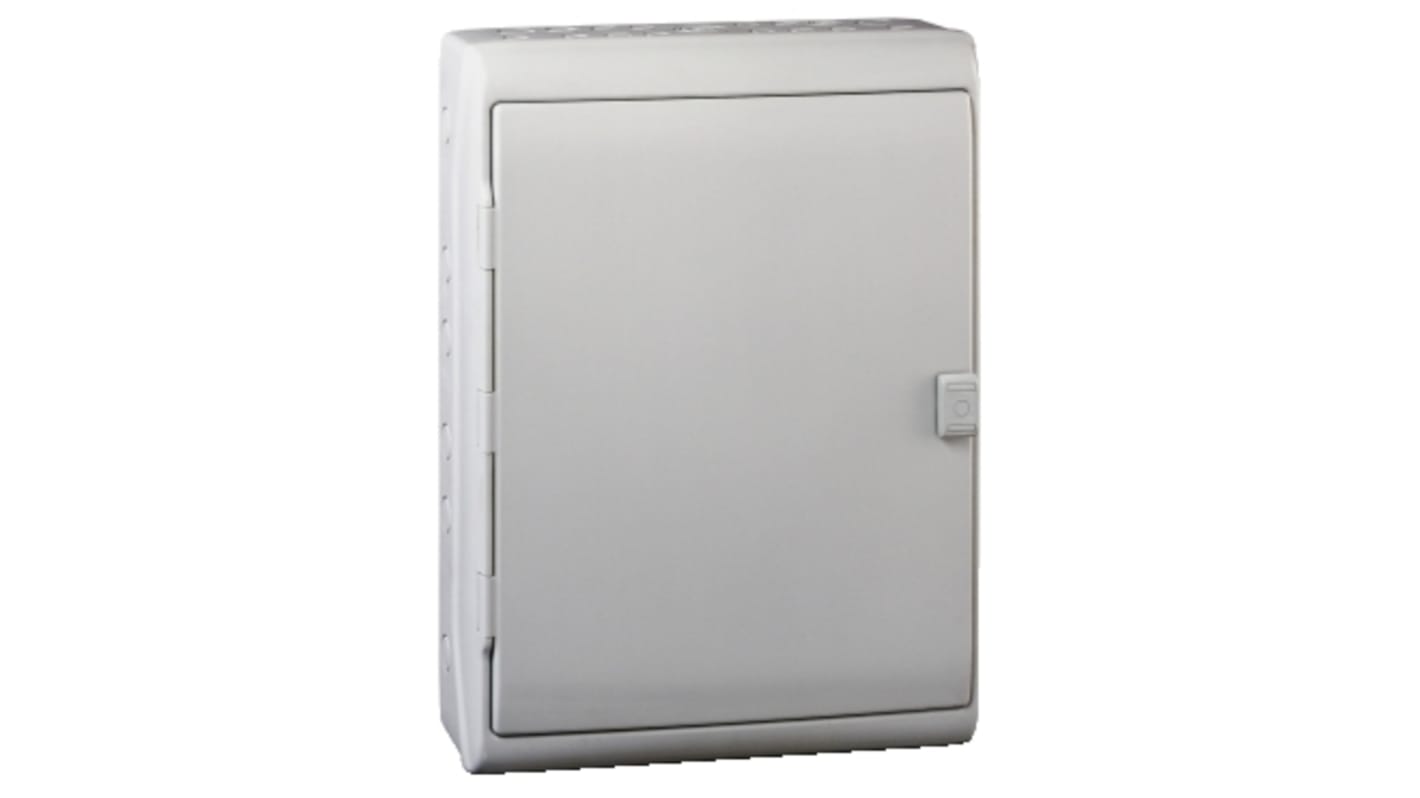

Schneider Electric Mureva Light Grey Smooth Polymer Electrical Enclosure, IEC, IP65, Surface Mount Mount, 1 Gangs 460 mm
- RS 제품 번호:
- 272-7411
- 제조사 부품 번호:
- 13170M
- 제조업체:
- Schneider Electric
Subtotal (1 unit)*
₩285,075.68
일시적 품절
- 2026년 4월 08일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩285,075.68 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 272-7411
- 제조사 부품 번호:
- 13170M
- 제조업체:
- Schneider Electric
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schneider Electric | |
| Product Type | Electrical Enclosure | |
| Number of Gangs | 1 | |
| Internal Depth | 91mm | |
| Depth | 160mm | |
| Material | Polymer | |
| Series | Mureva | |
| Earth Terminal | Yes | |
| Width | 340 mm | |
| Colour | Light Grey | |
| Finish | Smooth | |
| IP Rating | IP65 | |
| Fixing Standard | IEC | |
| Range | Mureva | |
| Standards/Approvals | IEC 60670, EN 50262, IEC 61439-3 | |
| Mount Type | Surface Mount | |
| Height | 460mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schneider Electric | ||
Product Type Electrical Enclosure | ||
Number of Gangs 1 | ||
Internal Depth 91mm | ||
Depth 160mm | ||
Material Polymer | ||
Series Mureva | ||
Earth Terminal Yes | ||
Width 340 mm | ||
Colour Light Grey | ||
Finish Smooth | ||
IP Rating IP65 | ||
Fixing Standard IEC | ||
Range Mureva | ||
Standards/Approvals IEC 60670, EN 50262, IEC 61439-3 | ||
Mount Type Surface Mount | ||
Height 460mm | ||
제외
- COO (Country of Origin):
- IT
The Schneider Electric weatherproof versatile enclosure up to 17 pre-cut-outs comes with reversible opaque cover. It allows the mounting of power sockets. It comes with a set of hinges clipped between the bottom and the front. It comes with protective caps, fixing screws Class 2. This enclosure is dedicated to indoor and outdoor waterproof installation.
Degree of protection is IP65 and IK09
Operating temperature are between -25°C to 60°C
