Tektronix AFG1022 Arbitrary Waveform Generator, 10 MHz, 12.5 MHz, 25 MHz Max, 2-Channel, 1 μHz, 1 mHz Min

본 제품군 열람하기

Subtotal (1 unit)*

₩2,351,880.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2025년 12월 09일 부터 43 개 단위 배송
  • 추가로 2026년 1월 12일 부터 3 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩2,351,880.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
855-5078
Distrelec 제품 번호:
300-14-369
제조사 부품 번호:
AFG1022
제조업체:
Tektronix
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Tektronix

Maximum Frequency

10 MHz, 12.5 MHz, 25 MHz

Minimum Frequency

1 μHz, 1 mHz

Maximum Frequency Triangle Ramps

1MHz

Number of Channels

2

Minimum Frequency Triangle Ramps

1µHz

Maximum Sampling Frequency

125Msps

Resolution

12 Digit

Pulse Resolution

5Digit

Maximum Pulse Width

999000s

Minimum Pulse Width

40ns

Arbitrary Waveforms

Yes

Sweep

Linear, Logarithmic

Maximum Storage

50

Dimensions

235 x 295 x 110mm

Data Entry

Keypad

Inputs

Modulation In, Reference In, Trig In

Length

235mm

Width

295mm

Model Number p

AFG1022

Height

110mm

Maximum Operating Temperature

+40°C

Display Type

3.95 in TFT-LCD

Rise - Fall Time

<10 ns, <12 ns

Connector Type

BNC

Weight

3.4kg

Interface Type

USB

Minimum Operating Temperature

0°C

COO (Country of Origin):
CN

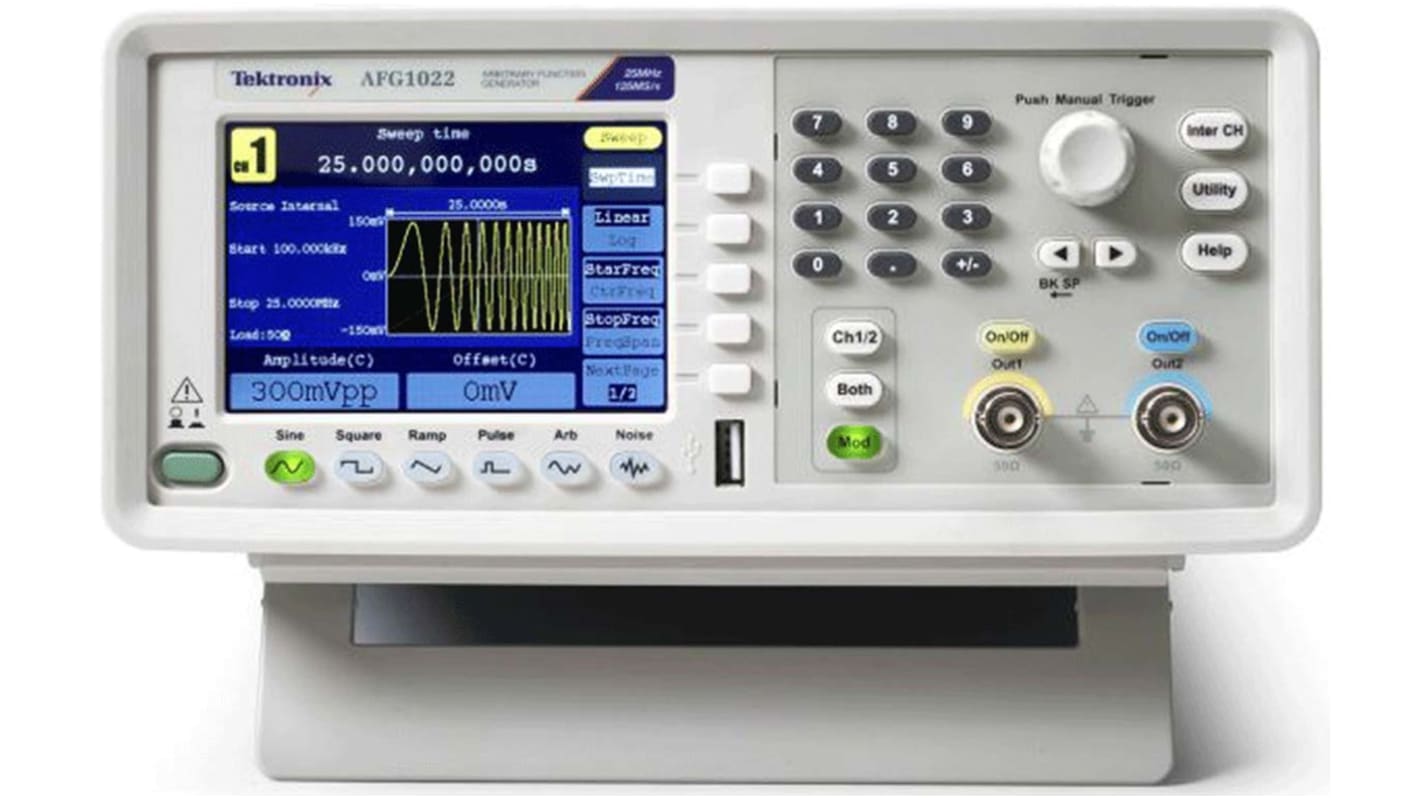

Tektronix Arbitrary Function Generator Series AFG1000


The Tektronix arbitrary waveform generator is high tech with 2 channels supporting frequencies up to 25MHz. It is designed to appeal to educational institutions wanting to fit out their laboratories with modern, flexible test instrumentation capable of high-performance at an attractive price. Its key performance specifications include dual-channel, high bandwidth, 14-bit vertical resolution and 1μHz frequency resolution. The models offer 50 built-in standard function and arbitrary waveforms with continuous, modulation, sweep and burst modes to cover almost all test requirements in basic education laboratories. Its high resolution offers an easy and precise way of performing frequency, period, pulse width and duty cycle measurements. The models incorporate an intuitive user interface with a 3.95in TFT colour display, shortcut buttons and rotary knob for quick setting adjustments. The compact dual channel form saves cost and valuable bench space. This device has various applications that include electrical and electronics experiments, communications experiments, sensor simulation and functional test. It comes as standard 5 year warranty and free ArbExpress software.

Features and Benefits


• 5 year warranty included
• 125 MS/s sampling rate and 14-bit vertical resolution enable great signal fidelity
• 1 mVp-p to 10 Vp-p output amplitude over the whole frequency range
• 2 to 8,192-point length of memory for user-defined arbitrary waveforms
• 64-MByte internal non-volatile memory for arbitrary waveform storage
• Standard USB host/device for memory expansion and remote control
• Continuous, sweeping, burst and modulation modes
• Built-in 200 MHz counter with 6-digit resolution
• Compact form factor for stacking on other bench instruments to save valuable bench space
• Intuitive user interface shortens the learning curve for students and other users
• Free ArbExpress makes user defined waveforms editing extremely easy

Applications


• Automotive
• Battery Testing
• Embedded Design
• Power Measurements and Analysis
• Education
• Manufacturing test/troubleshooting
• Power Semiconductor Testing

Certifications


CE certified
ISO 9001
ISO 14001
