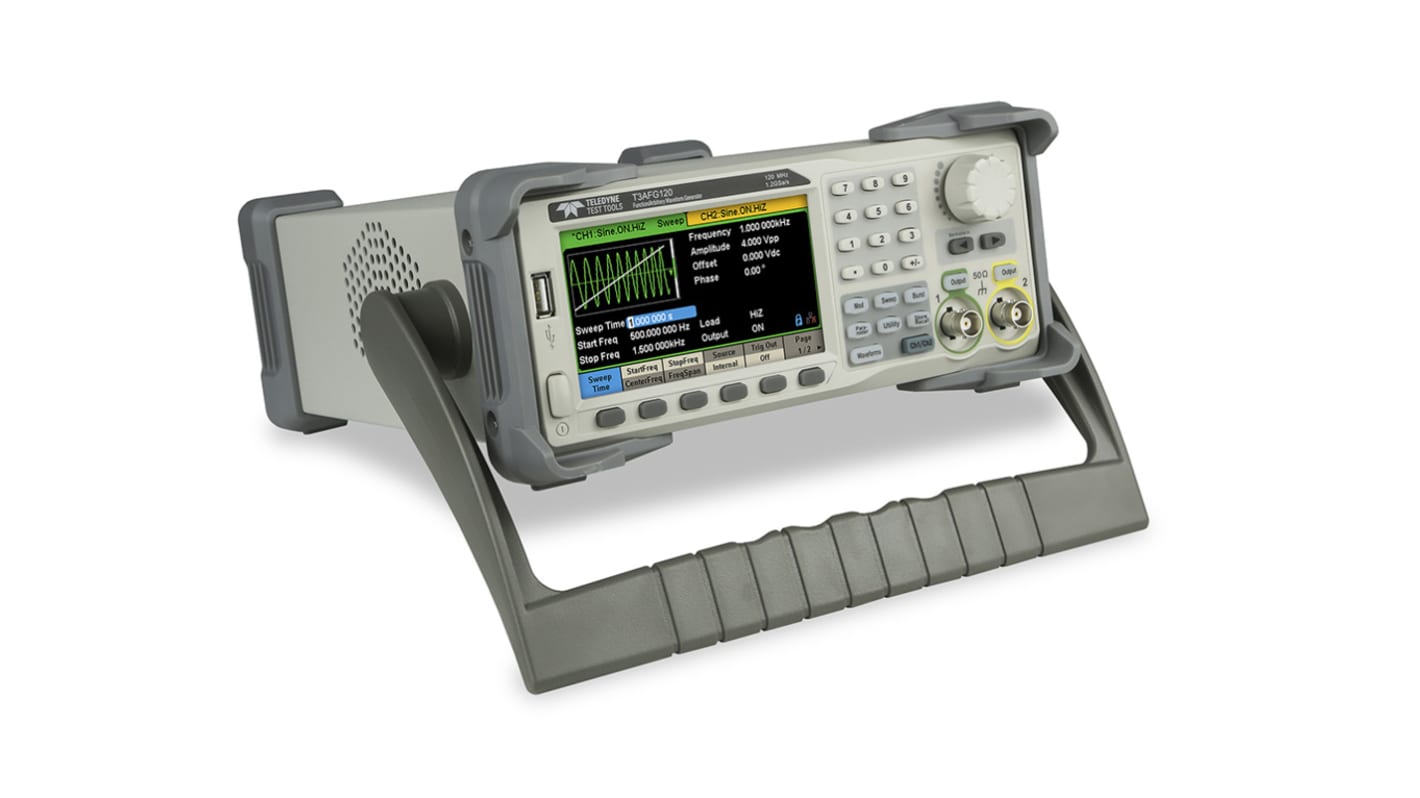

Teledyne LeCroy Waveform Generator 80 MHz Max, 2-Channel, 1 Hz Min

본 제품군 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.

대체품

이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.

presentation
Teledyne LeCroy Waveform Generator 120 MHz Max, 2-Channel, 1 Hz Min
RS 제품 번호
177-1295

개당

₩4,575,260.00

RS 제품 번호:
177-1294
Distrelec 제품 번호:
301-18-723
제조사 부품 번호:
T3AFG80
제조업체:
Teledyne LeCroy
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Teledyne LeCroy

Maximum Frequency

80MHz

Product Type

Waveform Generator

Minimum Frequency

1Hz

Maximum Frequency Triangle Ramps

1MHz

Minimum Frequency Triangle Ramps

1μHz

Number of Channels

2

Maximum Sampling Frequency

1.2Gsps

Maximum Pulse Train Repetition Rate

13.3ns

Minimum Pulse Train Repetition Rate

16.3ns

Resolution

1 μHz

Minimum Operating Temperature

0°C

Maximum Operating Temperature

40°C

Height

295.7mm

Weight

3.4kg

Standards/Approvals

EN 613261:2006, EN 6100033:2008, EN 610101:2010, EN 6100032:2006 + A2:2009

Length

260.3mm

Width

107.2mm

Connector Type

USB

Maximum Output Amplitude

20V Pk-Pk

Data Entry

Keyboard

Inputs

Trigger, Gate

Sweep

Linear

Display Type

LCD

Interface Type

USB Host, USB, LAN

Rise - Fall Time

9ns

Teledyne LeCroy T3AF Waveform Generators


The T3AFG range of waveform generators from Teledyne LeCroy are brilliant testing and debugging tools. These T3AFG are both arbitrary and function generators packed into one. This range packs great features such as DDS technology, a wide range of modulation functions, remote control support and outstanding build quality.

Teledyne LeCorys T3AFG models come with a dual functionality handle. This handle can double up as a stand also with a rotation over the unit.

Features and Benefits:


  • Improved debugging – Deep memory, wide range of modulation types, high resolutions, high bandwidth, built in arbitrary waveforms and user defined waveforms

  • 3.5" – 4.3" Display. (T3AFG40+ includes touchscreen)

  • Sample rate up to 1.2 GS/s

  • USB for mass storage

  • LAN port on 2 channel models

  • Sweep output – Sine, Square, Triangle or Arbitrary waveforms

  • Frequency resolution of 1uHz

  • Handle doubles up as a stand

  • Waveform types include DC

    • Applications:


    The T3AFG waveform generators are used in a wide array of applications in a multitude of different industries. The waveform generator is a vital piece of equipment for any professional who is designing, testing or repairing electronic equipment. Some of the most common are;

  • Educational demonstrations

  • Engineering

  • Debugging

  • Electronic design

  • Automotive

    • Why Teledyne LeCroy?


    Teledyne LeCroy Waveform Generators have been designed, manufactured and tested to the highest standards. This ensures high reliability and quality. In the unlikely event, you experience any problems all Teledyne LeCroy Waveform Generators are covered by a 3-year manufactures warranty.
