SCS Blue ESD-Safe Mat Table, 1.2 m x 600mm x 3.5 mm
- RS 제품 번호:
- 838-0701
- 제조사 부품 번호:
- 8214
- 제조업체:
- SCS
Subtotal (1 unit)*
₩202,880.00
재고있음
- 4 개 단위 배송 준비 완료
- 추가로 2026년 10월 13일 부터 32 개 단위 배송
- 추가로 2026년 11월 10일 부터 9 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩202,880.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 838-0701
- 제조사 부품 번호:
- 8214
- 제조업체:
- SCS
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | SCS | |
| Product Type | ESD-Safe Mat | |
| Thickness | 3.5mm | |
| Colour | Blue | |
| Length | 1.2m | |
| Width | 600mm | |
| Mat Material | Middle Layer - Highly Conductive Scrim, Static Dissipative Vinyl, Bottom Layer - Static Dissipative Foam | |
| Surface Texture Type | Smooth | |
| Usage Type | Table | |
| EN 61340-5-1 Compliant | Yes | |
| Standards/Approvals | ANSI/ESD S20.20 | |
| Resistance | 1000mΩ | |
| Number of Material Layers | 3 | |
| 모두 선택 | ||
|---|---|---|
브랜드 SCS | ||
Product Type ESD-Safe Mat | ||
Thickness 3.5mm | ||
Colour Blue | ||
Length 1.2m | ||
Width 600mm | ||
Mat Material Middle Layer - Highly Conductive Scrim, Static Dissipative Vinyl, Bottom Layer - Static Dissipative Foam | ||
Surface Texture Type Smooth | ||
Usage Type Table | ||
EN 61340-5-1 Compliant Yes | ||
Standards/Approvals ANSI/ESD S20.20 | ||
Resistance 1000mΩ | ||
Number of Material Layers 3 | ||
해당 안됨
- COO (Country of Origin):
- US
8200 Series 3 Layer Mats
These dissipative vinyl mats have been designed with a 3-layer construction that provides great electrical properties. These mats come with a wrist strap grounding system and fasteners and are designed to help prevent damage to ESD sensitive items and assemblies from electrostatic discharge.
Features and Benefits:
First layer – durable static dissipative vinyl, which has sufficiently low resistance to discharge static-laden conductors, yet will help prevent the shorting of pins on the backs of printed circuit boards laid on the mat
Middle layer – highly conductive metal scrim (moves the charge from the surface to ground)
Bottom layer – durable, non-skid dissipative foam
Compatible with constant monitors
Typical Applications
Anti-static matting should be laid out in the workshops or advanced laboratories for microelectronic industries such as electronic semi-conduct devices, electronic computers, electronic communication equipment and integrated circuits.
Why is it important to be ESD safe?
ESD safe mats help to create an ESD protected area (EPA). This is a defined space where all surfaces, objects, people and ESD Sensitive Devices (ESDs) are kept at the same electrical potential. This is achieved by using anti-static materials such as rubber. The mats can be used on your worktop bench or the floor. You can also use ESD safe gloves and ESD safe footwear to ensure optimum personal grounding and protection. It's important to create an EPA because electrostatic discharge can cause safety issues and damage your electrical components.
Entrance Mats, Tapes and Accessories
Due to the high human traffic in public entrance ways, there are several health and safety implications to be aware of. As such, effectively graded tapes, matts and accessories are essential.
Entrance mats can save up to 70% of all dirt and debris from being carried inside a building. They help to protect the interior floor coverings from damage for a longer life span. Water and moisture are efficiently absorbed reducing slip hazards. Entrance mats are a simple, economic measure to reduce cleaning and maintenance, both in terms of time and cost. They also improve the aesthetic appearance of a reception area.,The correct quality of matting in the workplace will help eliminate the risk of slips and falls, insulate against electricity, deaden sound, trap and hold dirt and moisture from spreading, resist chemicals, grease, oils and flames, and reduce worker fatigue and stress.

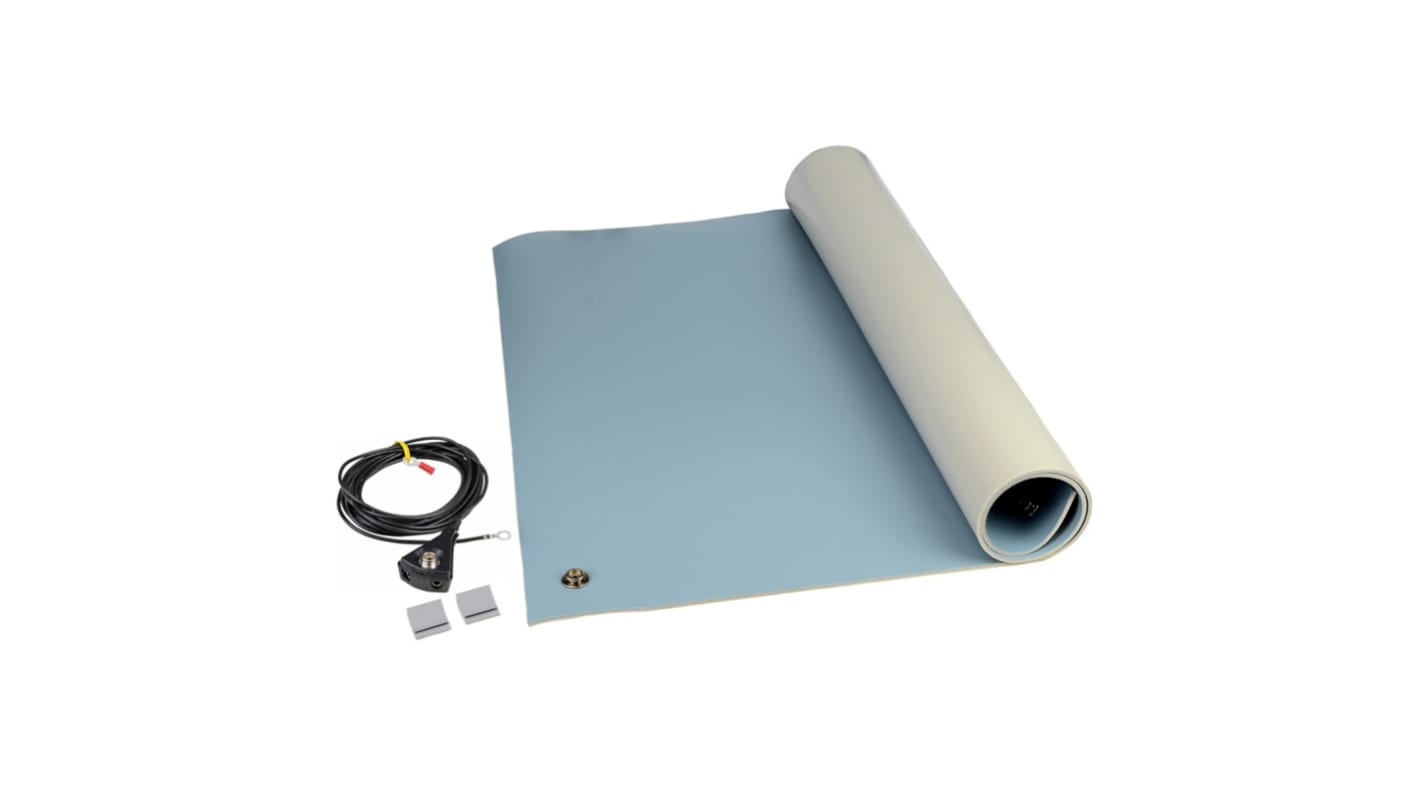

Supplied with
1 x Table mat
Wrist strap grounding system
2 x single snap fastener
Wrist strap grounding system
2 x single snap fastener
