MikroElektronika MIKROE-2396 R Meter Click Operational Amplifier Add On Board for Measuring value of resistors for
- RS 제품 번호:
- 249-3933
- 제조사 부품 번호:
- MIKROE-2396
- 제조업체:
- MikroElektronika
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩54,219.20
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩54,219.20 |
| 5 + | ₩53,147.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 249-3933
- 제조사 부품 번호:
- MIKROE-2396
- 제조업체:
- MikroElektronika
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | MikroElektronika | |
| Analogue Function | Operational Amplifier | |
| Product Type | Development Board | |
| Kit Classification | Add On Board | |
| For Use With | Measuring value of resistors | |
| Featured Device | AD8616 | |
| Kit Name | R Meter Click | |
| Interface Type | GPIO, SPI, Analogue | |
| Standards/Approvals | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 MikroElektronika | ||
Analogue Function Operational Amplifier | ||
Product Type Development Board | ||
Kit Classification Add On Board | ||
For Use With Measuring value of resistors | ||
Featured Device AD8616 | ||
Kit Name R Meter Click | ||
Interface Type GPIO, SPI, Analogue | ||
Standards/Approvals No | ||

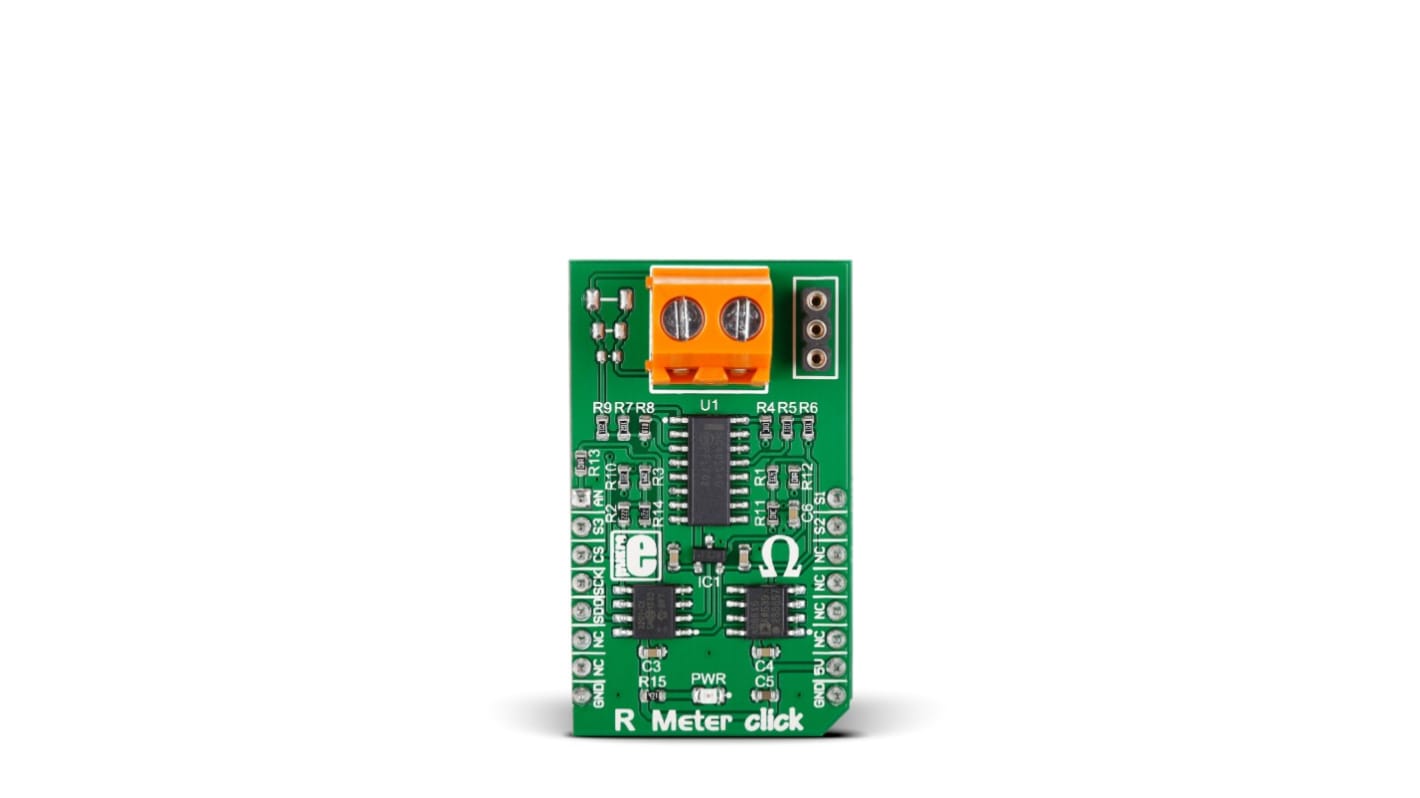

The MikroElektronika R Meter click is a mikroBUS add-on board with circuitry for measuring the value of resistors. The board can be used to measure a wide range of resistors (from 0 to 1 Mega Ohm) The design is based on a non-inverting AD8616 amplifier circuit, with the measured resistor placed in a feedback loop that influences the gain of the amplifier.
Type Measurements
Interface Analog, GPIO, SPI
