Phihong 20 W Universal AC/DC Adapter Global 5 V dc, 5 V dc Output, 4 A
- RS 제품 번호:
- 124-2085
- 제조사 부품 번호:
- PSAA20R-050L6(RS)
- 제조업체:
- Phihong
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩40,081.60
마지막 RS 재고
- 최종적인 3 개 unit(s)이 배송 준비 됨
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩40,081.60 |
| 10 - 49 | ₩39,705.60 |
| 50 + | ₩39,386.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 124-2085
- 제조사 부품 번호:
- PSAA20R-050L6(RS)
- 제조업체:
- Phihong
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phihong | |
| Product Type | AC/DC Adapter | |
| Sub Type | Universal | |
| Plug Type | Global | |
| Output Voltage | 5 V dc, 5 V dc | |
| Output Connector Type | 2.1 x 5.5 x 10 mm Centre Positive, 2.1 x 5.5 x 10 mm Centre Positive | |
| Power | 20W | |
| Cable Length | 1.5m | |
| Number of Outputs | 1 | |
| Input Connector Type | Universal Plug | |
| Adapter Current | 4A | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 40°C | |
| Width | 50 mm | |
| Depth | 33.25mm | |
| Length | 71.71mm | |
| Standards/Approvals | CE, CE, cULus, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, FCC Class B EN 55022 Class B, IEC 61000, UL | |
| Maximum Input Voltage | 240V ac | |
| Minimum Input Voltage | 100V ac | |
| Load Regulation | ±5 %, ±5 % | |
| Series | PSAA20R | |
| Energy Efficiency Level | VI | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phihong | ||
Product Type AC/DC Adapter | ||
Sub Type Universal | ||
Plug Type Global | ||
Output Voltage 5 V dc, 5 V dc | ||
Output Connector Type 2.1 x 5.5 x 10 mm Centre Positive, 2.1 x 5.5 x 10 mm Centre Positive | ||
Power 20W | ||
Cable Length 1.5m | ||
Number of Outputs 1 | ||
Input Connector Type Universal Plug | ||
Adapter Current 4A | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 40°C | ||
Width 50 mm | ||
Depth 33.25mm | ||
Length 71.71mm | ||
Standards/Approvals CE, CE, cULus, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, FCC Class B EN 55022 Class B, IEC 61000, UL | ||
Maximum Input Voltage 240V ac | ||
Minimum Input Voltage 100V ac | ||
Load Regulation ±5 %, ±5 % | ||
Series PSAA20R | ||
Energy Efficiency Level VI | ||
- COO (Country of Origin):
- CN

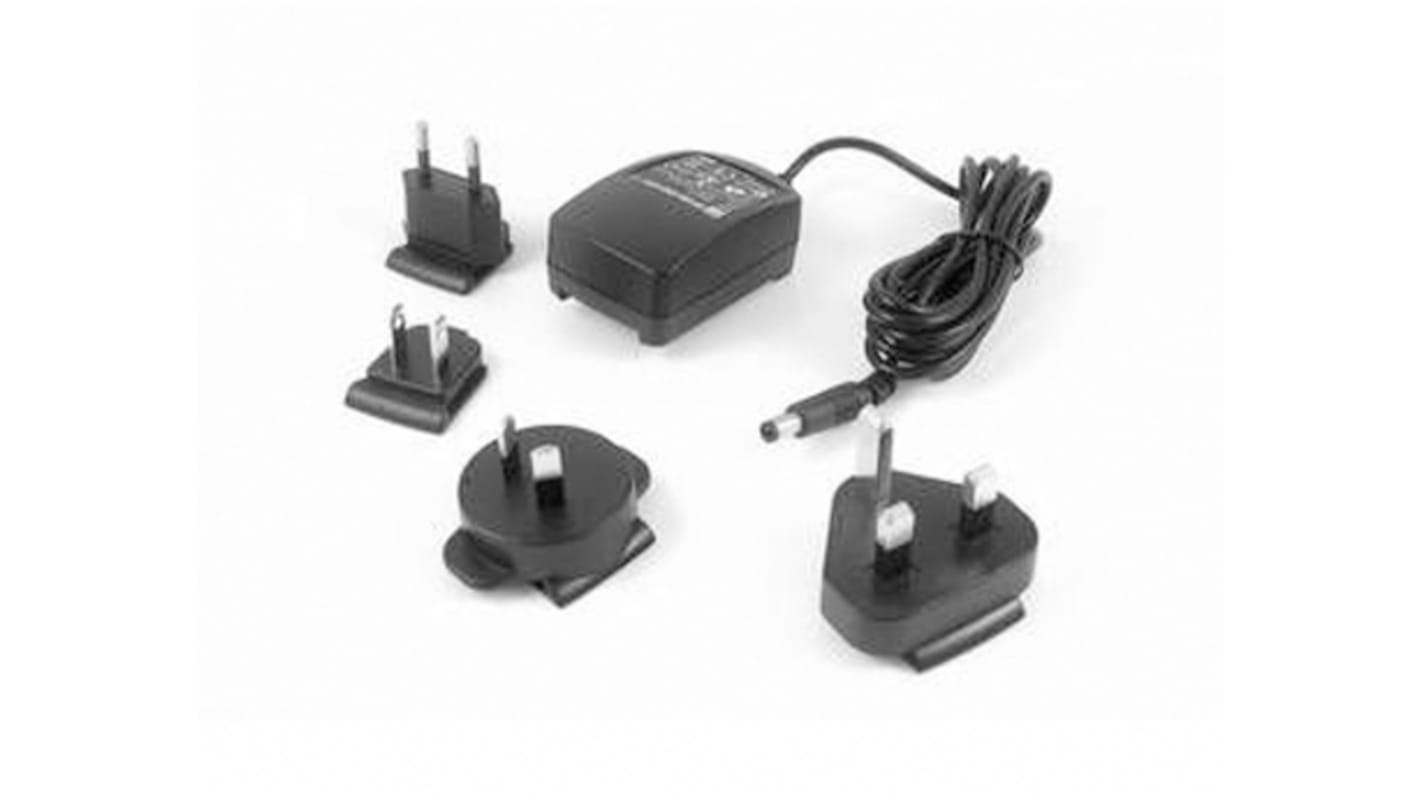

Phihong PSA Series Global Plug-In Power Adapter
Phihong PSA series of global plug-in power adapters are an ideal travel companion for both business and personal devices. The series features interchangeable plug heads which can be easily swapped in and out depending on the location requirement.
Feature and Benefits
Offered in a wide range of 5 - 24V options.
Suitable for a wide range of applications, such as portable electronic equipment.
