DIN Rail Enclosures

DIN rail enclosures are a protective case for protecting electrical devices and components. They enable electronic devices to be mounted onto equipment racks. Also known as top hat rail enclosures, DIN rail enclosures are mounted onto a standard sized metal rail within a rack. The DIN rail enclosure provides safety and the opportunity to tailor the enclosure to your specific requirements. The enclosures are available in a range of sizes, materials and IP ratings for many different applications.

DIN Rail Enclosure IP Ratings:

When choosing an enclosure it is essential to ensure it provides the necessary protection for your equipment. IP rating describes the enclosure's ability to protect the device inside from dust, dirt, water and moisture. Examples of IP rating include:

IP20 provides a low level of protection from large objects, for example fingers. It does not protect from water.
IP40 enclosures provide protection from tools and wires up to 1 mm but they are not waterproof.
IP65 DIN rail enclosures provide your equipment protection from dust and water and so the enclosure is safe for outdoor environments.
IP66 enclosures provide complete dust and dirt protection and high-pressure water protection.

What are DIN Rail Enclosures made from?

DIN rail enclosures are primarily made from aluminium, ABS, polycarbonate, polyamide, PVC, plastic or steel.

What is a DIN Rail?

A DIN Rail is an industry standard rail for mounting equipment within a DIN Rail Enclosure. The DIN rail is made normally made from metal and can be used within a rackmount case and enclosure to securely attach electrical and industrial control equipment like circuit breakers, terminal blocks and power supplies.

DIN Rail enclosure accessories are available to complete your enclosure, and these range from a standard DIN rail, Din rail clips, frame sets, cable glands, panel covers, slotted terminal covers, connectors, modules, adaptors, screws. Our range of DIN rail accessories available will provide everything needed.

For more information on Din Rails please see our comprehensive Guide

788 표시되는 제품 DIN Rail Enclosures

9 / 40

정렬 기준

제품 비교 제품 세부 사항

페이지 당 결과 수

Phoenix Contact Lower Housing Part with Metal Foot Catch Enclosure Type ME Series , 45.2 x 99 x 107.3mm, Polyamide RS 제품 번호 284-1975 제조사 부품 번호 2200259 개당가격(10개가 1팩안에) ₩67,424.32 주문수량	Phoenix Contact	Lower Housing Part with Metal Foot Catch	Polyamide	Enclosure Base	45.2mm	-	45.2 x 99 x 107.3mm	-	-	-	-	ME	-	-	-	-	-
Phoenix Contact DIN Rail Enclosure Enclosure Type ME MAX 90 G 2-2 KMGY Series , 99 x 90 x 114.5mm, Polyamide Electronic RS 제품 번호 858-6426 제조사 부품 번호 2200530 10 박스 1개 ₩346,465.20 주문수량	Phoenix Contact	DIN Rail Enclosure	Polyamide	-	99mm	-	99 x 90 x 114.5mm	90mm	114.5mm	64	Grey	ME MAX 90 G 2-2 KMGY	-40°C	-	-	-	-
Phoenix Contact Upper Part of Housing Enclosure Type EH Series , 22.6 x 75.26 x 36.95mm, ABS Electronic Housing RS 제품 번호 284-2146 제조사 부품 번호 2201456 개당가격(10개가 1팩안에) ₩2,838.80 주문수량	Phoenix Contact	Upper Part of Housing	ABS	Solid Top Enclosure	22.6mm	-	22.6 x 75.26 x 36.95mm	-	-	-	-	EH	-	-	-	-	-
Eaton Mounting Unit Enclosure Type xEnergy Basic Series , 41.5 x 150 x 250mm DIN Rail Enclosure RS 제품 번호 121-732 제조사 부품 번호 143910 EP21RK1 개당 ₩44,362.36 주문수량	Eaton	Mounting Unit	-	Top Hat	41.5mm	-	41.5 x 150 x 250mm	-	-	-	-	xEnergy Basic	-	-	-	-	-
Phoenix Contact Upper Part of Housing Enclosure Type EH Series , 45.1 x 74.65 x 36.95mm, ABS Electronic Housing RS 제품 번호 284-2029 제조사 부품 번호 2200789 개당가격(250개가 1팩안에) ₩3,861.52 주문수량	Phoenix Contact	Upper Part of Housing	ABS	Solid Top Enclosure	45.1mm	-	45.1 x 74.65 x 36.95mm	-	-	-	-	EH	-	-	-	-	-

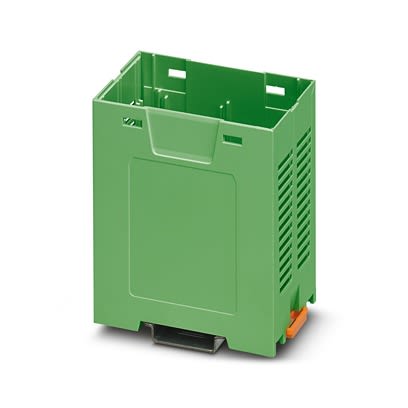

Phoenix Contact Enclosure Bottom Part Enclosure Type EH Series , 75 x 45.1 x 87.3mm, ABS DIN Rail Enclosure RS 제품 번호 520-415 제조사 부품 번호 2202534 10 미터가 들어있는 1트레이 ₩35,419.20 주문수량	Phoenix Contact	Enclosure Bottom Part	ABS	Side Vented Enclosure	75mm	-	75 x 45.1 x 87.3mm	-	-	-	-	EH	-	-	-	-	-
Phoenix Contact Upper Part of Housing Enclosure Type EH Series , 70.1 x 75 x 36.95mm, ABS Electronic Housing RS 제품 번호 284-1530 제조사 부품 번호 2201755 개당가격(10개가 1팩안에) ₩5,764.08 주문수량	Phoenix Contact	Upper Part of Housing	ABS	Solid Top Enclosure	70.1mm	-	70.1 x 75 x 36.95mm	-	-	-	-	EH	-	-	-	-	-
Phoenix Contact Lower Housing Part with Base Latch Enclosure Type EH Series , 22.6 x 75 x 30.3mm, ABS Electronic Housing RS 제품 번호 284-2022 제조사 부품 번호 2200666 개당가격(50개가 1팩안에) ₩3,861.52 주문수량	Phoenix Contact	Lower Housing Part with Base Latch	ABS	Enclosure Base	22.6mm	-	22.6 x 75 x 30.3mm	-	-	-	-	EH	-	-	-	-	-
Phoenix Contact Vertical Enclosure Enclosure Type ECS-KIT Series , 163.8 x 119.9 x 62.1mm, Polycarbonate Electronic RS 제품 번호 286-1586 제조사 부품 번호 1311023 개당 ₩113,192.92 주문수량	Phoenix Contact	Vertical Enclosure	Polycarbonate	Vertical Enclosure	163.8mm	-	163.8 x 119.9 x 62.1mm	-	-	-	-	ECS-KIT	-	-	-	-	-
Phoenix Contact DIN Rail Enclosure Enclosure Type ME MAX 45 F G 3-3 KMGY VPE1 Series , 45 x 92mm, Polyamide Electronic RS 제품 번호 858-6498 제조사 부품 번호 2201330 개당 ₩22,484.80 주문수량	Phoenix Contact	DIN Rail Enclosure	Polyamide	-	85mm	-	45 x 92mm	45mm	92mm	-	Grey	ME MAX 45 F G 3-3 KMGY VPE1	-	-	-	-	-
Phoenix Contact Lower Housing Part with Base Latch Enclosure Type EH Series , 67.6 x 75 x 87.3mm, ABS Electronic Housing RS 제품 번호 284-1463 제조사 부품 번호 2201485 개당가격(10개가 1팩안에) ₩7,958.04 주문수량	Phoenix Contact	Lower Housing Part with Base Latch	ABS	Enclosure Base	67.6mm	-	67.6 x 75 x 87.3mm	-	-	-	-	EH	-	-	-	-	-
Siemens Cabinet Enclosure Type ALPHA 160 Series , 800 x 800mm, Steel DIN Rail Enclosure RS 제품 번호 216-3263 제조사 부품 번호 8GK1052-3KK31 개당 ₩1,372,212.00 주문수량	Siemens	Cabinet	Steel	DIN Mounting Frames	-	-	800 x 800mm	-	-	-	-	ALPHA 160	-	-	-	-	-
Phoenix Contact DIN Rail Enclosure Enclosure Type ME MAX 90 U-U1 KMGY VPE1 Series , 99 x 90 x 114.5mm, Polyamide RS 제품 번호 858-6518 제조사 부품 번호 2201337 개당 ₩31,433.60 주문수량	Phoenix Contact	DIN Rail Enclosure	Polyamide	-	99mm	-	99 x 90 x 114.5mm	90mm	114.5mm	16	Grey	ME MAX 90 U-U1 KMGY VPE1	-40°C	-	-	-	-
CAMDENBOSS Solid Top Enclosure Type CNMB Series , 71 x 58 x 90mm, Polycarbonate DIN Rail Enclosure RS 제품 번호 749-5935 제조사 부품 번호 CNMB/4ST/2 개당 ₩14,344.40 주문수량	CAMDENBOSS	Solid Top	Polycarbonate	-	71mm	-	71 x 58 x 90mm	58mm	90mm	-	Grey	CNMB	-	-	-	-	-
Phoenix Contact DIN Rail Enclosure Enclosure Type ME MAX 90 G U-U1 KMGY Series , 99 x 90 x 114.5mm, Polyamide RS 제품 번호 858-6432 제조사 부품 번호 2200533 10 박스 1개 ₩364,832.80 주문수량	Phoenix Contact	DIN Rail Enclosure	Polyamide	-	99mm	-	99 x 90 x 114.5mm	90mm	114.5mm	16	Grey	ME MAX 90 G U-U1 KMGY	-40°C	-	-	-	-
Phoenix Contact Electronic Housing Enclosure Type ME Series , 99 x 45 x 114.5mm, Polyamide DIN Rail Enclosure RS 제품 번호 648-7784 제조사 부품 번호 2713706 개당 ₩30,587.60 주문수량	Phoenix Contact	Electronic Housing	Polyamide	-	99mm	-	99 x 45 x 114.5mm	45mm	114.5mm	32	Grey	ME	-40°C	+105°C	-	-	-
Phoenix Contact Upper Housing Enclosure Type, Polyamide Electronic Housing RS 제품 번호 240-7251 제조사 부품 번호 1209364 개당가격(6개가 1팩안에) ₩119,543.56 주문수량	Phoenix Contact	Upper Housing	Polyamide	Enclosure	109.8mm	-	-	-	-	-	-	-	-	-	-	-	-
Phoenix Contact DIN Rail Enclosure Enclosure Type ME MAX 35 LC 2-2 KMGY VPE1 Series , 35 x 114.5mm, Polyamide RS 제품 번호 858-6470 제조사 부품 번호 2201324 개당 ₩17,465.20 주문수량	Phoenix Contact	DIN Rail Enclosure	Polyamide	-	99mm	-	35 x 114.5mm	35mm	114.5mm	-	Grey	ME MAX 35 LC 2-2 KMGY VPE1	-	-	-	-	-
Phoenix Contact DIN Rail Housing Enclosure Type BC Series , 161.6 x 89.7 x 60.7mm, Polycarbonate DIN Rail Enclosure RS 제품 번호 287-7703 제조사 부품 번호 1311012 개당 ₩60,737.16 주문수량	Phoenix Contact	DIN Rail Housing	Polycarbonate	Vented Enclosure Kit	161.6mm	-	161.6 x 89.7 x 60.7mm	-	-	-	-	BC	-	-	-	-	-
Phoenix Contact DIN Rail Enclosure Enclosure Type ME MAX 45-SF G 2-2 KMGY Series , 85 x 45 x 70.4mm, Polyamide RS 제품 번호 858-6600 제조사 부품 번호 2869375 10 박스 1개 ₩250,340.80 주문수량	Phoenix Contact	DIN Rail Enclosure	Polyamide	-	85mm	-	85 x 45 x 70.4mm	45mm	70.4mm	32	Grey	ME MAX 45-SF G 2-2 KMGY	-40°C	-	-	-	-
