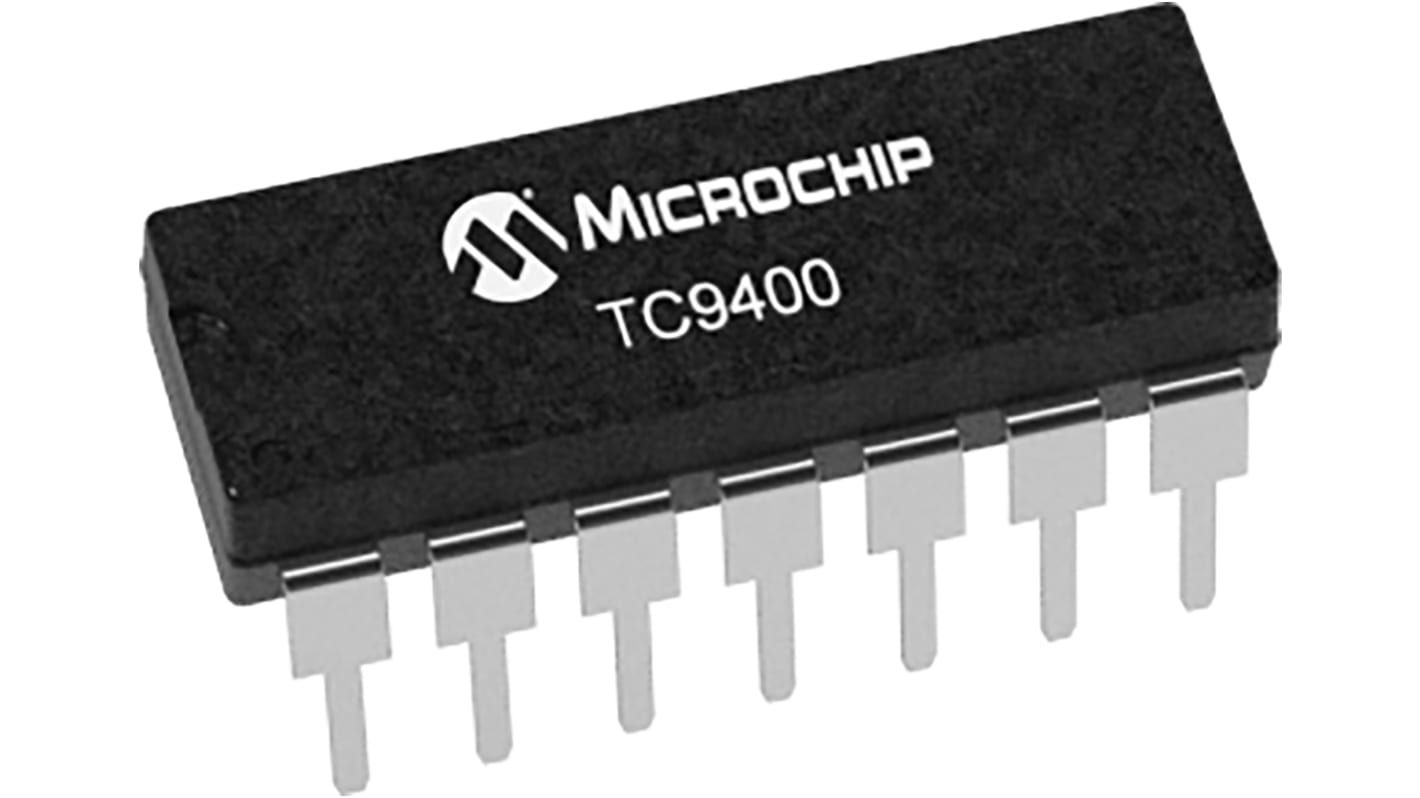

TC9400COD, Voltage-to-Frequency Converter, Voltage, 100kHz 0.05 %FSR @ 10 kHz, 14-Pin SOIC

본 제품군 열람하기
대량 구매 할인 기용 가능

Subtotal (1 tube of 57 units)*

₩865,959.96

Add to Basket
수량 선택 또는 입력
마지막 RS 재고
  • 최종적인 57 개 unit(s)이 배송 준비 됨
수량
한팩당
Per Tube*
57 - 57₩15,192.28₩865,928.00
114 - 513₩14,861.40₩847,099.80
570 +₩13,374.32₩762,388.88

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
177-9688
제조사 부품 번호:
TC9400COD
제조업체:
Microchip
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Microchip

Converter Function

VFC/FVC

Converter Type

Voltage

Full Scale Frequency

100kHz

Linearity Error

0.05 %FSR @ 10 kHz

Power Supply Type

Single

Typical Single Supply Voltage

8 → 15 V

Typical Dual Supply Voltage

±4 to ±7.5V

Mounting Type

Surface Mount

Package Type

SOIC

Pin Count

14

Dimensions

8.65 x 3.9 x 1.5mm

Height

1.5mm

Length

8.65mm

Maximum Operating Temperature

+70 °C

Width

3.9mm

Minimum Operating Temperature

0 °C

The TC9400/TC9401/TC9402 are low-cost voltage-to-frequency (V/F) converters utilizing low power CMOS technology. The converters accept a variable analog input signal and generate an output pulse train whose frequency is linearly proportional to the input voltage. The devices can also be used as highly-accurate frequency-to-voltage (F/V) converters, accepting virtually any input frequency waveform and providing a linearly-proportional voltage output. A complete V/F or F/V system only requires the addition of two capacitors, three resistors, and reference voltage.

Choice of Guaranteed Linearity:
TC9401...............0.01%
TC9400...............0.05%
TC9402...............0.25%
DC to 100 kHz (F/V)or 1Hz to 100kHz (V/F)
Low Power Dissipation: 27mW Typ
Single/Dual Supply Operation: +8V to +15V
or ± 4V to ± 7.5V
Gain Temperature Stability: ± 25 ppm/°C Typ.
Programmable Scale Factor

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
