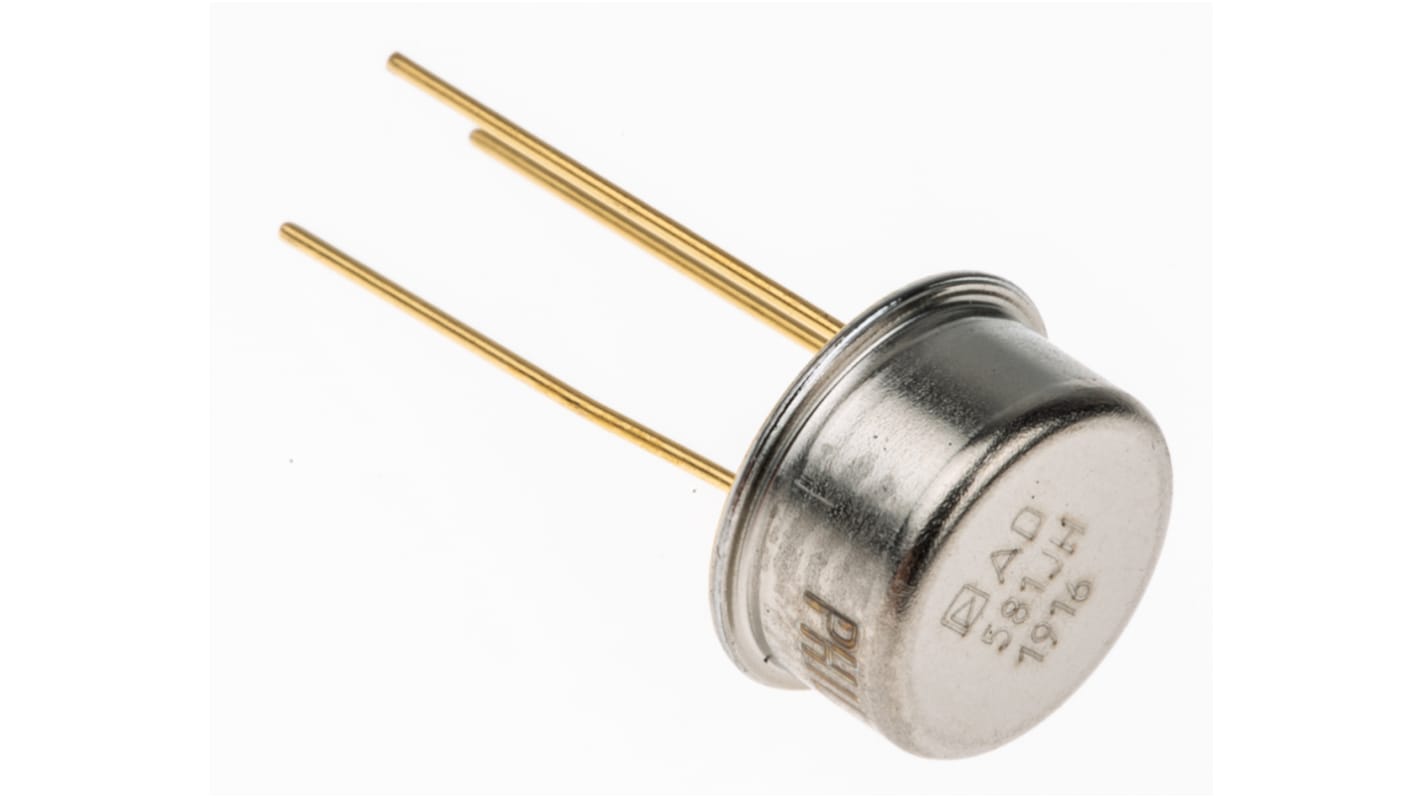

Analog Devices Fixed Series Voltage Reference 10V ±0.3 % 3-Pin TO-5, AD581JH
- RS 제품 번호:
- 411-589P
- 제조사 부품 번호:
- AD581JH
- 제조업체:
- Analog Devices
단종
- RS 제품 번호:
- 411-589P
- 제조사 부품 번호:
- AD581JH
- 제조업체:
- Analog Devices
제정법과 컴플라이언스
비준수
제품 세부 사항
Voltage Reference, 10V, Analog Devices
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Voltage References, Analog Devices
Precison Fixed and Adjustable Voltage Reference ICs utilsing series, shunt or series/shunt topologies and available in both through-hole and surface mount packages. Voltage References are available with initial accuracies of ±0.02 to ±2%.
사양
속성 | 값 |
|---|---|
| Nominal Voltage | 10V |
| Package Type | TO-5 |
| Reference Type | Fixed |
| Initial Accuracy | ±0.3 % |
| Mounting Type | Through Hole |
| Topology | Series |
| Maximum Output Current | 10mA |
| Maximum Input Voltage | 40 V |
| Pin Count | 3 |
| Line Regulation | 0.005 %/V |
| Load Regulation | 500 μV/mA |
| Dimensions | 9.4 x 9.4 x 4.7mm |
| Width | 9.4mm |
| Height | 4.7mm |
| Length | 9.4mm |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
