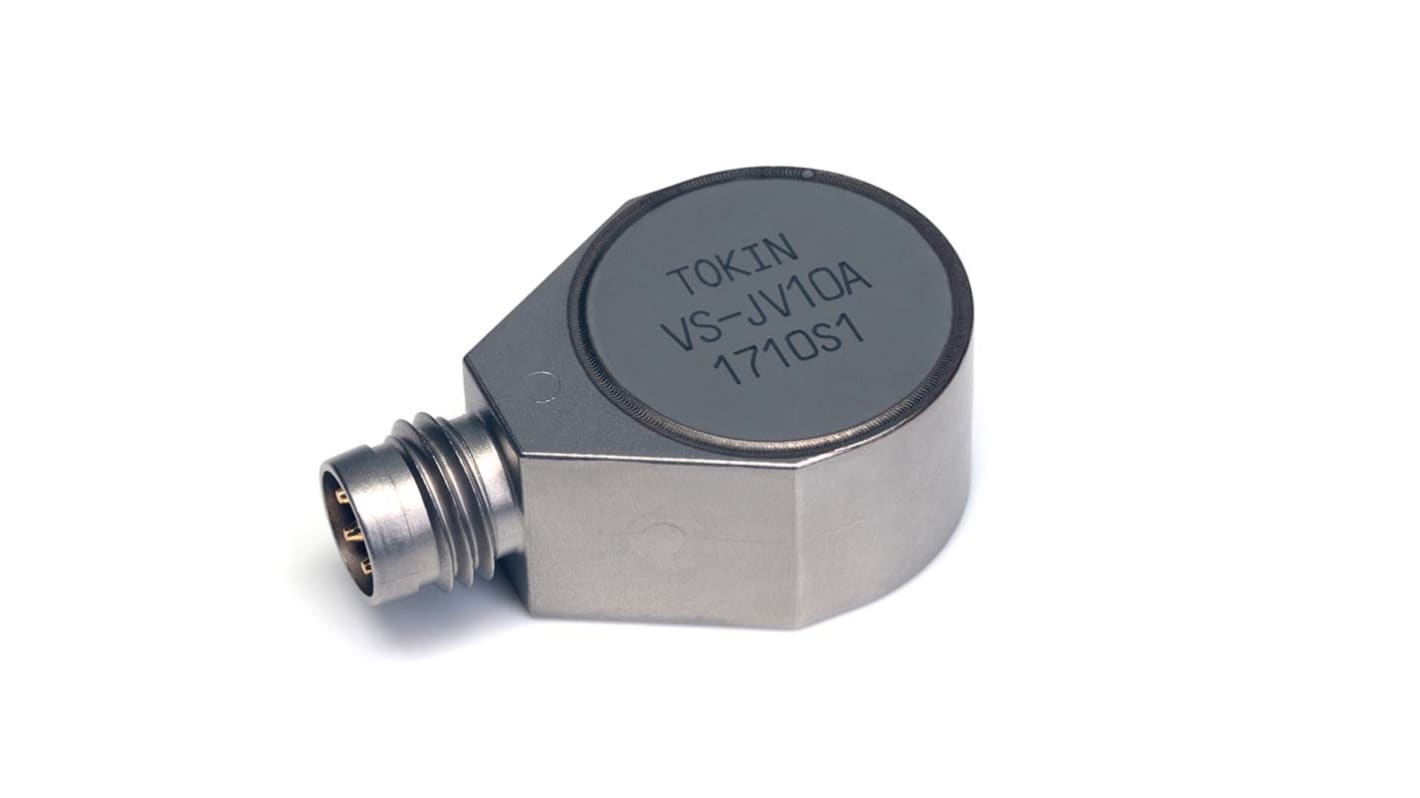

KEMET Vibration Sensor, ±50m/s² Max, 600 μA Max, 5.5V Max, -25°C → +85°C
- RS 제품 번호:
- 205-5819
- 제조사 부품 번호:
- VS-JV10A-K02
- 제조업체:
- KEMET
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩911,311.20
현재 액세스할 수 없는 재고 정보
수량 | 한팩당 |
|---|---|
| 1 - 1 | ₩911,311.20 |
| 2 - 9 | ₩893,094.00 |
| 10 + | ₩875,234.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 205-5819
- 제조사 부품 번호:
- VS-JV10A-K02
- 제조업체:
- KEMET
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | KEMET | |
| Maximum Shock / Vibration | ±50m/s² | |
| Maximum Current | 600 μA | |
| Maximum DC Voltage | 5.5V | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +85°C | |
| Dimensions | 18 x 11 mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 KEMET | ||
Maximum Shock / Vibration ±50m/s² | ||
Maximum Current 600 μA | ||
Maximum DC Voltage 5.5V | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +85°C | ||
Dimensions 18 x 11 mm | ||
- COO (Country of Origin):
- JP
The Kemet VS vibration sensors can detect vibrations in a wide frequency range from 10 Hz up to 15 kHz, through the effective conversion of vibrations to electrical signal by utilizing proprietary optimized piezo ceramic material and original vibration amplifying design. As no amplifier is required, it makes it very easy to embed. Its ability to detect even the faintest levels of vibration throughout a large sensing bandwidth makes it ideal for predictive maintenance and process control operations in industrial IoT, allowing for correction and data analysis flow to PLC, micro-computer or analysers.
Proprietary piezo ceramic material
High sensitivity
Large sensing bandwidth
Built-in amplifier
High sensitivity
Large sensing bandwidth
Built-in amplifier
