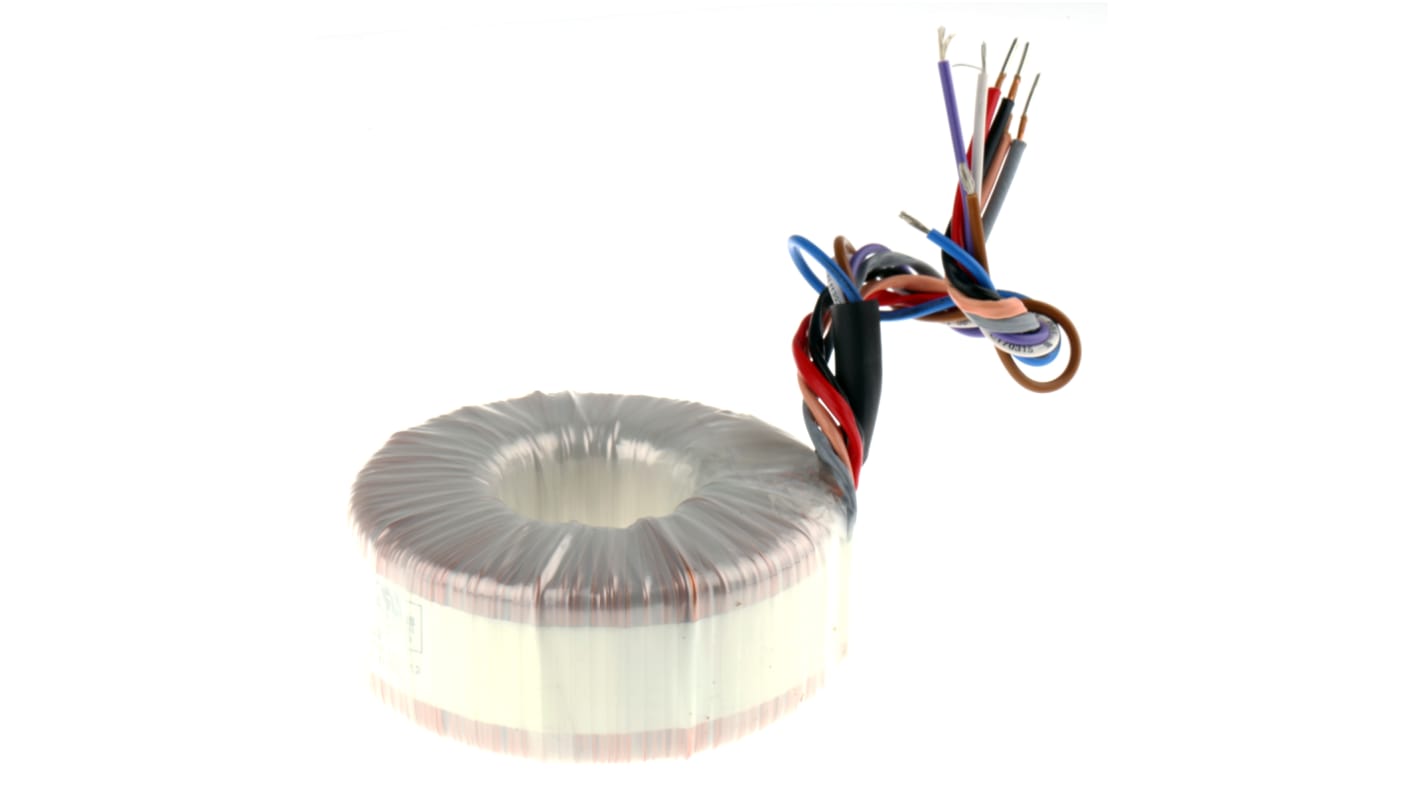

Block 115 V ac, 230 V ac, 2 x 24V ac Toroidal Transformer, 200VA 2 Output
- RS 제품 번호:
- 752-9319
- 제조사 부품 번호:
- RKD 200/2x24
- 제조업체:
- Block
- RS 제품 번호:
- 752-9319
- 제조사 부품 번호:
- RKD 200/2x24
- 제조업체:
- Block
제정법과 컴플라이언스
- COO (Country of Origin):
- DE
제품 세부 사항
RKD Toroidal Transformers dual 115Vac input
High quality open style toroidal transformers with dual 115Vac 50/60Hz primary and secondary windings which may be connected in series or parallel or used independently.
Small size and low weight compared with traditional stacked lamination types
Extremely low level of radiated magnetic field
Very low induced noise (hum)
Very low iron loss
Supplied with mounting kit
Insulation Class B
Extremely low level of radiated magnetic field
Very low induced noise (hum)
Very low iron loss
Supplied with mounting kit
Insulation Class B
Supplied with
Mounting Kit
사양
속성 | 값 |
|---|---|
| Primary Voltage Rating | 115 V ac, 230 V ac |
| Secondary Voltage Rating | 2 x 24V ac |
| Power Rating | 200VA |
| Number of Outputs | 2 |
| Weight | 2.2kg |
| Diameter | 114mm |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| Termination Type | Leads |
| Maximum Temperature | +40°C |
